Chapter5ServiceConguration

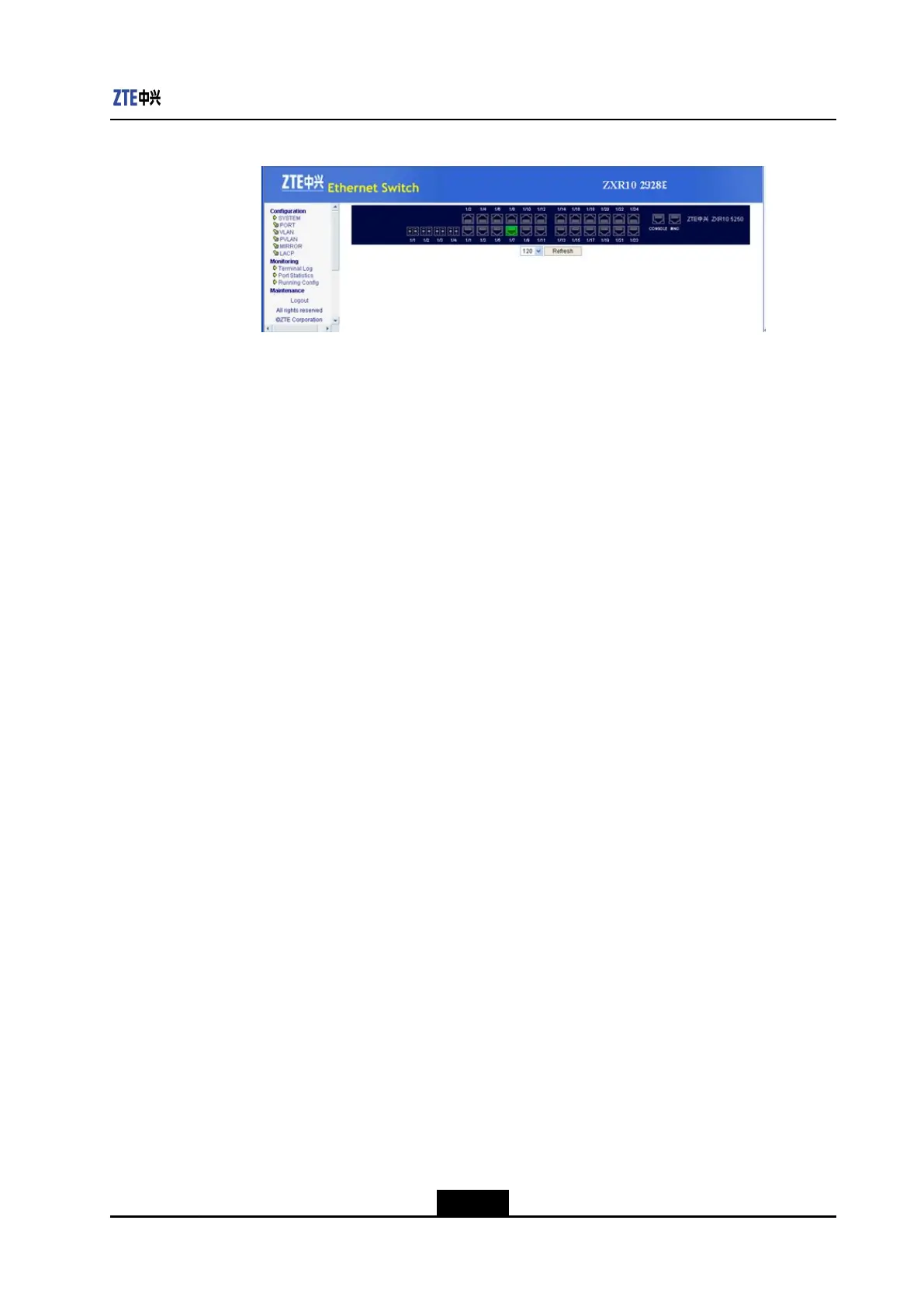

Figure5-67MainPageforWeb-BasedManagement
5.48ERPSConguration
ERPSOverview
TheERPSmechanismisasfollows:
lWhenthenetworkisaringnetworkthatisoperatingproperly,somelinksinthenetwork
areblockedtopreventloopsbetweenswitches.
lIfthenetworkbecomesfaulty,thebackuplinksareunblockedtoprotecttheinter-node
communication.
ThebasicconceptsinERPSareasfollows:
lRPL
AnRPLisalinkblockedtopreventaloopinthecaseofnofaultorrequest.
lRPLownernode(RPLprimarynode)
AnRPLownernodeisanodeonanRPL.ItisusedtoblocktheportthathasRPL
enabled.
lRPLneighbornode(RPLneighbornode)
AnRPLneighbornodeisusedtoblockoneendofanRPL.TheotherendoftheRPL
isblockedbytheRPLownernode.
lManualswitchingcommands
TheERPSprotocolsupportstriggeringtheprotocolcalculationbyusingmanual
switchingcommands:ForcedSwitch(FS)andManualSwitch(MS).
lWTRtimer
Inrevertivemode,theWTRtimerisusedtopreventthefrequentoperationofthe
protectionswitchduetoanintermittentdefect.
lWTBtimer
Whenthecorrespondingfunctionofthedeviceisrestoredafteranoperationcommand
(suchastheFSorMScommand)isexecuted,thedelaytime(calledWTBtime,guard
timertimeplusveseconds)mustbesetlongenoughtoreceivepotentialFS,SF ,or
MSrequestsfromtheremoteend.ThistimeislongenoughforanEthernetring
5-171
