Zte ZXR10 2900E Series - Configuring Automatic Saving of a Configuration File; Figure 4-7 Network Architecture for Automatic Configuration File Download; Figure 4-8 Network Structure for Automatic Configuration File Upload

ZXR102900ESeriesCongurationGuide

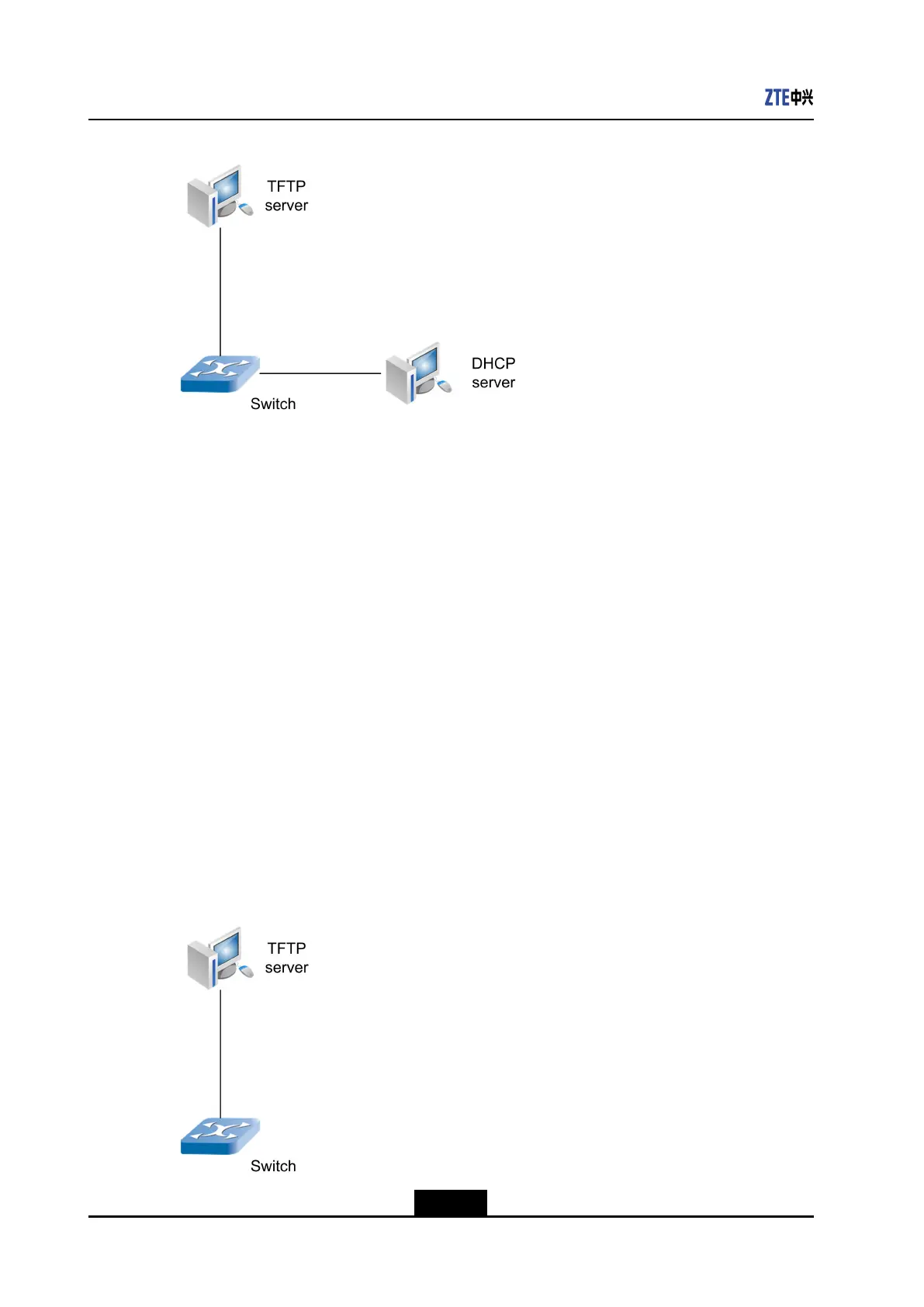

Figure4-7NetworkArchitectureforAutomaticCongurationFileDownload
ThenetworkarchitectureisshowninFigure4-7.SettheTFTPserveraddressandversion
lenameontheDHCPserver.Forexample,settheTFTPserveraddressto10.40.89.78,
andthelenameto*.dat@zImage.Afterbeingpoweredon,theswitchdownloadsZXR10
2918E.dat(assumingthatthedevicetypeisZXR102918E)andzImagefromtheTFTP
server.Afterdownloadingthelessuccessfully,theswitchisrestartedautomatically.
4.7ConguringAutomaticSavingofaConguration
File
Thefunctionofautomaticsavingofacongurationlehelpsyoutouploadtheswitch
congurationtotheback-endserver.
Theuploadedcongurationlesincludestartrun.datandtoPmac.dat.Whenthe
timesetbyperiodiscounteddownto0,theswitchuploadsthestartrun.datletothe
TFTPserveratalocaltimebetween00:00and00:01,anduploadsthetoPmac.datle
afteroneminute.Theautomaticallyuploadedlesarestoredintheflashsub-folderin
thetheupload/downloaddirectoryconguredbytheTFTPserver.Thenamesofthe
lesrespectivelyarestartrunmm_dd_yy.datandtoPmacmm_dd_yy.dat,where
“mm”,“dd”,and“yy”indicatethedateonwhichtheuploadoccurs.
Figure4-8NetworkStructureforAutomaticCongurationFileUpload
