HARDWIRED LOOPS
Hardwiredloopscanbeprogrammedeither
normallyopen(N/O)ornormallyclosed(N/C).End‐
of‐lineresistors(EOLR)canalsobeusedto
supervisetheloops.Onlycontactsshouldbeused
withthehardwiredloops.TheControlPaneldoes
notsupportpoweringexternaldevices(PIR’s,etc.).
NOTE: Hardwiredloopscannotbeusedfora
COorFiresensorloop.
1 Ifeitherofthetwohardwiredloopsaregoing
tobeused,installthecontactsandroutethe
loopwiretotheControlPanel’swallcutout.
2 Ifend‐of‐linesupervisionisrequiredforthe
loop,installa2.2Kohmresistor(notsupplied)as
showninthefollowingillustration.

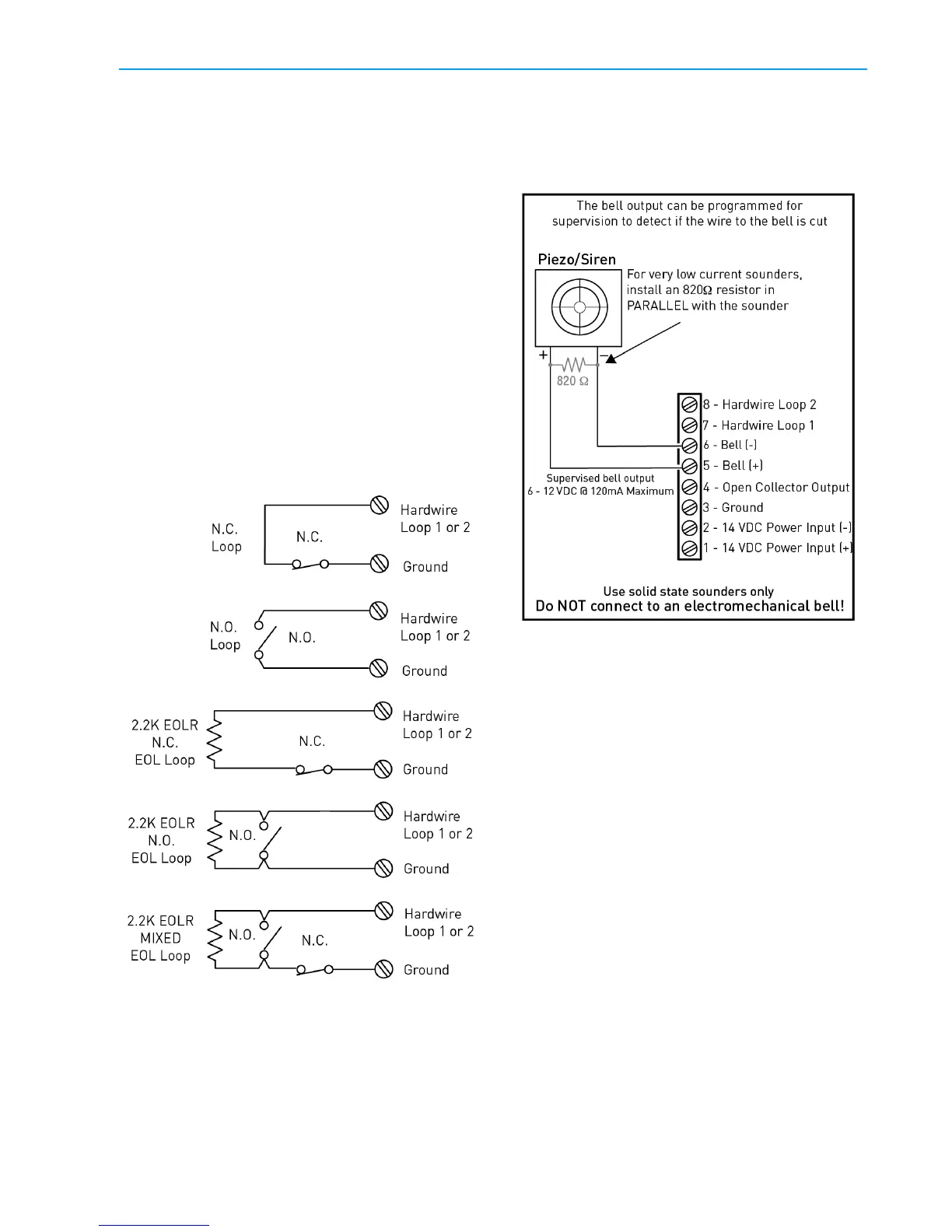

Hardwire Loop Wiring
Hardwirelo
opsnee
dtobeprogrammedforcontact
type.
WARNING: Strandedconductorsclamped
underwire‐bindingscrewsorsimilarparts
shallhavetheindividualstrandssoldered
togetherorarrangedinaconstruction
thathasbeendeterminedtobethe
equivalent.
REMOTE ALARM SOUNDER
TheControlPanelprovidestwoterminalsforan
optionalconnectiontoaremoteelectronicalarm
sounder.
WARNING: DONOTconnectan
electromechanicalbelltotheseterminals.
Damagetotheoutputwilloccur.
Thebellterminalsca
nbesupervised.Ifsiren
supervisionisenabled(Q‐21),andthewire
betweentheControlPanelandsounderiscut,the
ControlPanelindicatesatroublealertforsiren
supervisionandreportsbelltroubletotheCentral
Station.
1 Installtheremotesounderinasecurelocation
whereitcaneasilybeheard.
2 Routewiringfromtheremotesounder
locationtotheControlPanel’ swallcutout.
NOTE: Ifthepiezoalarmsirenusedfora
remotesounderhasanextremelylow
currentdraworthesounderproduces
humornoise,installan820Ωresistorin
parallelwiththesounder.
SOLID STATE OUTPUT
TheControlPanelprovidesonesolidstateoutput
thatcanbeprogrammedtoactivateduringvarious
conditions.Theoutputcanswitchupto250mA@
16VDCtoground.
