Installation and Maintenance Manual - Aastra 5000 AMT/PTD/PBX/0058/4/6/EN
Description des sous-ensembles 01/2011 Page 159
4.5.3 Hardware and software configuration
This card does not require any hardware or software configuration.
4.5.4 Installation and wiring
The RUCV-D card can be hot-plugged/removed in an operational AXD iPBX.
Warning: After a switchover the duration of which depends on the configuration
(15 s. to 1 min.), the passive CPU card takes over and becomes active in
the following three cases:
• If the active card is removed
• If the active card remains idle for 2 minutes
• If a hardware failure is detected on the active UCV-D card (in this
case, a hardware fault detection is performed. The unavailability time
on the cabinet can, therefore, be up to 3 minutes).
Conncting an RUCV-D card to a UCV-D card requires a specific cable supplied with the
expansion cabinet (see cabinet reference in Section 7.2.7.7 ).
For a duplex configuration comprising one or two expansion cabinets, a second RUCV-D
card must be added to each expansion cabinet. A cable for connecting a main cabinet is
provided with each RUCV-D card (see RUCV-D reference in Tableau 7.1 ).
A colour code is indicated at the back of the AXD cabinets to facilitate connection to the
expansion cabinet(s). The XD column shows the connection of cables to the main
cabinet. The 2XD and 3XD columns show the connection of cables to the expansion
cabinets. You only need to follow this code to carry out the wiring operation.

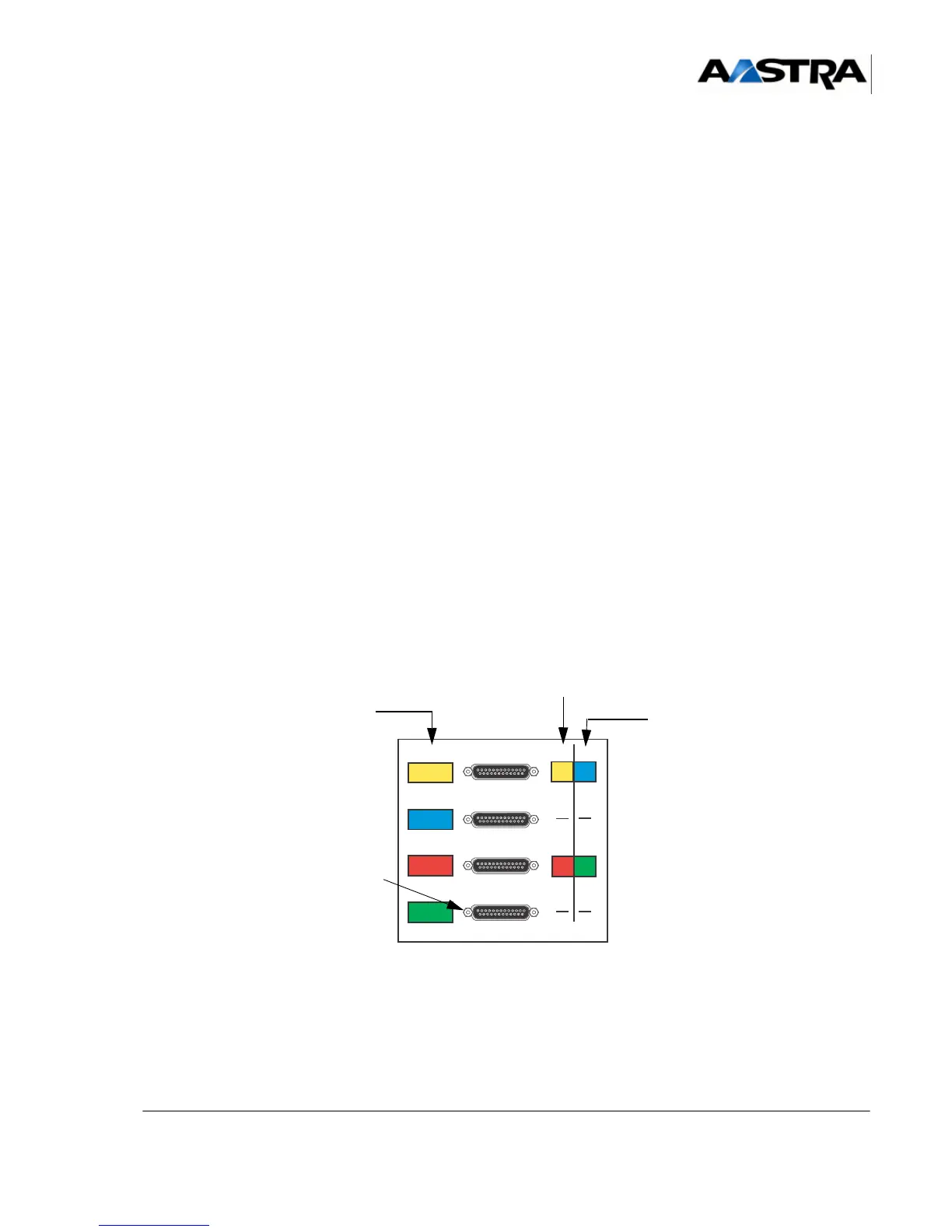

Figure 4.12 C
OLOUR CODE FOR CONNECTION TO THE EXPANSION CABINET(S)
Colour clamps are provided with the cables. Install the clamps on the connection cables,
respecting the colour code.
