AMT/PTD/PBX/0058/4/6/EN Installation and Maintenance Manual - Aastra 5000
Page 232 01/2011 Description des sous-ensembles
4.13.4.4 Hardware configuration
The LT2 card has several configuration switches, described in the following tables.
The CA8 microswitch configures the operating mode, i.e. ISDN (T2/S2) or PCM.
* Represents the microswitch.

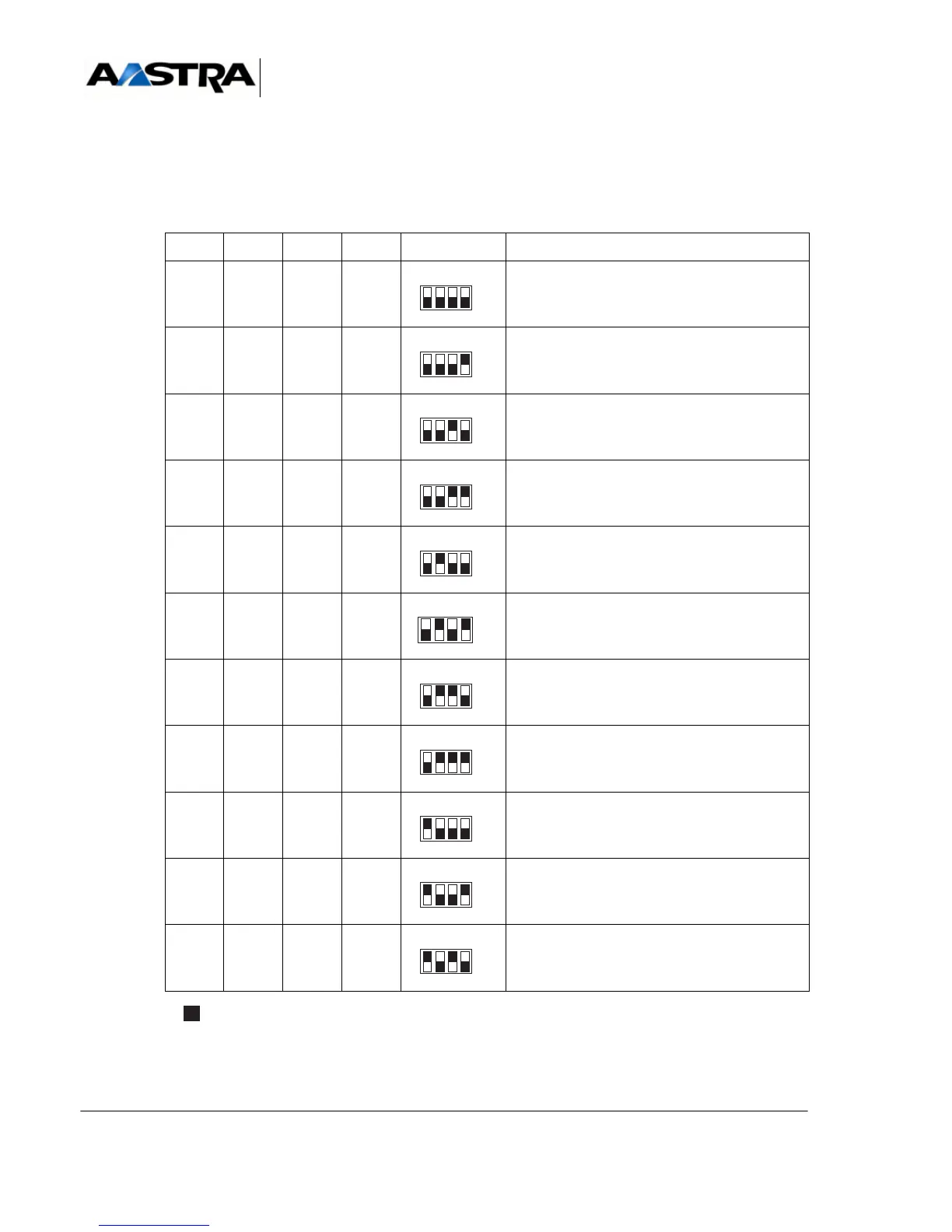

TABLEAU 4.47 CONFIGURATION OF MICROSWITCH CA8 ON THE LT2 CARD (1/2)
CA8.1 CA8.2 CA8.3 CA8.4 CA8 SWITCH PCM TYPE
OFF OFF OFF OFF LT2 card used in T2-S2 mode
at 2 Mbps*
(factory setting)
OFF OFF OFF ON PCM PRI (SF) 0 dB
ISDN T1 at 1.544 Mbps
(export)
OFF OFF ON OFF PCM PRI (SF) 7.5 dB
ISDN T1 at 1.544 Mbps
(export)
OFF OFF ON ON PCM PRI (SF) 15 dB
ISDN T1 at 1.544 Mbps
(export)
OFF ON OFF OFF Extended PCM PRI (ESF) 0 dB
ISDN T1 at 1,544 Mbps
(export)
OFF ON OFF ON Extended PCM PRI (ESF) 7.5 dB
ISDN T1 at 1.544 Mbps
(export)
OFF ON ON OFF Extended PCM PRI (ESF) 15 dB
ISDN T1 at 1.544 Mbps
(export)
OFF ON ON ON PCM (SF) 0 dB
PCM T1 at 1.544 Mbps
(export)
ON OFF OFF OFF PCM (SF) 7.5 dB
PCM T1 at 1.544 Mbps
(export)
ON OFF OFF ON PCM (SF) 15 dB
PCM T1 at 1.544 Mbps
(export)
ON OFF ON OFF Extended PCM (ESF) 0 dB
PCM T1 at 1.544 Mbps
(export)
2
ON
134
ON
2134
2
ON
134
2
ON
134
2
ON
134
ON
2134
2
ON
134
2
ON
134
ON
2134
2
ON
134
2
ON
134
