Installation and Maintenance Manual - Aastra 5000 AMT/PTD/PBX/0058/4/6/EN
Description des sous-ensembles 01/2011 Page 163
• Duplex configuration: (see Figure 4.18 ).
- UCV-D (A) / RUCV-D (A) connection
- Install the red clamps at each end of the AXD-A2XD connection cable.
- Install the green clamps at each end of the AXD-A3XD connection cable.
- UCV-D (B) / RUCV-D (B) connection
- Install the yellow clamps at each end of the AXD-A2XD connection cable.
- Install the blue clamps at each end of the AXD-A3XD connection cable.

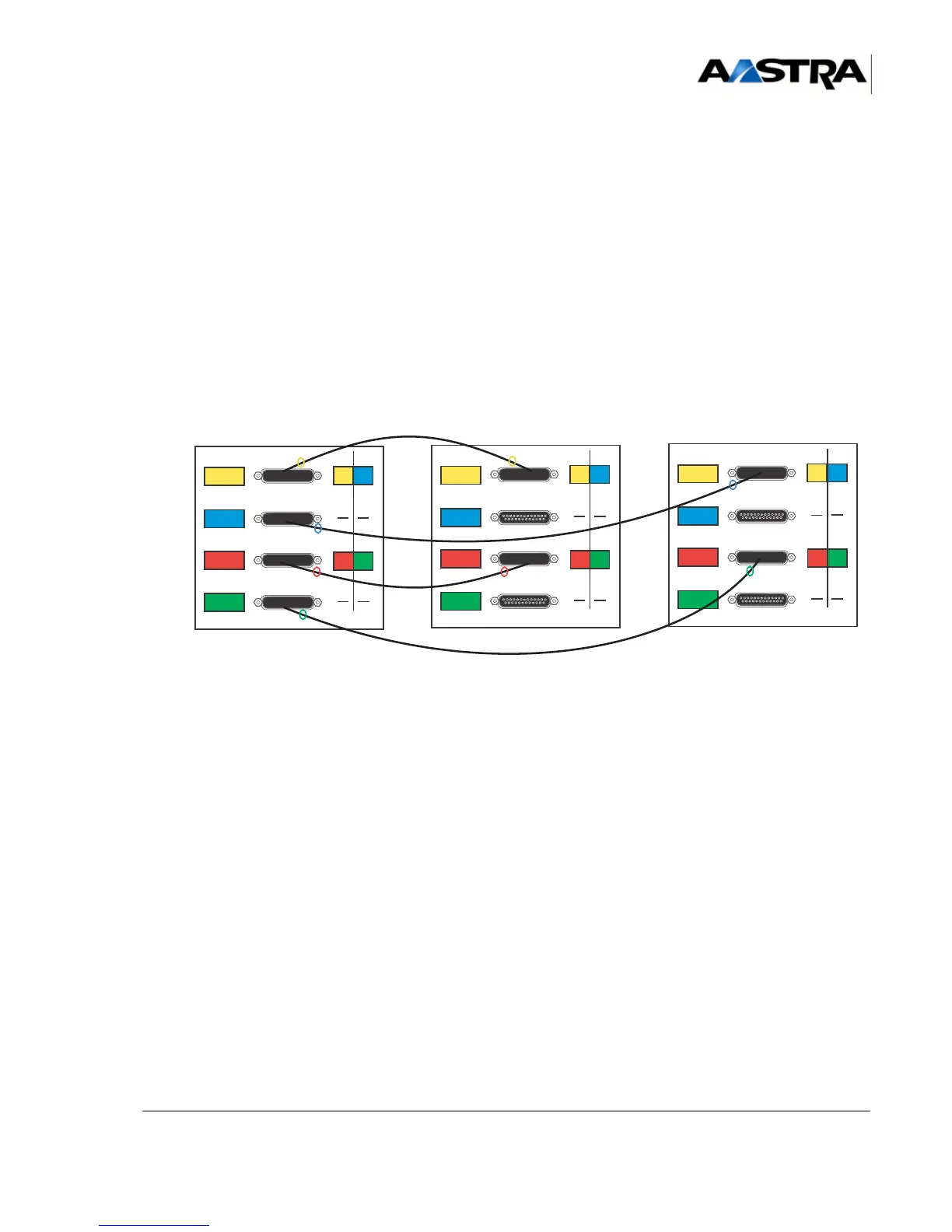

Figure 4.18 C
ONNECTING TWO EXPANSION CABINETS (DUPLEX CONFIGURATION)
