Installation and Maintenance Manual - Aastra 5000 AMT/PTD/PBX/0058/4/6/EN
Description des sous-ensembles 01/2011 Page 233
* The use of T2 or S2 is validated from Aastra Management Portal.
* Represents the microswitch.

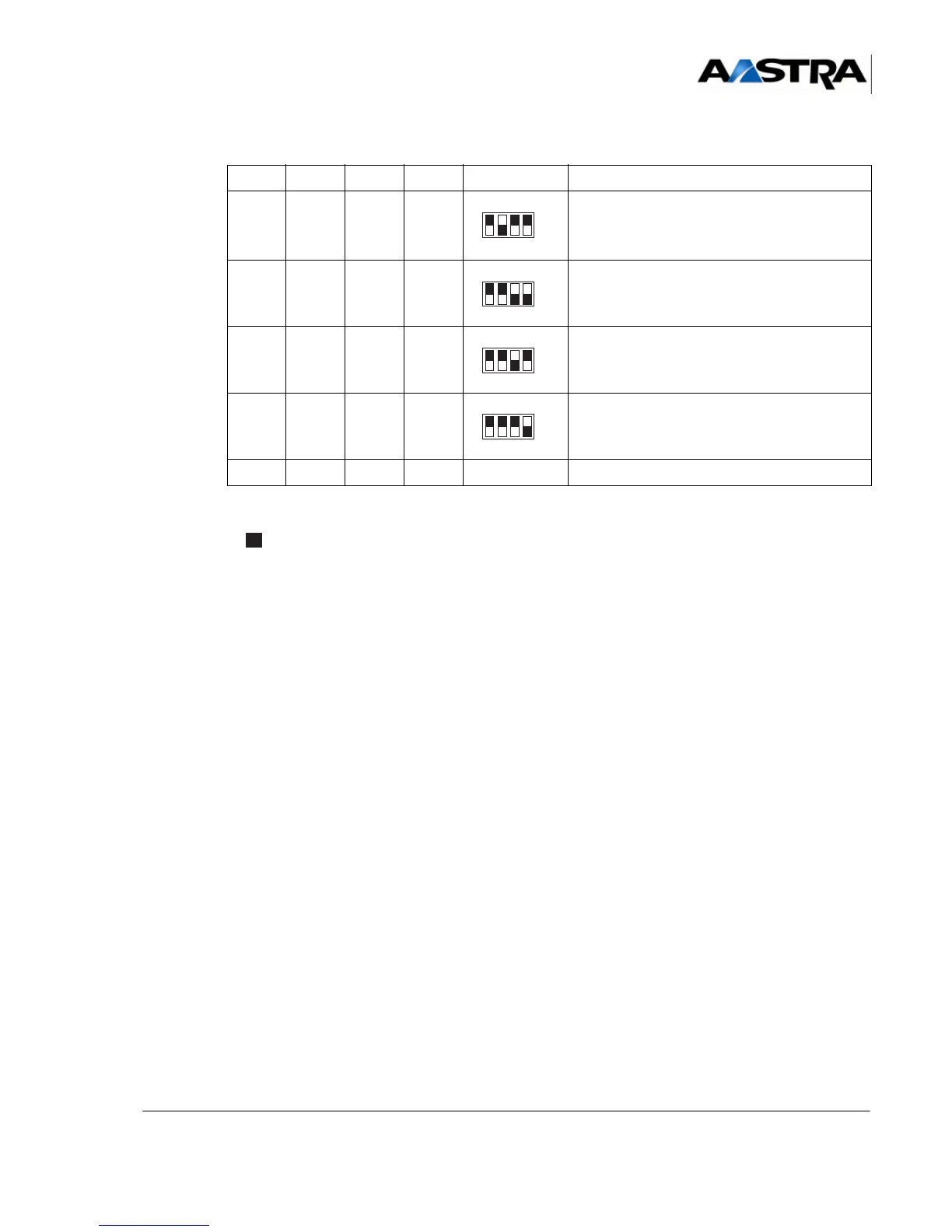

TABLEAU 4.47 Configuration of microswitch CA8 on the LT2 card (2/2)
CA8.1 CA8.2 CA8.3 CA8.4 CA8 SWITCH PCM TYPE
ON OFF ON ON Extended PCM (ESF) 7.5 dB
PCM T1 at 1.544 Mbps
(export)
ON ON OFF OFF Extended PCM (ESF) 15 dB
PCM T1 at 1.544 Mbps
(export)
ON ON OFF ON PCM E2 (32TS) 2 Mbps
ON ON ON OFF T2.E1 ISDN T2/S2 2 Mbps
16TS
ON ON ON ON not used
2
ON
134
2
ON
134
2
ON
134
ON
2134
