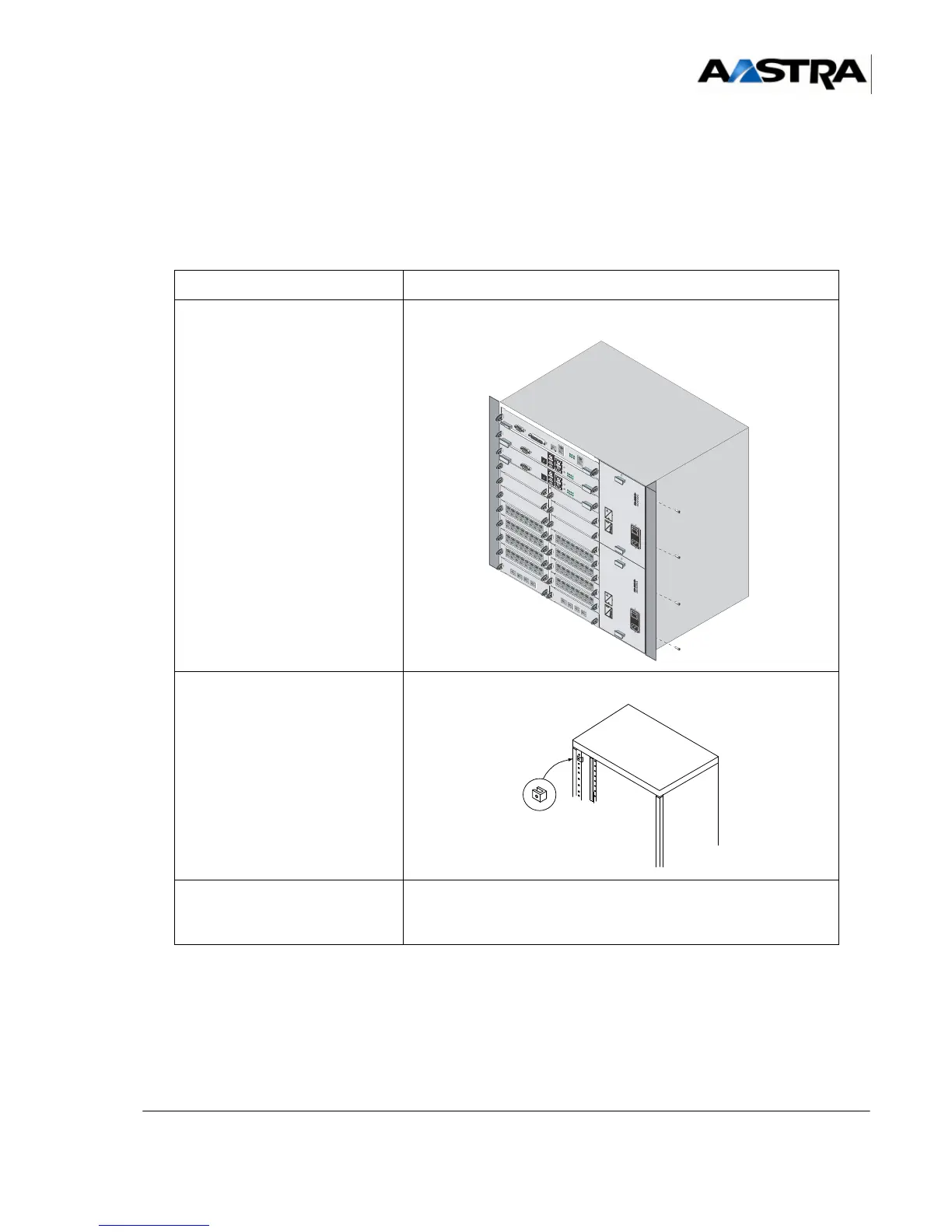

Installation and Maintenance Manual - Aastra 5000 AMT/PTD/PBX/0058/4/6/EN
Installation and activation 01/2011 Page 315
Positioning on a piece of furniture
• Place the cabinet in position.
Installation in a rack
Table 1:
OPERATION DETAILS OF THE OPERATION / COMMENTS
• Fit the securing brackets on
the sides of the cabinets
using the screws supplied (4
per bracket).
• The brackets offer only one mounting option: flush with the
front panel of the rack
• Identify the position in the
rack where the cabinet is to
be installed. On the brackets
on which the cabinet is to be
fitted, install the captive nuts
on the holes selected.
• Lift the cabinet and align the
bracket attachment holes
with those of the rack.
