Installation and Maintenance Manual - Aastra 5000 AMT/PTD/PBX/0058/4/6/EN
Description et caractéristiques d’un PBX 01/2011 Page 47

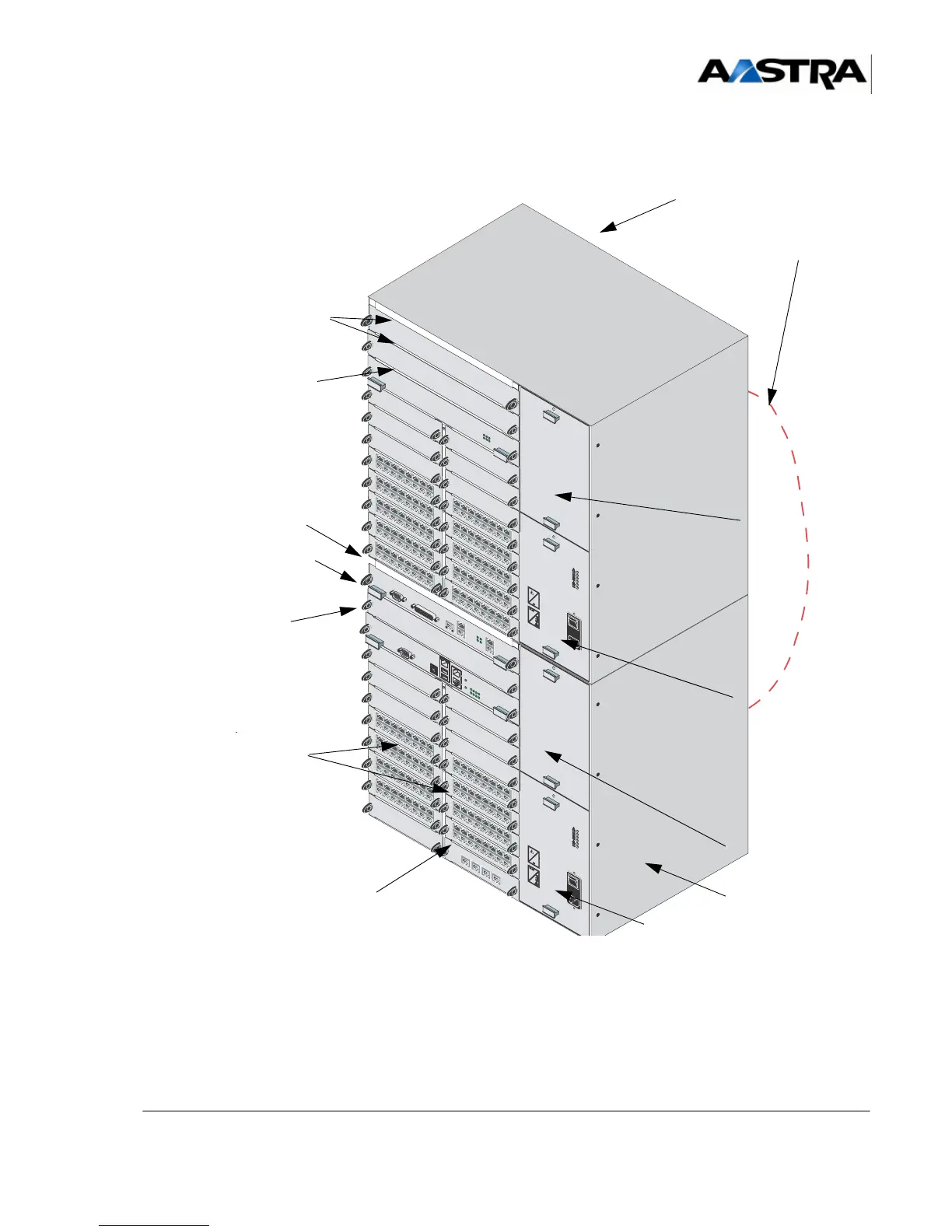

Figure 3.3 OVERVIEW OF AN A2XD CABINET IN SIMPLEX CONFIGURATION
Ventilation module
RUCV-D card (A)
UCV-D card (A)
Expansion cards
Blanking plate
(empty slot)
Blanking plate
(empty slot)
Power supply module
Power supply modul
Ventilation module
Connection cable for AXD-A2XD (A
Expansion cabinet
Main rack
IUCV-D card
BTX card
