ABB OmniCore C30 User Manual

Note/IllustrationAction

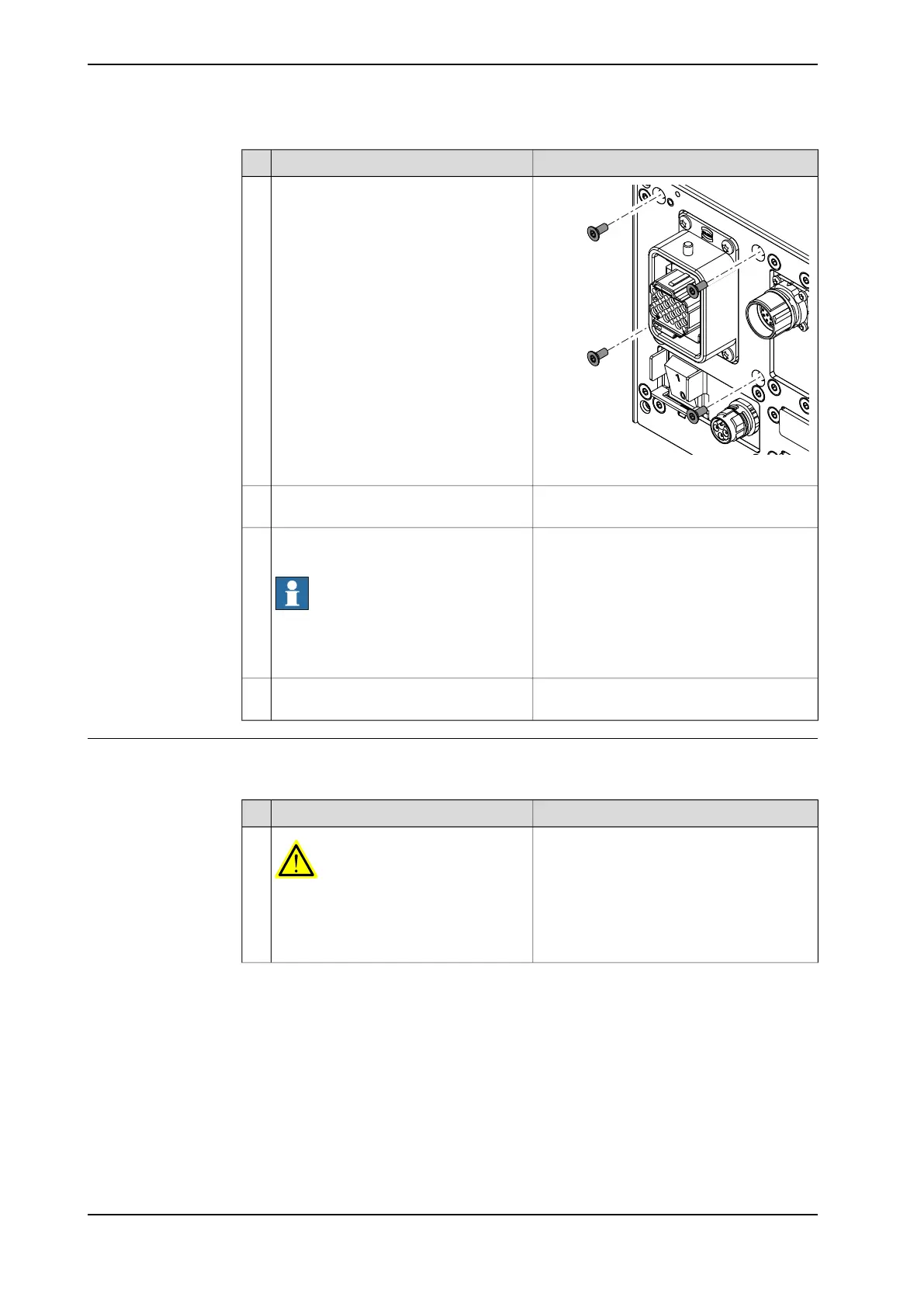

xx1800000729
Remove the attachment screws on the
front panel.
2
Push the motor connector into the cabin-
et.
3
Take the motor connector cable out from
the velcro in the cabinet.
Note
Make records about the sequence that
cables are removed. The cables need to
be installed in the same position.
4
Take the motor connector out from the
upper side.
5
Refitting the motor connector
43
Refitting the motor connector
Note/IllustrationAction
DANGER
Before doing any work inside the cabinet,
disconnect the mains power. For more
information, see Electrical safety on
page 31.
1
43
This procedure is not available for the CRB 15000 controllers.
Continues on next page
420 Product manual - OmniCore C30
3HAC060860-001 Revision: P
© Copyright 2019-2022 ABB. All rights reserved.
5 Repair
5.3.2.1 Replacing the motor connector
Continued
