ABB OmniCore C30 User Manual

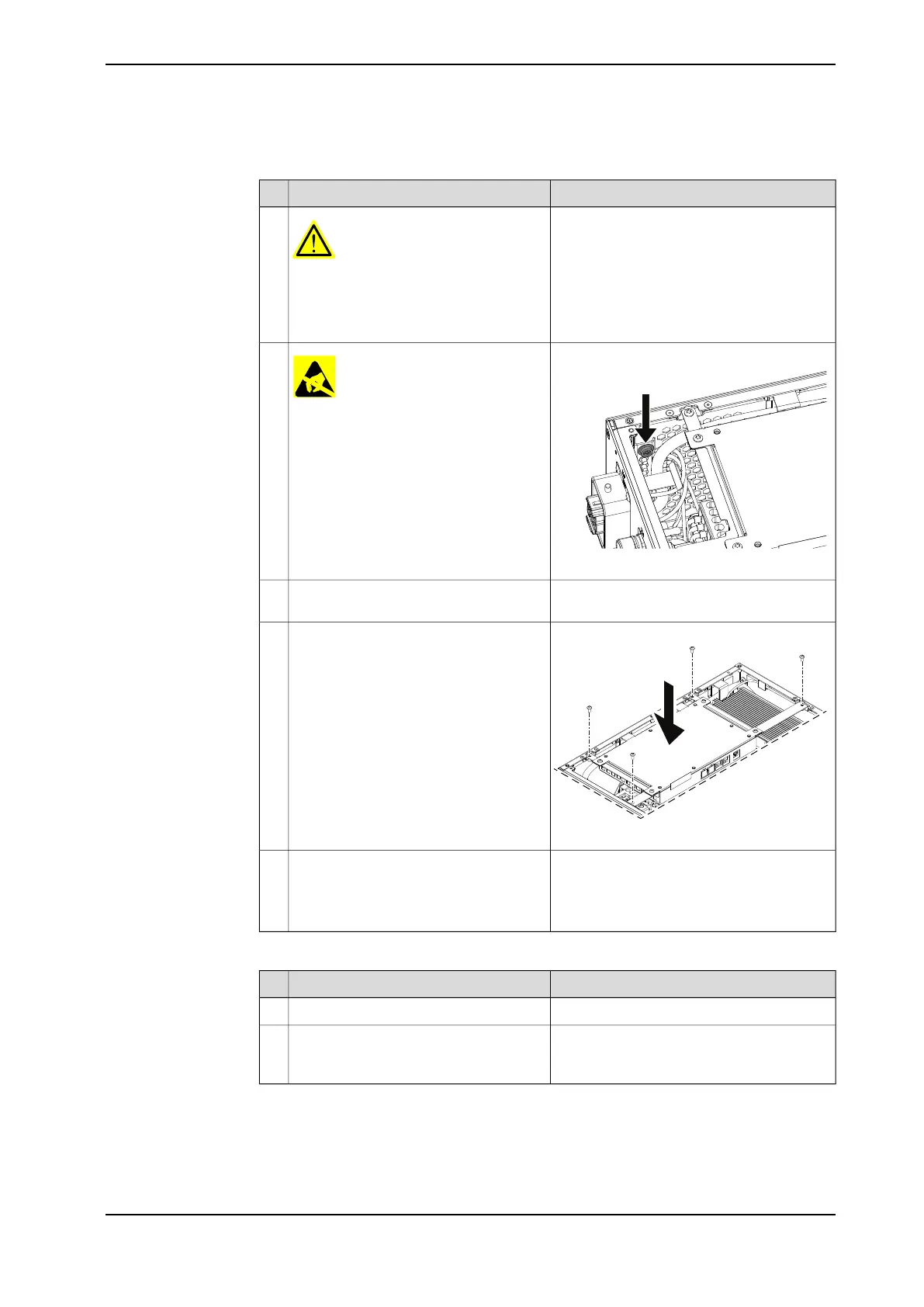

Refitting the axis computer to the frame
Note/IllustrationAction
DANGER
Before doing any work inside the cabinet,
disconnect the mains power. For more
information, see Electrical safety on
page 31.
1
Location of wrist strap button:
xx1800000683
ELECTROSTATIC DISCHARGE
(ESD)
The unit is sensitive to ESD. Before
handling the unit read the safety inform-
ation in section The unit is sensitive to
ESD on page 47.
2
Reconnect:
• K6.X4, K6.X5 - SMB.
3
Screws: Torx pan head screw M4x8 (4 pcs)
xx1900001201
Fit the axis computer bracket and secure
the screws.
4
Reconnect:
• K6.X11 - A1.X3
• K6.X2 - A2.X9
• K6.X1 - K2.X3
5
Concluding procedure
Note/IllustrationAction
Refitting the controller covers on page 227.Refit the covers.1
Perform the function tests to verify that
the safety features work properly, see
Function tests on page 212.
2
Product manual - OmniCore C30 423
3HAC060860-001 Revision: P
© Copyright 2019-2022 ABB. All rights reserved.
5 Repair
5.3.2.1 Replacing the motor connector
Continued
