5.2.16 Replacing the conveyor tracking module (CTM)
Location

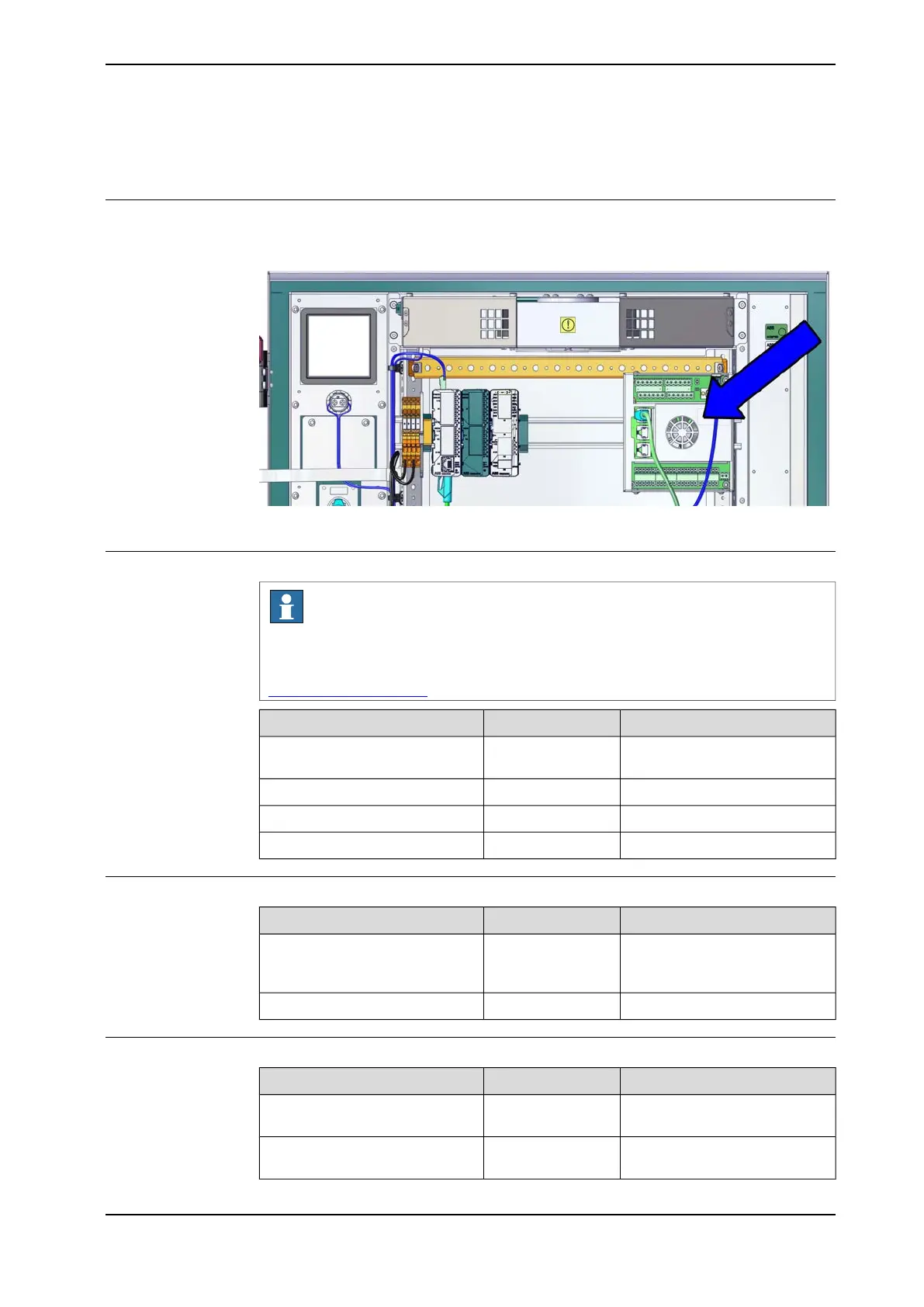

The illustration shows the location of the conveyor tracking module in the controller.
xx2300001840
Required spare parts
Note
The spare part numbers that are listed in the table can be out of date. See the
latest spare parts of the OmniCore V250XT Type B via myABB Business Portal,
www.abb.com/myABB.
NoteArticle numberSpare part
DSQC20003HNA027579-001Conveyor tracking module [3103-
1]
3HNA029345-001CONNECTOR KIT - DSQC2000
Power cable of CTM3HAC084173-001Harness 24V_CTM
3HAC084195-001Ethernet harness for CTM
Required tools and equipment
NoteArticle numberEquipment
Content is defined in section
Standard toolkit for controller on
page 426.
-Standard toolkit
-ESD protective wrist band
Required documents
NoteArticle numberDocument
3HAC074000-008Circuit diagram - OmniCore
V250XT, rev 04 or later
3HAC066561-001Application manual - Conveyor
tracking
Continues on next page
Product manual - OmniCore V250XT Type B 275
3HAC087112-001 Revision: A
© Copyright 2023-2023 ABB. All rights reserved.
5 Repair
5.2.16 Replacing the conveyor tracking module (CTM)
