Program features 25
for low voltage and high voltage grid support. With P1, an offset can be added to the grid
support current.

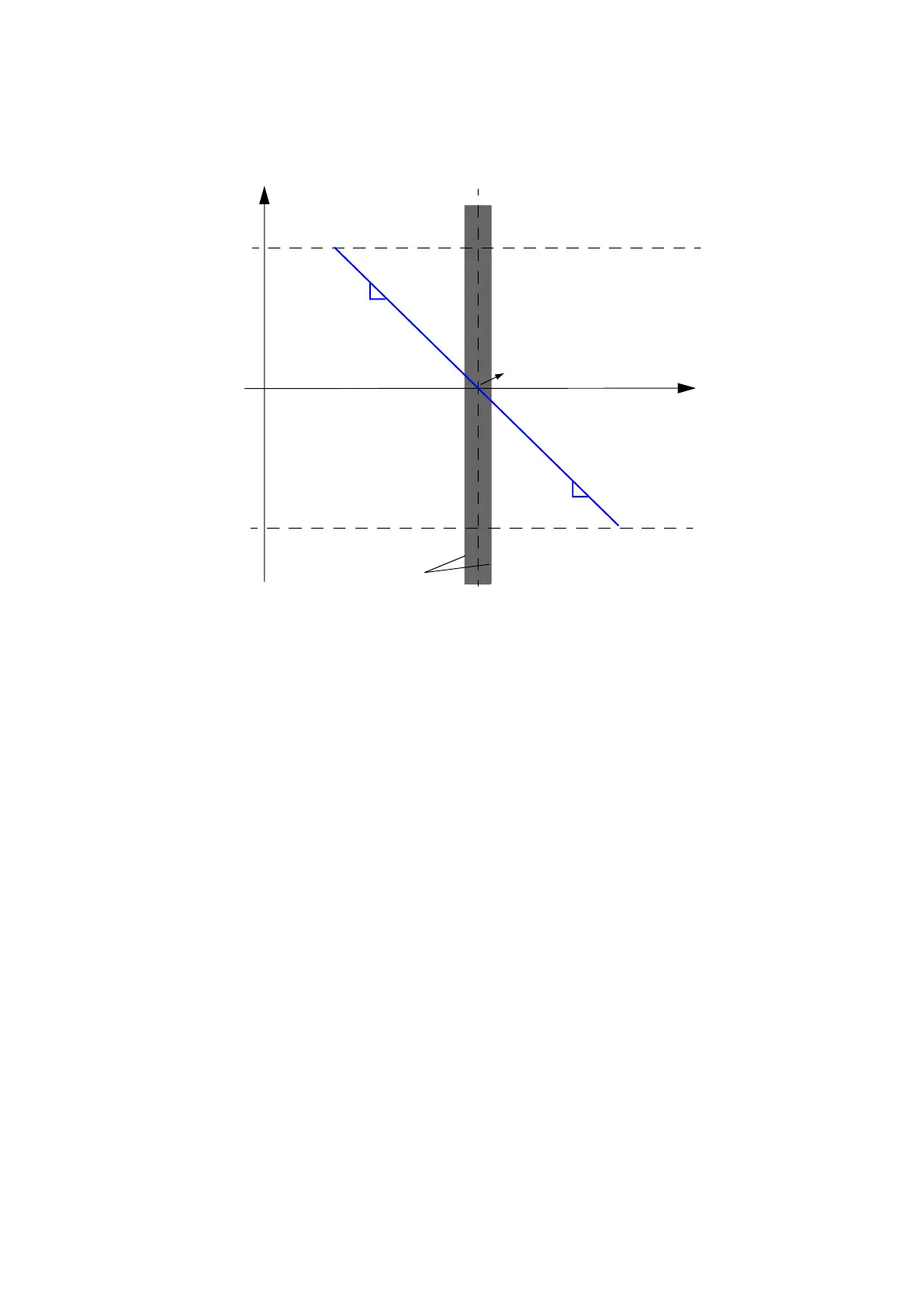

Figure 6. Grid support current curve - K factor mode
I
delta
Low voltage grid support
High voltage grid support
P1
U
Capacitive
Inductive
Dead band
125.05 Lv Gs
K-factor
125.19 Hv Gs
K-factor
125.51 Gs reference voltage
