5-56
CELL-DYN
®
3200 System Operator’s Manual
9140181H—October 2001
Operating Instructions
Set Up Instructions
Section 5

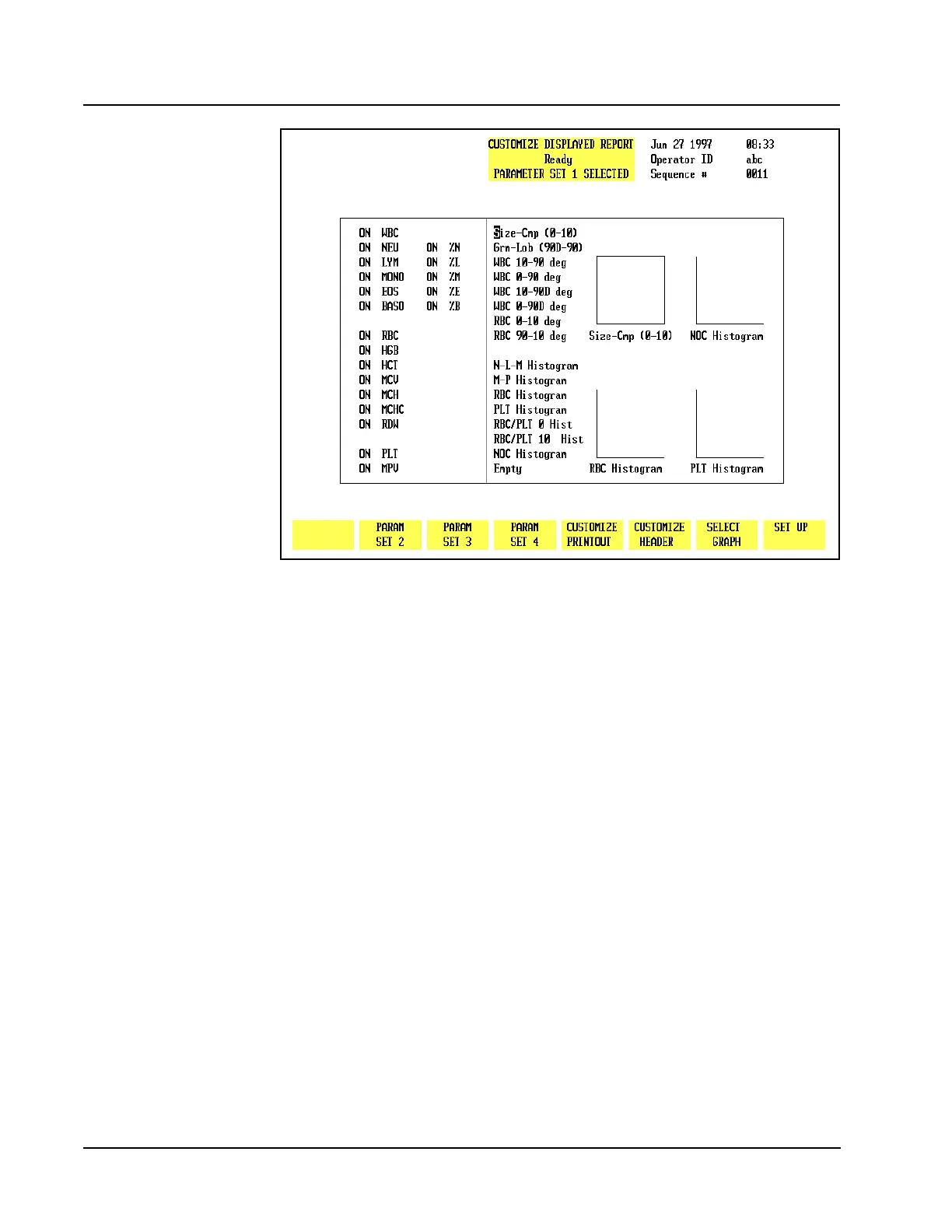

Figure 5.26 Customize Displayed Report Screen
The screen is divided into two sections. Individual parameters are listed in the left
section and the scatterplots and histograms are listed in the right section.
Parameter Sets
Using the [PARAM SET “X”]key, the display may be customized for four different
sets of parameters. Up to 20 individual parameters and up to four scatterplots and/
or histograms may be displayed in each set.
The “Empty” selection at the bottom of the Histogram list may be used to “blank”
the scatterplot or histogram display at the selected position. Move the cursor to
Empty and press [SELECT GRAPH]. Move the cursor to the desired scatterplot or
histogram and press[PLACE GRAPH].
