Use or Function
System Components
Section 1
Data Module Components
The major components of the Data Module are depicted in Figure 1.11. A
description of each component’s function follows.

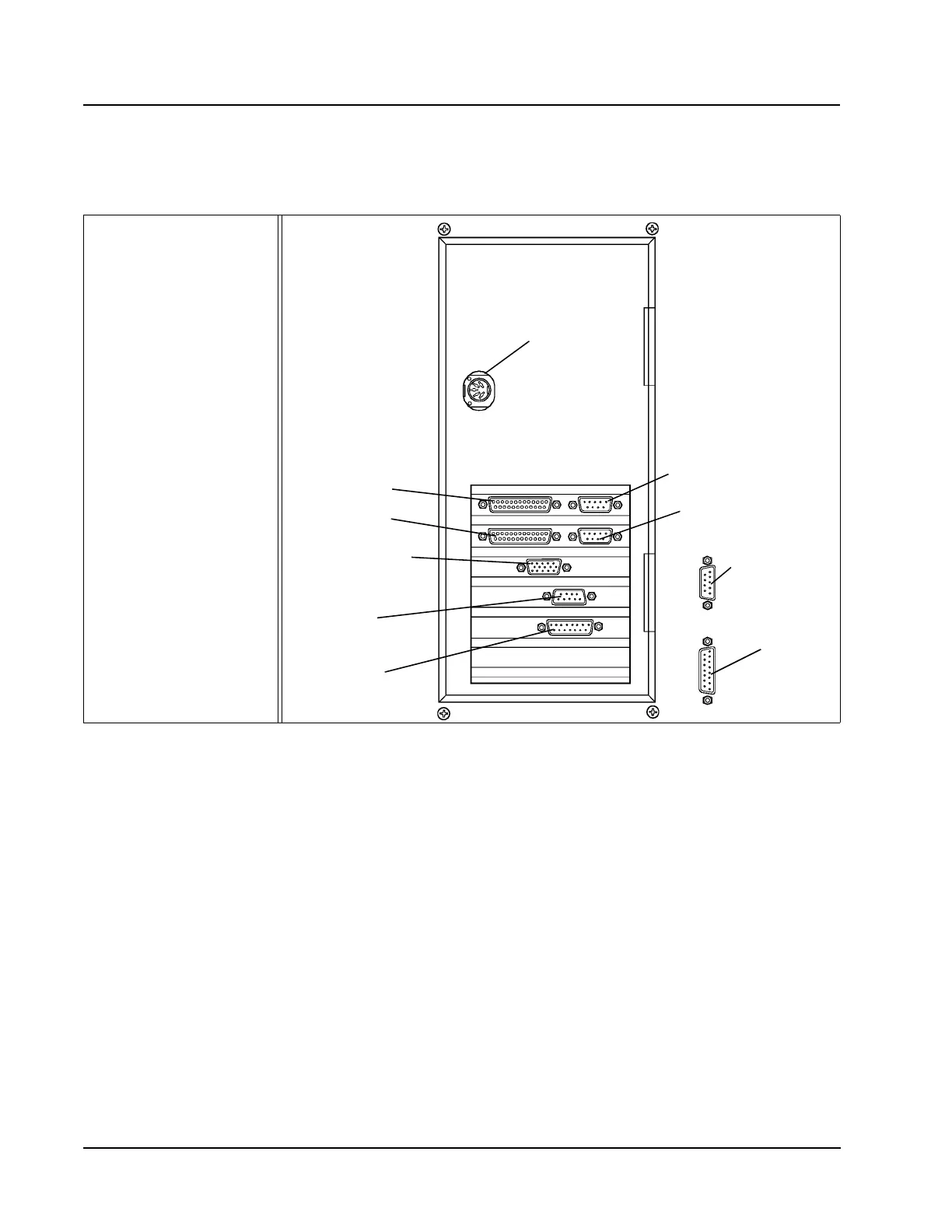

Figure 1.11 Data Module Components - Rear Panel
Computer (inside the Data Module)
• Intel 486DX microprocessor
• 8 megabytes RAM (expandable to 16 megabytes)
• VGA graphics with 1 megabyte cache
• 2 enhanced parallel ports and 2 serial ports
• 2 FIFO UART Com1 and Com2 ports
•3 PCI slots
Data Storage
Data storage consists of a 3.5-inch, 1.4 megabyte Floppy Disk Drive and a one
gigabyte EIDE (enhanced IDE) Hard Disk Drive.
1 PC Keyboard
Connector
2 COM1 (LIS
Connector)
3 COM2 (Unused)
4 Analyzer BDM
Diagnostics (Unused)
5 HSSL Connector
6 HSSL Connector
7 Membrane Keyboard
Interface Connector
8 Display Station
Interface Connector
9 Ticket Printer
Connector
10 Graphics Printer
Connector
1
2
3
4
5
6
7
8
9
10
