Flow Cell Assembly
The Flow Cell Assembly contains the fluidics and hardware needed to
hydrodynamically focus the RBC/PLT and WBC sample streams in the path of the
laser beam for analysis. The primary components of this assembly are:
• Sample Feed Nozzle — a specially designed tube used to deliver the diluted
sample into the sheath stream
• Sample Flow Cell — an optically clear quartz chamber with a central square
opening of a specific size, which flares out into a cone at the bottom of the
flow cell
Laser Optics Bench Assembly
The Laser Optics Bench Assembly (located behind the Flow Panel) contains the
Helium-Neon laser, the flow cell, and the optics and detectors required for
enumeration and differentiation of white blood cells, red blood cells, and platelets
(refer to Figure 1.10).

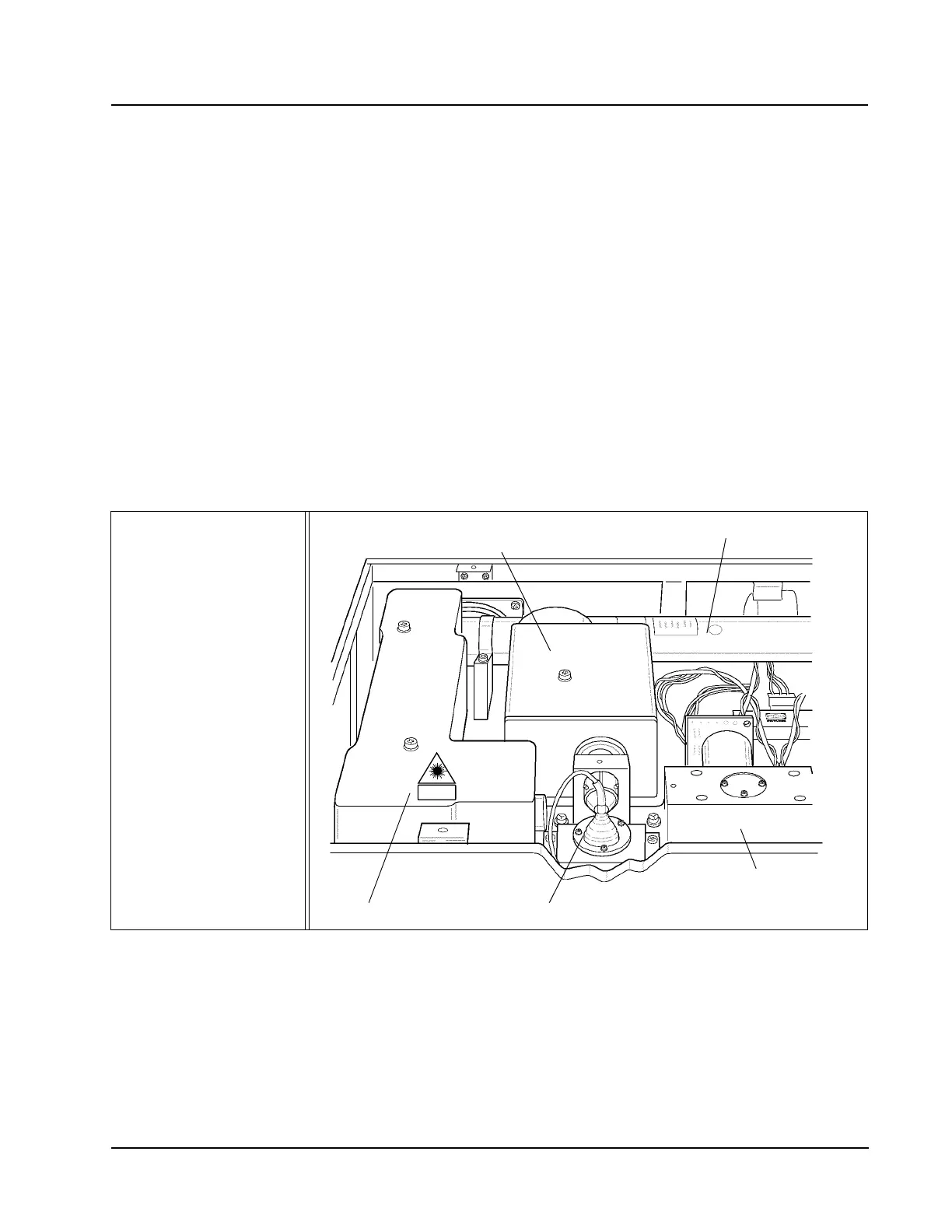

Figure 1.10 Optical Bench
1 Orthogonal (90° and
90°D) Scatter Light
Detectors
2 Laser Tube
3 Forward Angle (0° and
10°) Scatter Light
Detectors
4 Optical Flow Cell
5 Laser
1
2
3
4
5
CAUTION –
CLASS 3B LASER LIGHT WHEN OPEN.
AVOID EXPOSURE TO BEAM.
PN 923 0701
