10-22
CELL-DYN
®
3200 System Operator’s Manual
9140181H—October 2001
Troubleshooting and Diagnostics
Diagnostics Menu
Section 10
Fifth Diagnostics Menu Screen — SL Model
For SL models, when the [MORE] key in the fourth DIAGNOSTICS MENU is pressed,
the fifth and last DIAGNOSTICS MENU screen (see Figure 10.21) and the following
soft key labels are displayed:
SERIAL TEST
BAR CODE ALIGNMENT *
FPU TEST *
TOWER TEST *
LOADER TEST *
MORE
MAIN
* These keys are for service use only.

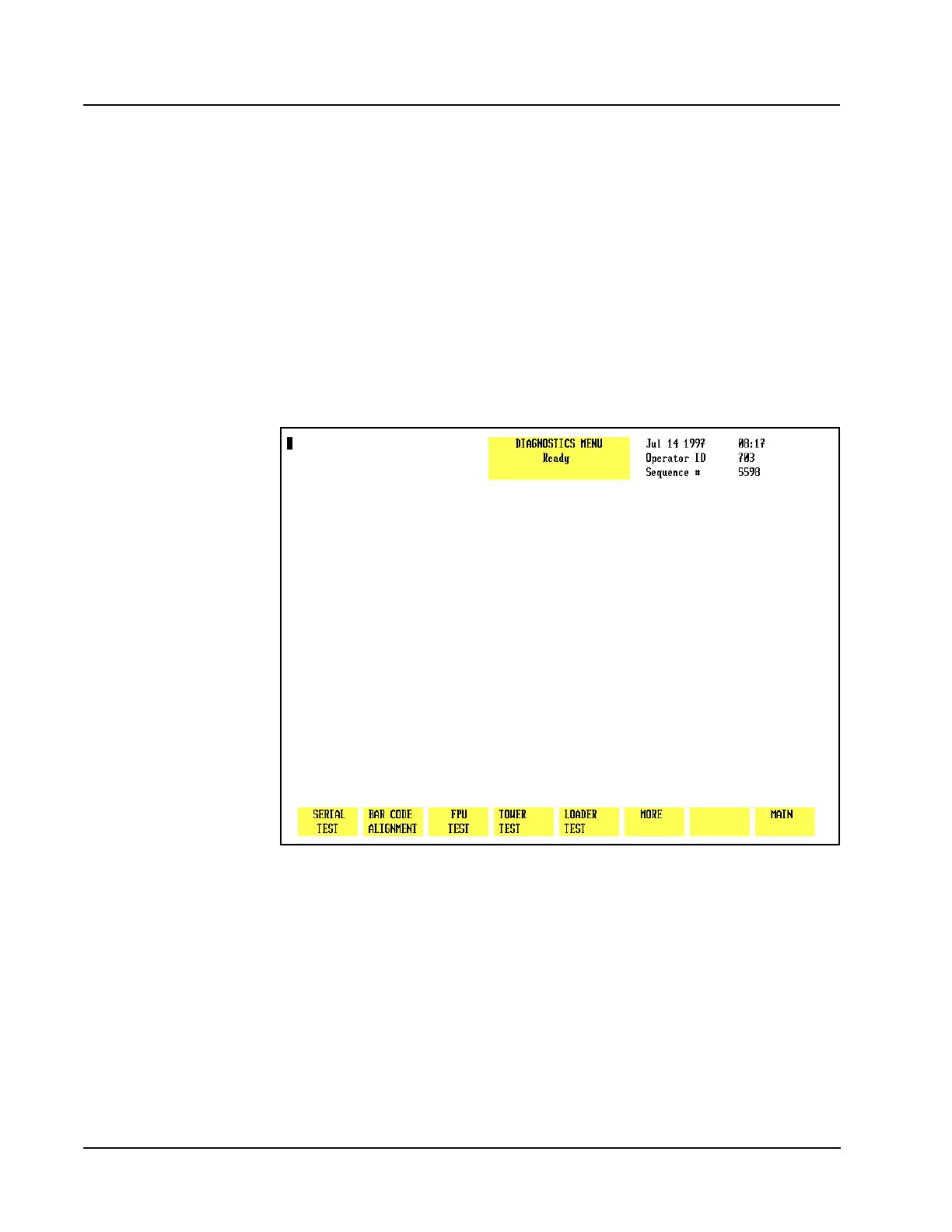

Figure 10.21 Fifth Diagnostics Menu Screen (CELL-DYN 3200SL)
The [SERIAL TEST] and [MORE] keys function in a similar manner to that described
in section Fifth Diagnostics Menu Screen — CS Model.
