CELL-DYN
®
3200 System Operator’s Manual
10-19
9140181H—October 2001
Section 10 Troubleshooting and Diagnostics
Fifth Diagnostics Menu Screen — CS Model
For CS models, when the [MORE] key in the fourth DIAGNOSTICS MENU is pressed,
the fifth and last DIAGNOSTICS MENU screen (see Figure 10.18) and the following
soft key labels are displayed:
SERIAL TEST
BAR CODE ALIGNMENT *
FPU TEST*
TOWER TEST *
DOOR TEST *
MORE
MAIN
* These keys are for service use only.

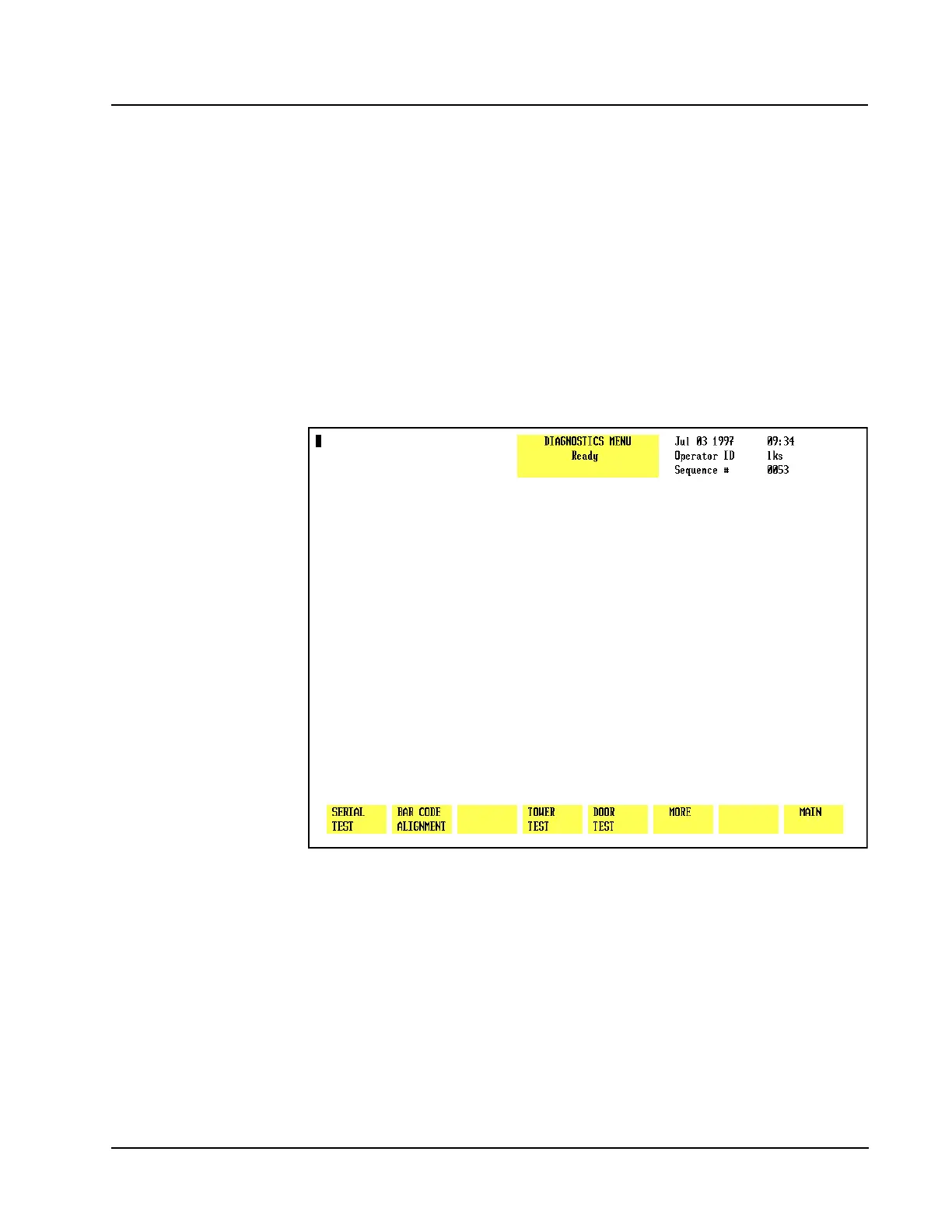

Figure 10.18 Fifth Diagnostics Menu Screen (CELL-DYN 3200CS)
