CELL-DYN
®
3200 System Operator’s Manual
1-23
9140181H—October 2001
Section 1 Use or Function
Video Cable (not shown)
The Video Cable allows data from the Data Module to be transferred to the Display
Monitor.
Power Cord (not shown)
A built-in power cord on the Display Station connects to an outside power supply
and provides power to the monitor and keypad.
Sample Loader Components
The major components of the Sample Loader are depicted in Figure 1.13.
A description of each component’s function follows.

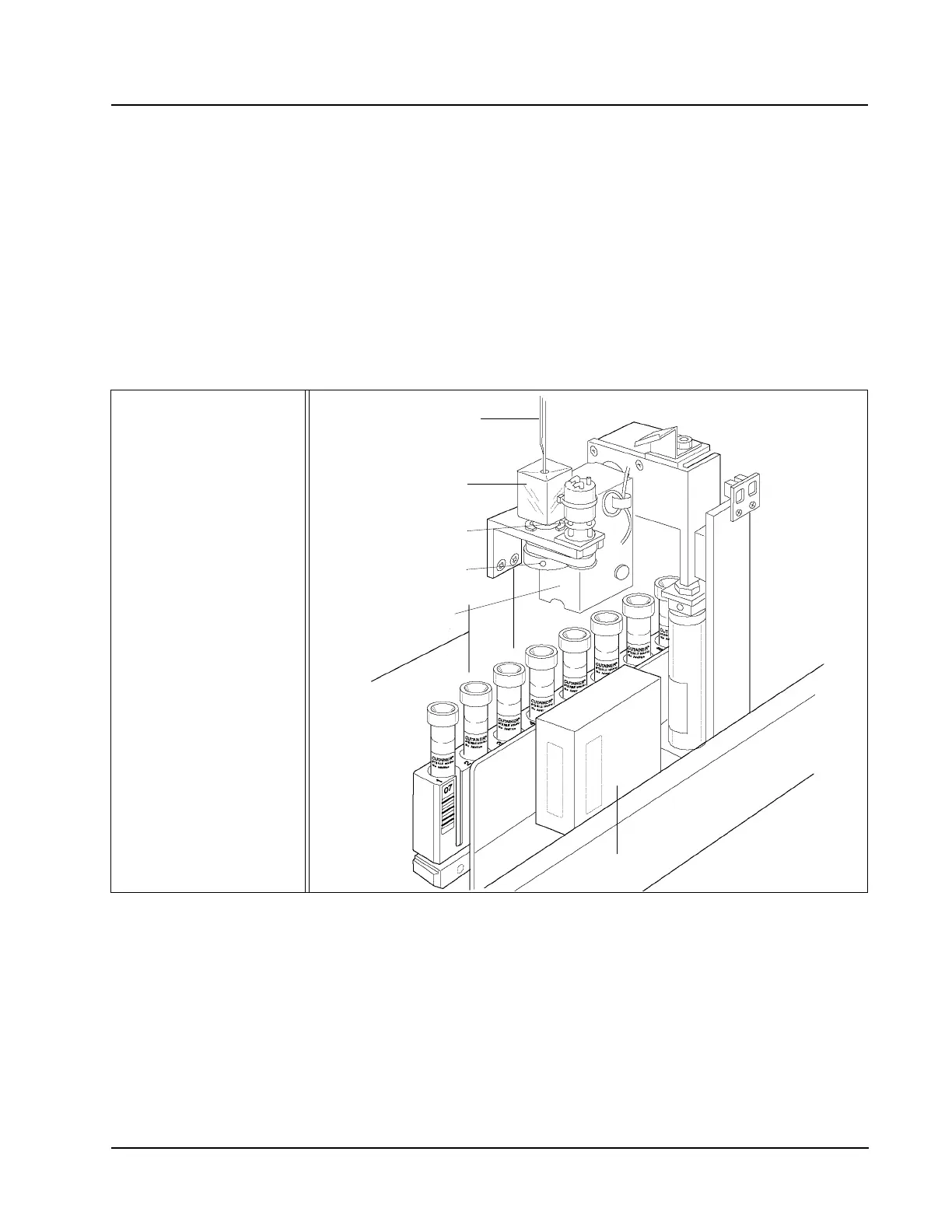

Figure 1.13 Sample Loader Components
Racks
Each Sample Loader Rack is able to accommodate up to 10 tubes. Racks are
labeled with rack number and tube position, and with a 2-digit Bar Code 39 format.
1 Aspiration Needle
2 Wash Block
3 Spinner Motor
4 Tube Spinner
5 Tube Mixer Assembly
6 Bar Code Reader
6
5
4
3
1
2
