Section 10 Troubleshooting and Diagnostics
Stop Transmiss
The [STOP TRANSMISS] key is used to stop any transmission that is in progress to
a LIS. When the key is pressed, any transmission in progress is aborted.

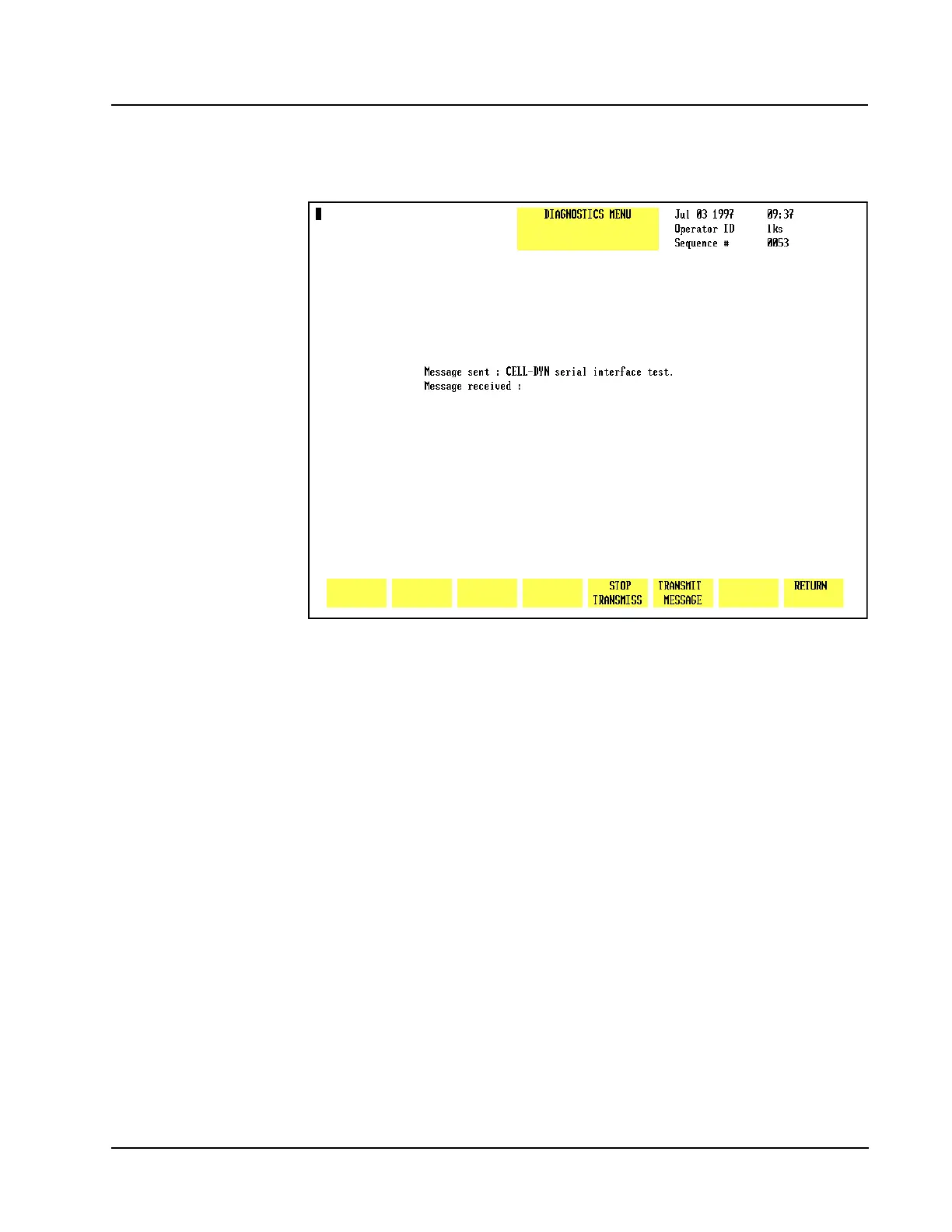

Figure 10.20 Serial Test Transmit Message Screen
Transmit Message
When the [TRANSMIT MESSAGE] key is pressed, the message
“CELL-DYN serial interface test” is transmitted from the Analyzer
to the COM1 port, through the loop-back connector and back to the Analyzer. The
screen (see Figure 10.20) displays the message:
MESSAGE SENT: CELL-DYN serial interface test.
If the test is successful, the screen displays the message:
MESSAGE RECEIVED: CELL-DYN serial interface test.
This message indicates that the Data Station is communicating properly. If the test
is not successful, no message appears.
