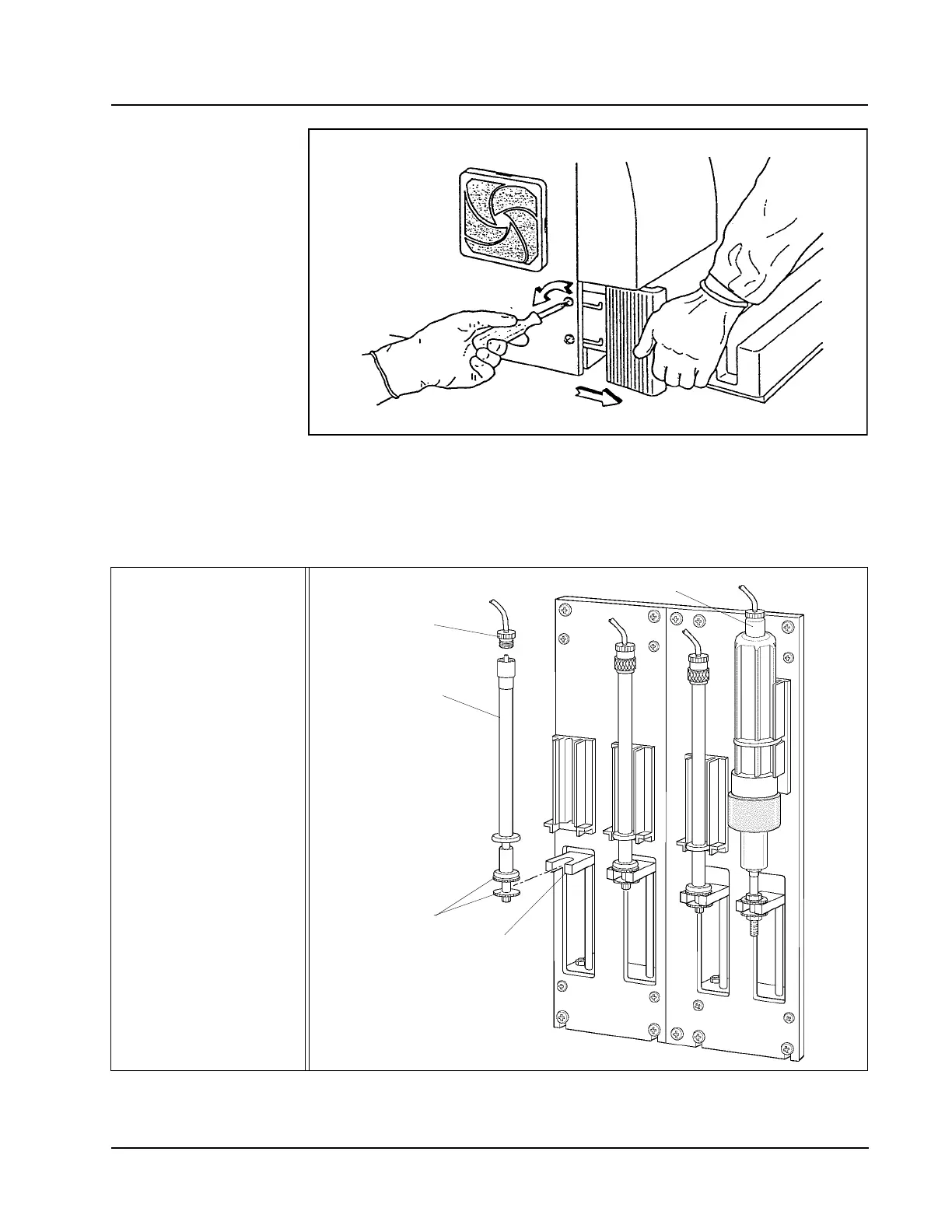

Figure 9.15 Sample Loader Mounting Screws
3. Carefully lift and pull the Sample Loader away from the instrument
approximately 2-3 inches.
4. Push the Sample Loader down to lock it in to place.
Figure 9.16 Sample Injection Syringe Removal
1 Tube Fitting
2 Sample Injection
Syringe
3 Double Collar
4Base
5 Luer Lock
5
1
2
3
4
