Chapter 3 69

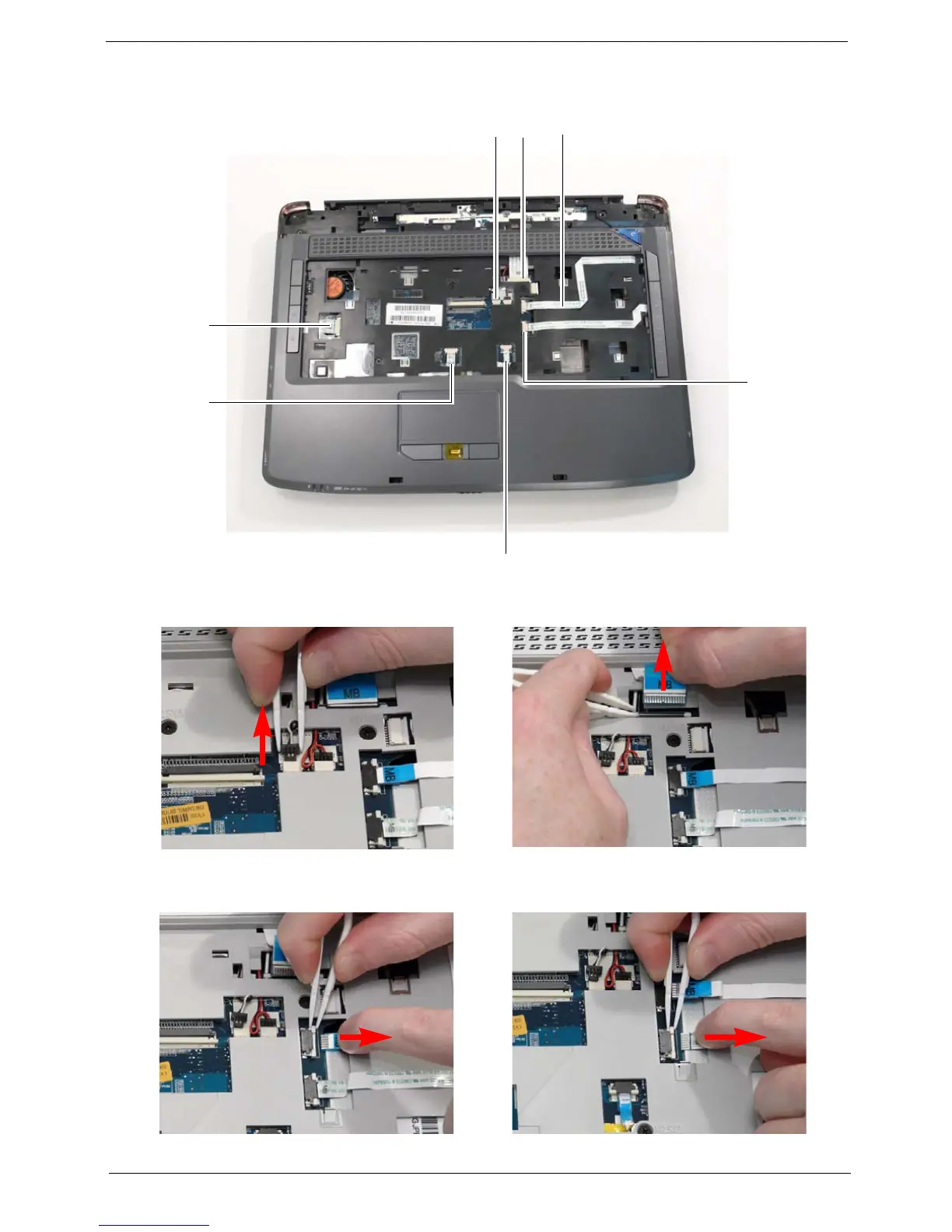

4. Disconnect the seven cables from the mainboard as shown.
Disconnect A as shown. Release the securing latches and disconnect B as
shown.
Release the securing latches and disconnect C as
shown.
Release the securing latches and disconnect D as
shown.
B
C
D
E
F
G
A
