70 Chapter 3

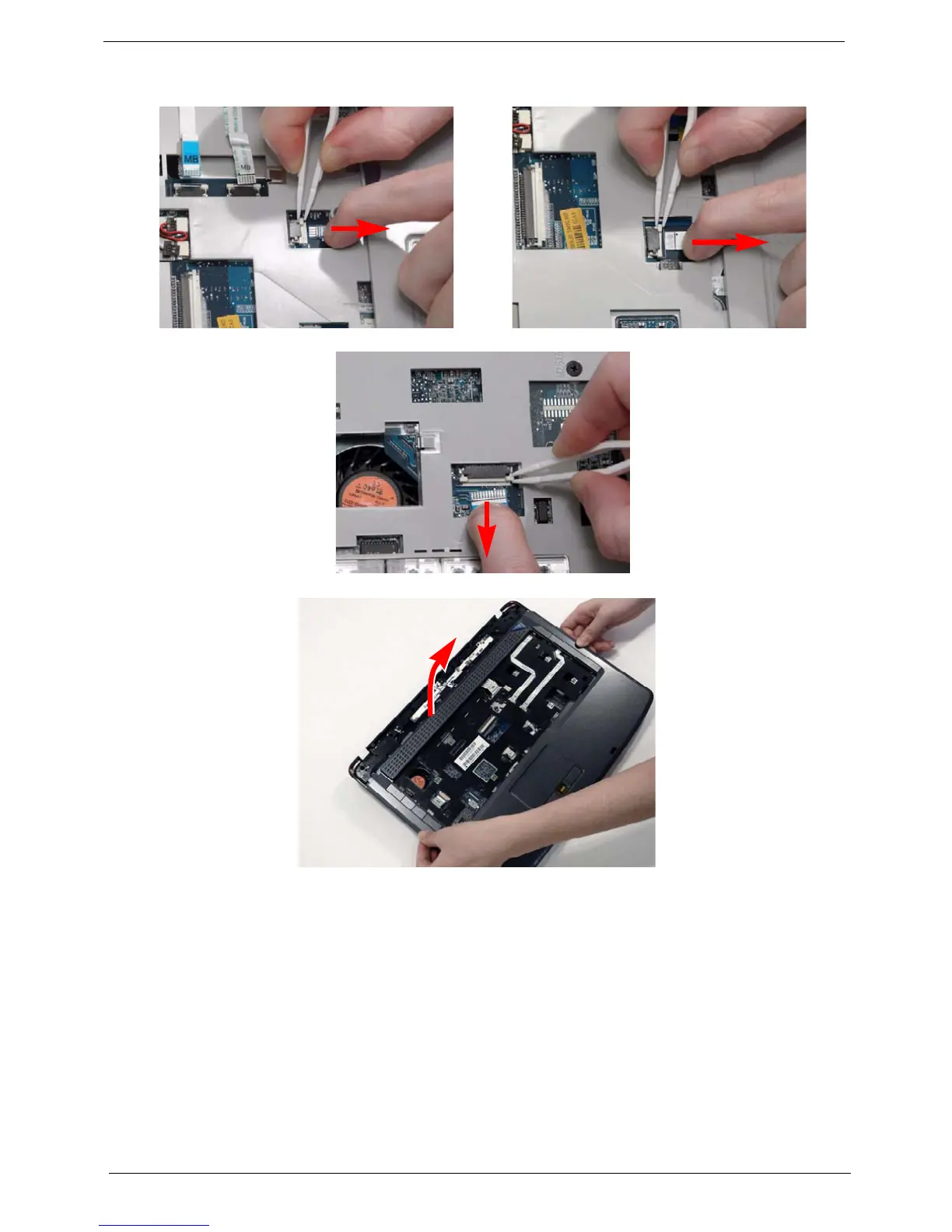

5. Remove the upper cover by lifting upward from the chassis, rear edge first.
Release the securing latches and disconnect E as
shown.
Release the securing latches and disconnect F as
shown.
Release the securing latches and disconnect G as shown.
