Attaching the cable cover
130 / 157 DLT-V83 Operating Instructions V2.00
15.2. Required components
− Cable cover of the DLT-V83 (optional with integrated UPS battery packs)

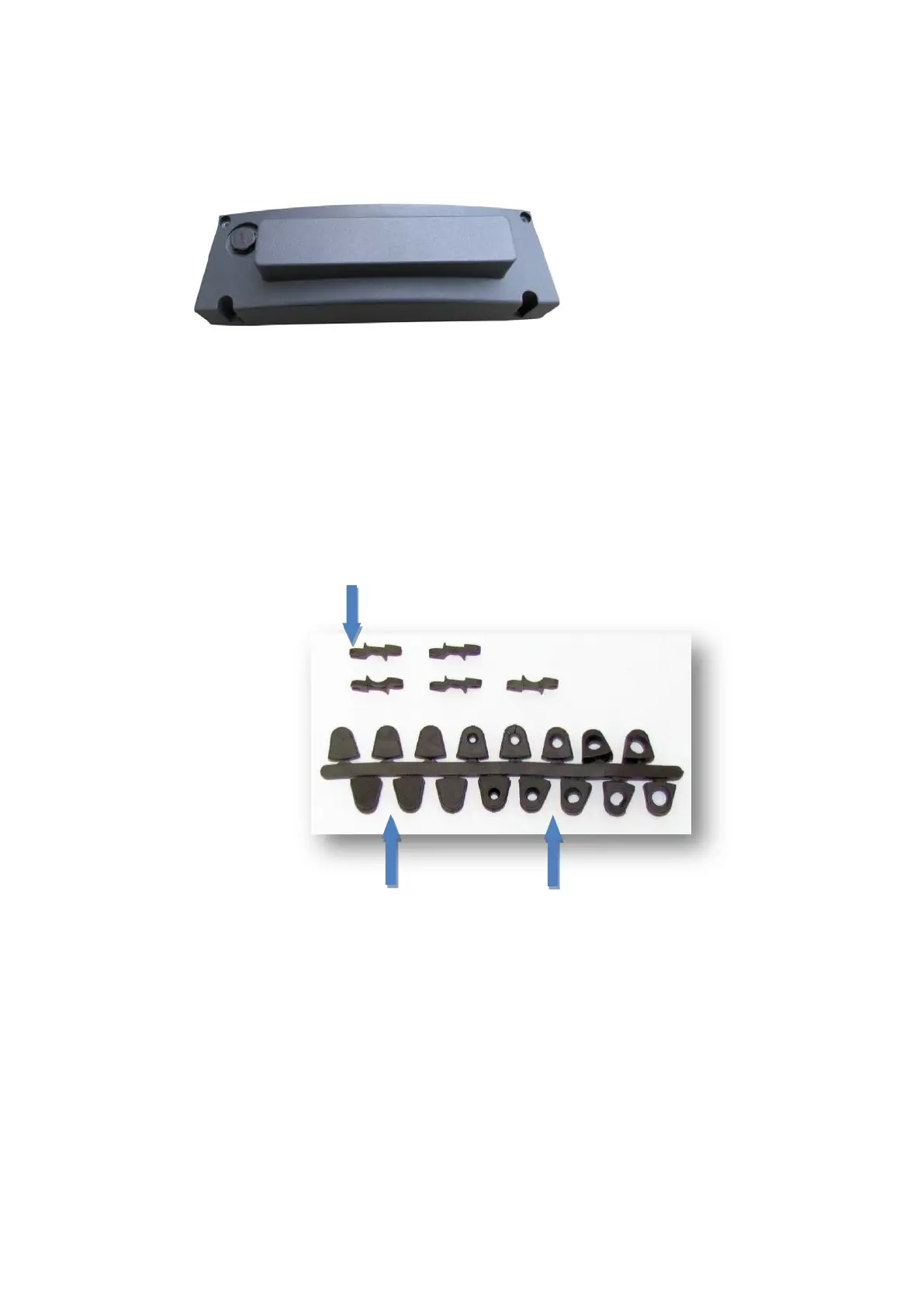

Fig. 15.1: Cable cover with integrated UPS battery (optional)
− 4 fastening screws (cylinder head screws ISO 4762-M4x10-A2)
− Cable clips and mounting screws (cylinder head screws ISO 4762-M3x12-A2)
− Cable sealing set consisting of dummy grommets and gradually widened cable grommets
(3.5 mm to 8.0 mm; in 0.5 mm ascending increments)
Fig. 15.2: Dummy grommets and cable grommets for various cable diameters
Cable grommets, open/broken
through at one position
Diameter of the cable grommet is
specified on each grommet
(3.5 mm to 8.0 mm)
grommets
