Advantech-DLoG DLT-V8312 - DLT-V83 Front Keys with Resistive Touchscreen; Overview of the Operating Elements on the Device Front; Fig. 9.2: Example: DLT-V8312 Version with 26 Front Keys

Operating the device
58 / 157 DLT-V83 Operating Instructions V2.00
9.4. DLT-V83 front keys with resistive touchscreen
9.4.1. Overview of the operating elements on the device front

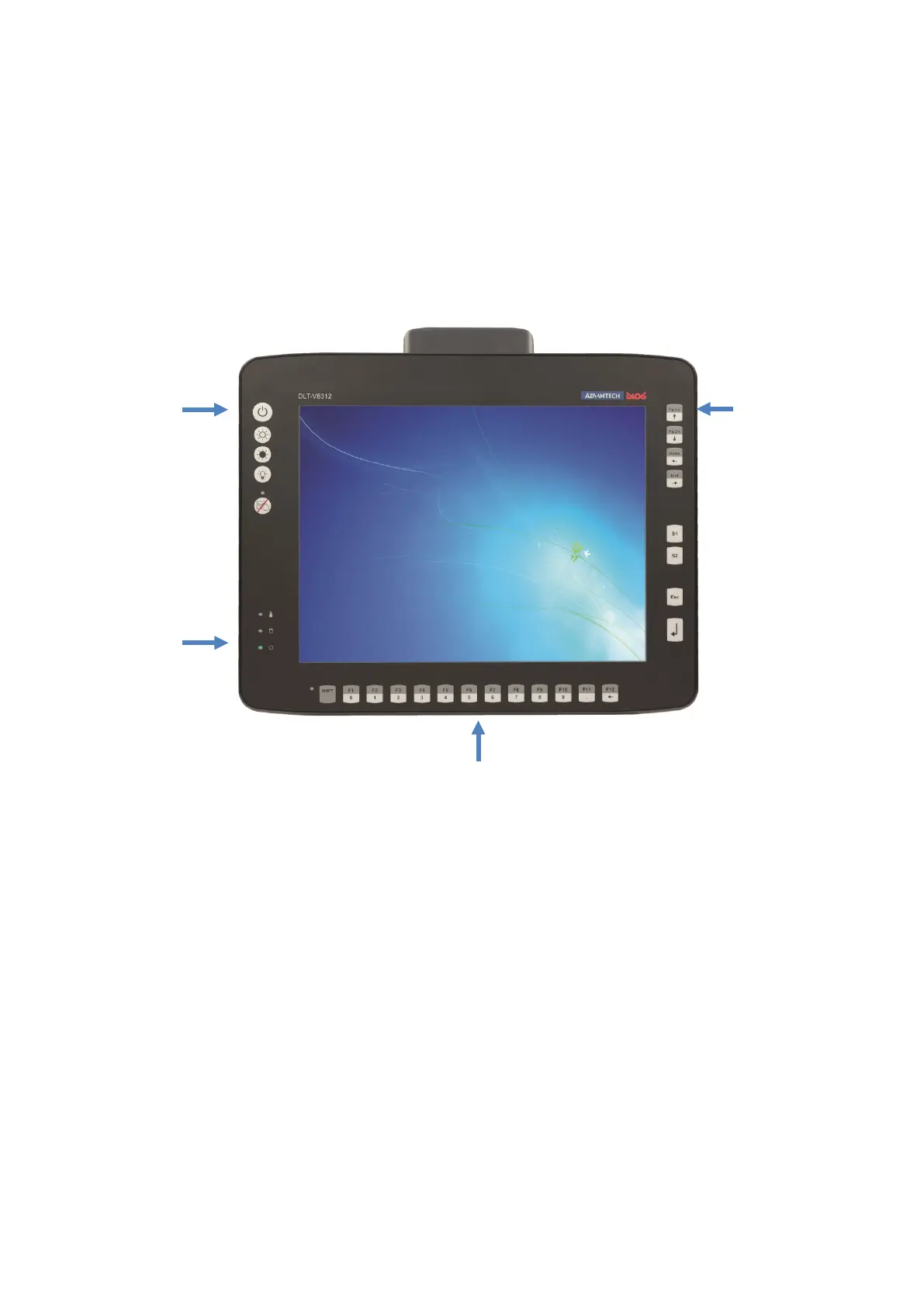

Fig. 9.2: Example: DLT-V8312 version with 26 front keys
Front keys:
- Turn on/off
- Display brighter
- Display darker
- Backlighting
on/off
- Touch on, off
Front keys:
- Arrow keys
- Pg Up, Pg Dn
- Home
- End
- Special keys
S1, S2
- Esc
- Enter
Front keys:
Shift, function keys F1 to F12
Numbers 0 bis 9, point, backspace
LEDs:
- Temperature
- Flash drive
- Supply voltage
