Interfaces, connectors
DLT-V83 Operating Instructions V2.00 45 / 157
7.4. Connections under the cable cover
7.4.1. DC devices: connections, expansion interfaces
The symbol for the fuse is FA.

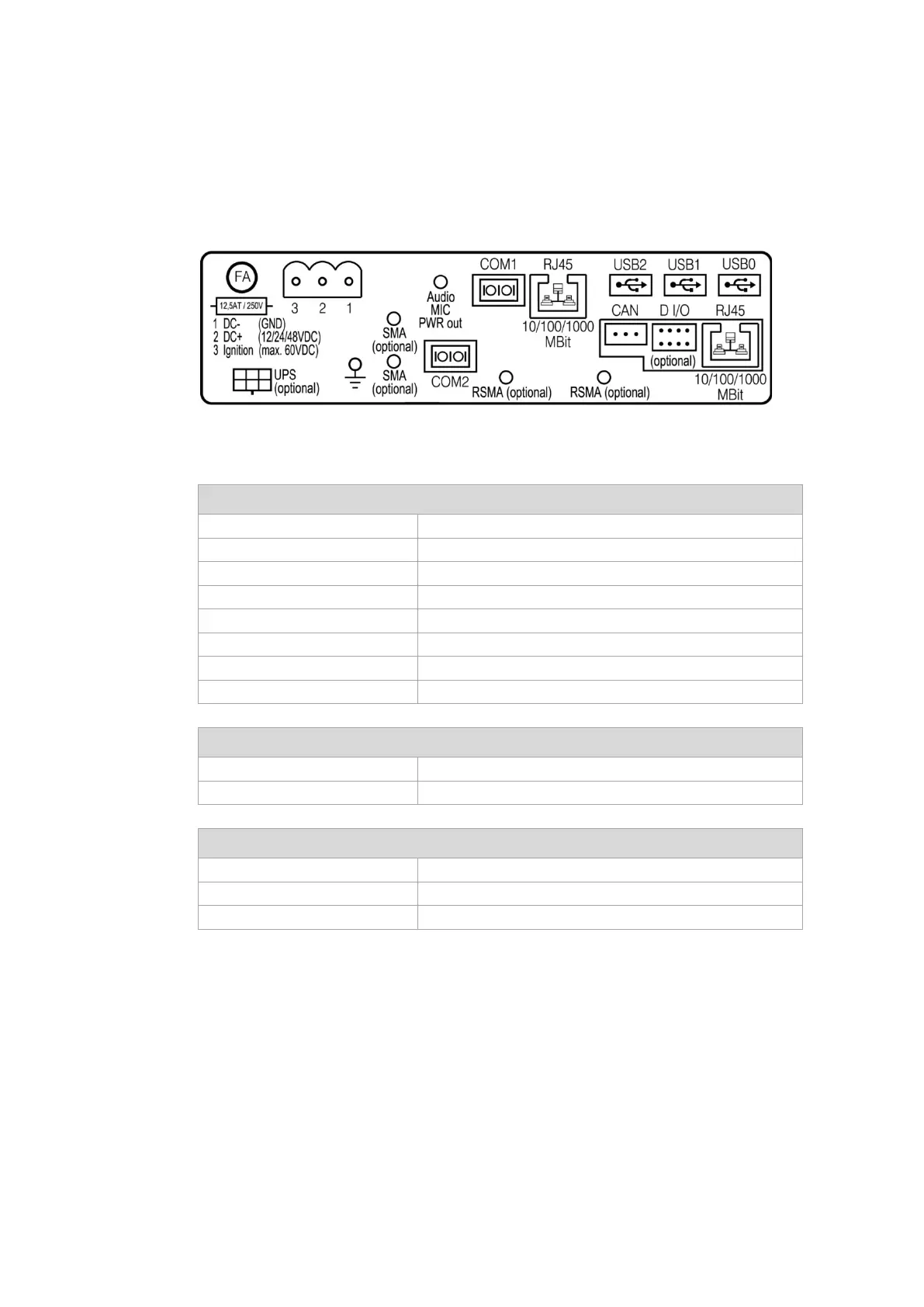

Fig. 7.6: DC device external connections with optional expansion interfaces
Pin assignment (standard)
Power supply 12/24/48 VDC nominal
UPS (optional) Uninterruptible power supply (UPS)
2 x SMA (optional) WWAN/GPS
Audio MIC PWR out Voice Kit
COM1, COM2 Serial interfaces
2 x RSMA (optional) Remote WLAN antenna(s)
RJ45 LAN Ethernet 10/100/1000 MBit/s
USB2, USB1, USB0 USB 2.0 interfaces (HI-SPEED™), bootable
Expansion interfaces package 1 (optional)
D I/O Digital In/Out
RJ45 LAN Ethernet 10/100/1000 MBit/s
Expansion interfaces package 2 (optional)
CAN CAN interface
D I/O Digital In/Out
RJ45 LAN Ethernet 10/100/1000 MBit/s
