7.4.2. AC devices (DLT-V8315 only): connections, expansion interfaces

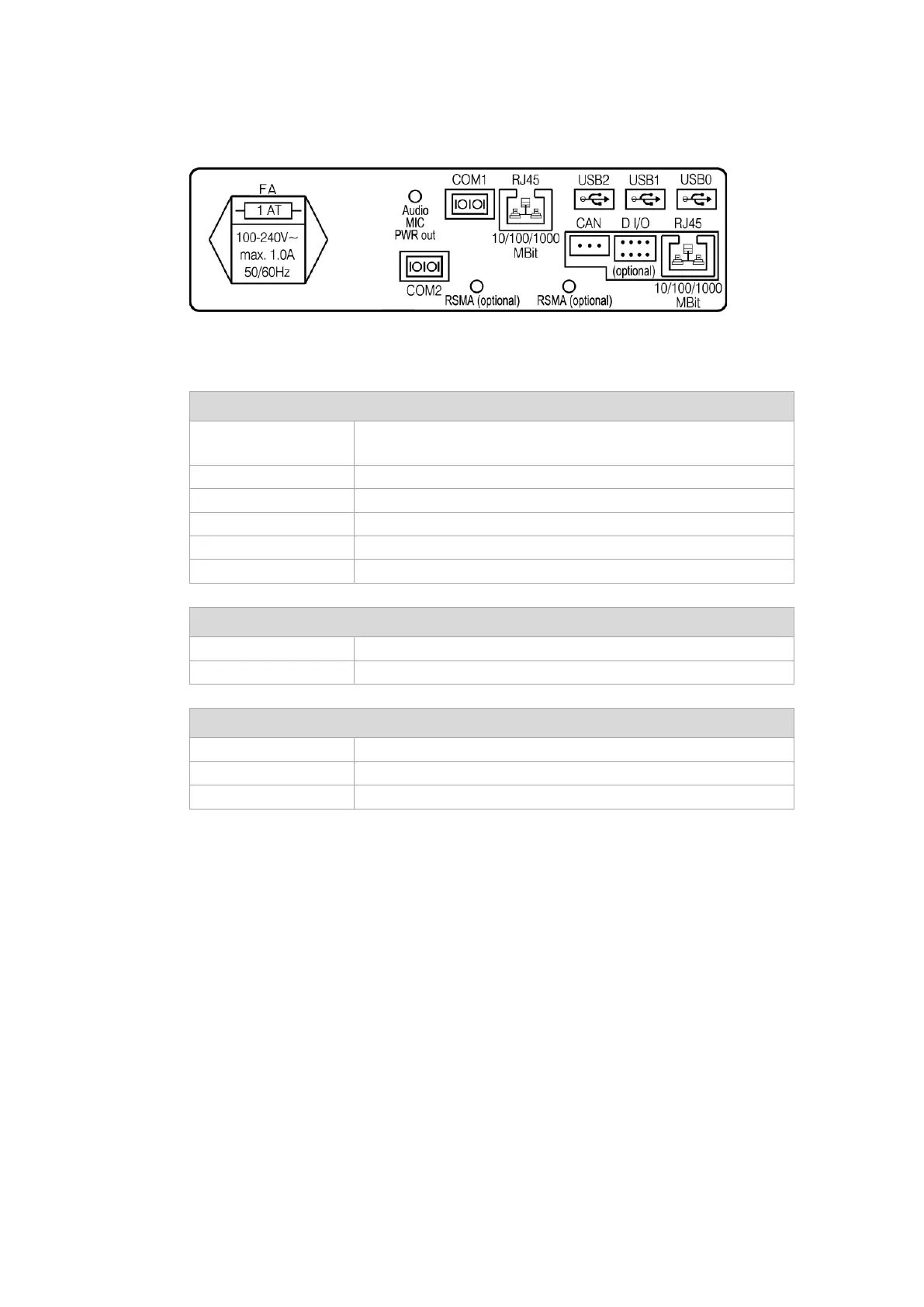

Fig. 7.7: AC device external connections with optional expansion interfaces
Pin assignment (standard)
Power supply
DLT-V8315
100 to 240 VAC
Audio MIC PWR out Voice kit
COM1, COM2 Serial interfaces
2 x RSMA (optional) Remote WLAN antenna(s)
RJ45 LAN Ethernet 10/100/1000 Mbps
USB2, USB1, USB0 USB 2.0 interfaces (HI-SPEED™), bootable
Expansion interfaces package 1 (optional)
D I/O Digital I/O
RJ45 LAN Ethernet 10/100/1000 Mbps
Expansion interfaces package 2 (optional)
CAN CAN interface
D I/O Digital I/O
RJ45 LAN Ethernet 10/100/1000 Mbps
