Advantech-DLoG DLT-V8312 - External WLAN Antenna IEEE 802.11 A;B;G;N; Fig. 6.5: External WLAN Antenna (Optional)

Technical data on radio modules
34 / 157 DLT-V83 Operating Instructions V2.00
Compatible WWAN card: USA: QUECTEL EC25A
Europe: QUECTEL EC25E
(see section 6.2.2 Available Radio cards)
6.3.5. External WLAN antenna IEEE 802.11 a/b/g/n

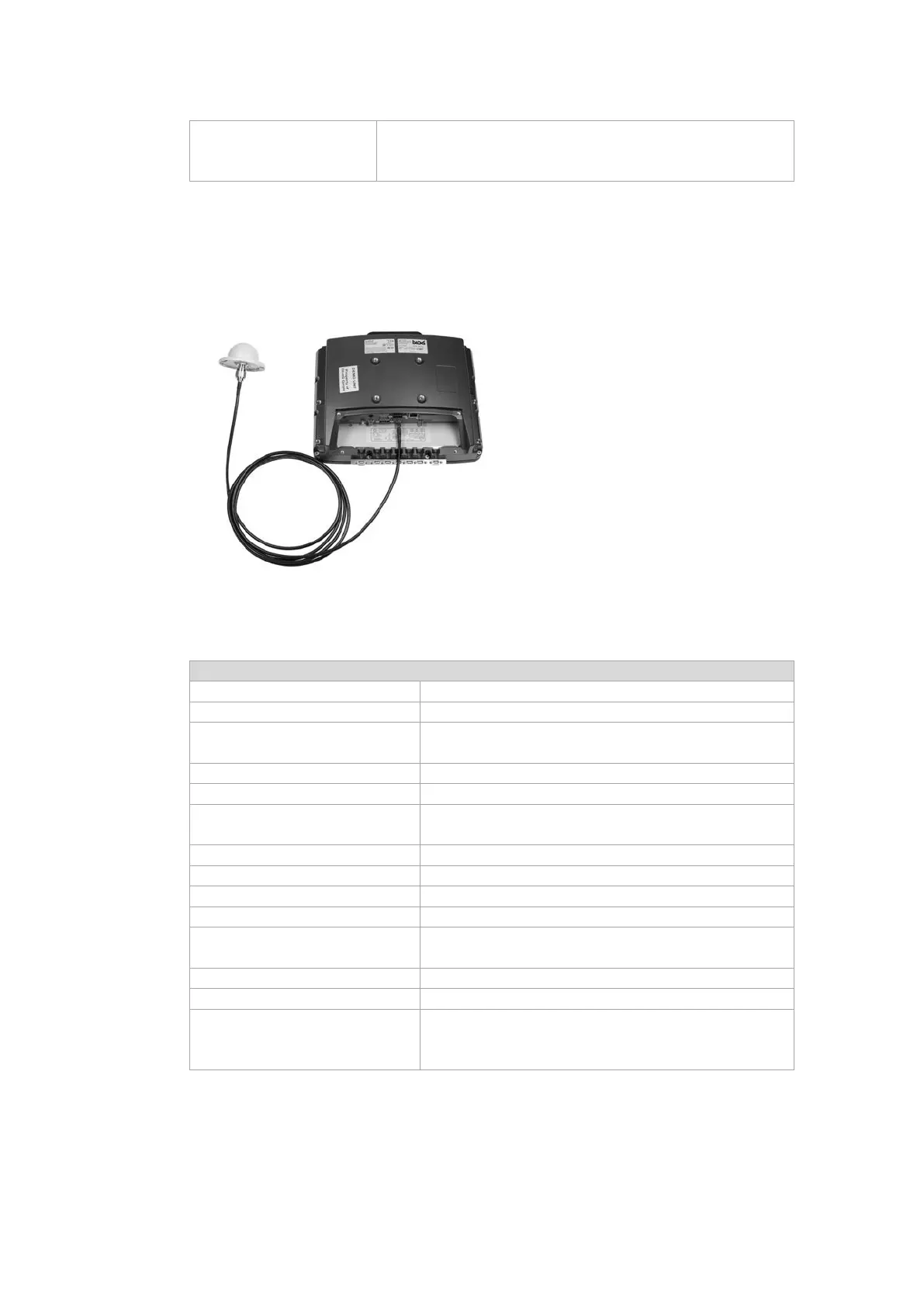

Fig. 6.5: External WLAN antenna (optional)
Technical data
Application
WLAN IEEE 802.11 a/b/g/n Dual Band
Mounting location
For detached mounting, e.g. on the roof of the forklift
WLAN frequency range Band 1: 2400 to 2485 MHz
Band 2: 5150 to 5875 MHz
Number of antennas
1
Type
Omnidirectional antenna
Antenna gain Band 1: Max. 4 dBi (without loss through the cable)
Band 2: Max. 6.5 dBi (without loss through the cable)
Impedance
50 Ω
Polarization
Vertical/horizontal
Dimensions
Ø 86 x 43 mm (Ø 3.39” x 1.69”)
Weight
0.3 kg (0.66 lbs)
Connector labeling N-type or TNC N, Jack, female, bottom
RSMA plug for RSMA socket on the terminal
Scope of delivery
3 m antenna cable
Maximum transmitting power
100 mW / 20 dBm
Corresponding Radio cards: SUMMIT/LAIRD SDC-PE15N
SPARKLAN WPEQ-261 ACN (BT)
(see section 6.2.1 Available radio cards)
