Technical data of the device
DLT-V83 Operating Instructions V2.00 21 / 157
5.2. Power supply units, power supply
5.2.1. Integrated DC power supply unit
DC voltage supply connection
Version: Phoenix Combicon, 3-pin.
External view:

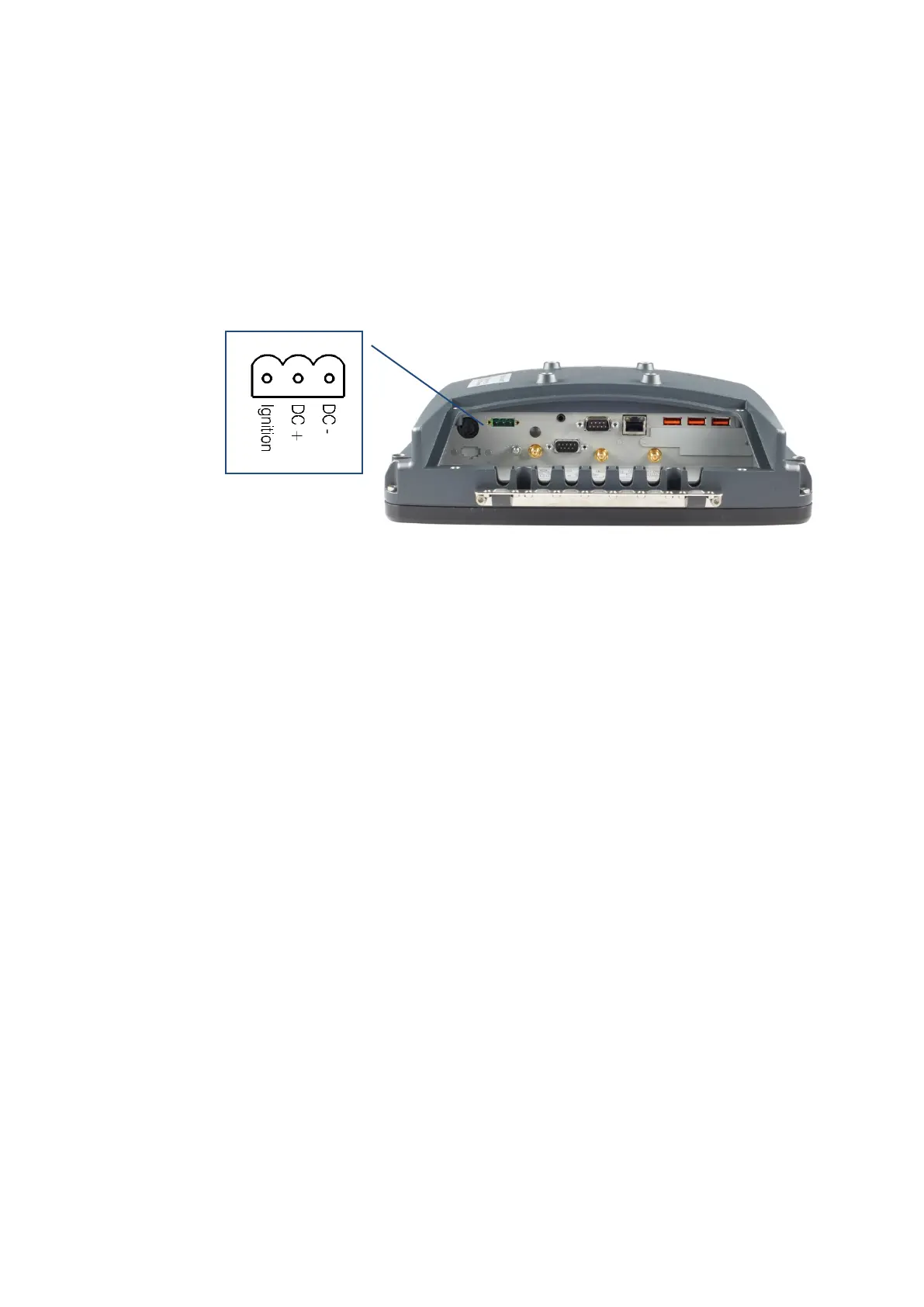

Fig. 5.5: DC power supply connector with connector detail view
Explanation:
“Ignition on” means that a control signal can be routed to this connection (e.g., ignition of a vehicle), that
matches the supply voltage level and is able to supply at least 1 W to the DLT-V83.
The signal reference is DC-.
