Technical data on radio modules
36 / 157 DLT-V83 Operating Instructions V2.00
6.3.7. External WWAN antenna 2G, 3G, 4G

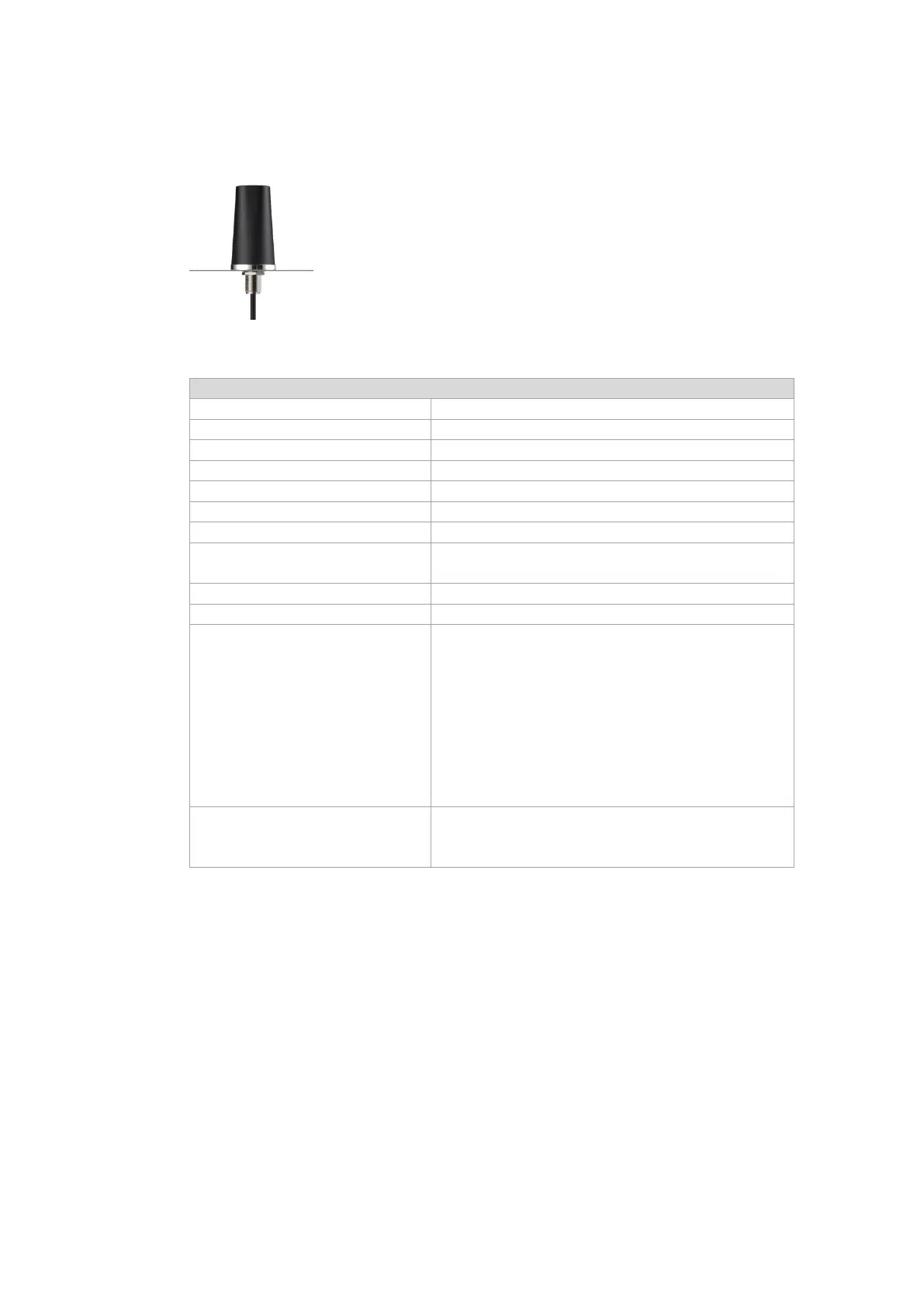

Fig. 6.7: External WWAN antenna (optional)
Technical data
Application
WWAN 2G, 3G, 4G cellular bands
Mounting location
For detached mounting, e.g. on the roof of the forklift
Number of antennas
1
Type
Omnidirectional antenna
Antenna gain
Typically 2.2 dBi
Impedance
50 Ω
Polarization
Vertical
Dimensions Height 79.45 mm
Diameter 42 mm
Cable length
3 m
IP protection
IP67 and IP69K
Max. transmitting power of antenna Class 3 (23dBm±2dB) for LTE FDD
Class 3 (23dBm±2dB) for LTE TDD
Class 3 (24dBm+1/-3dB) for TD-SCDMA
Class 3 (24dBm+1/-3dB) for WCDMA
Class E2 (27dBm±3dB) for EDGE 850/900MHz
Class E2 (26dBm+3/-4dB) for EDGE
1800/1900MHz
Class 4 (33dBm±2dB) for GSM 850/900MHz
Class 1 (30dBm±2dB) for GSM 1800/1900MHz
Compatible WWAN card: USA: QUECTEL EC25A
Europe: QUECTEL EC25E
(see section 6.2.2 Available Radio cards)
