ELECTRONIC FUEL INJECTION SYSTEM

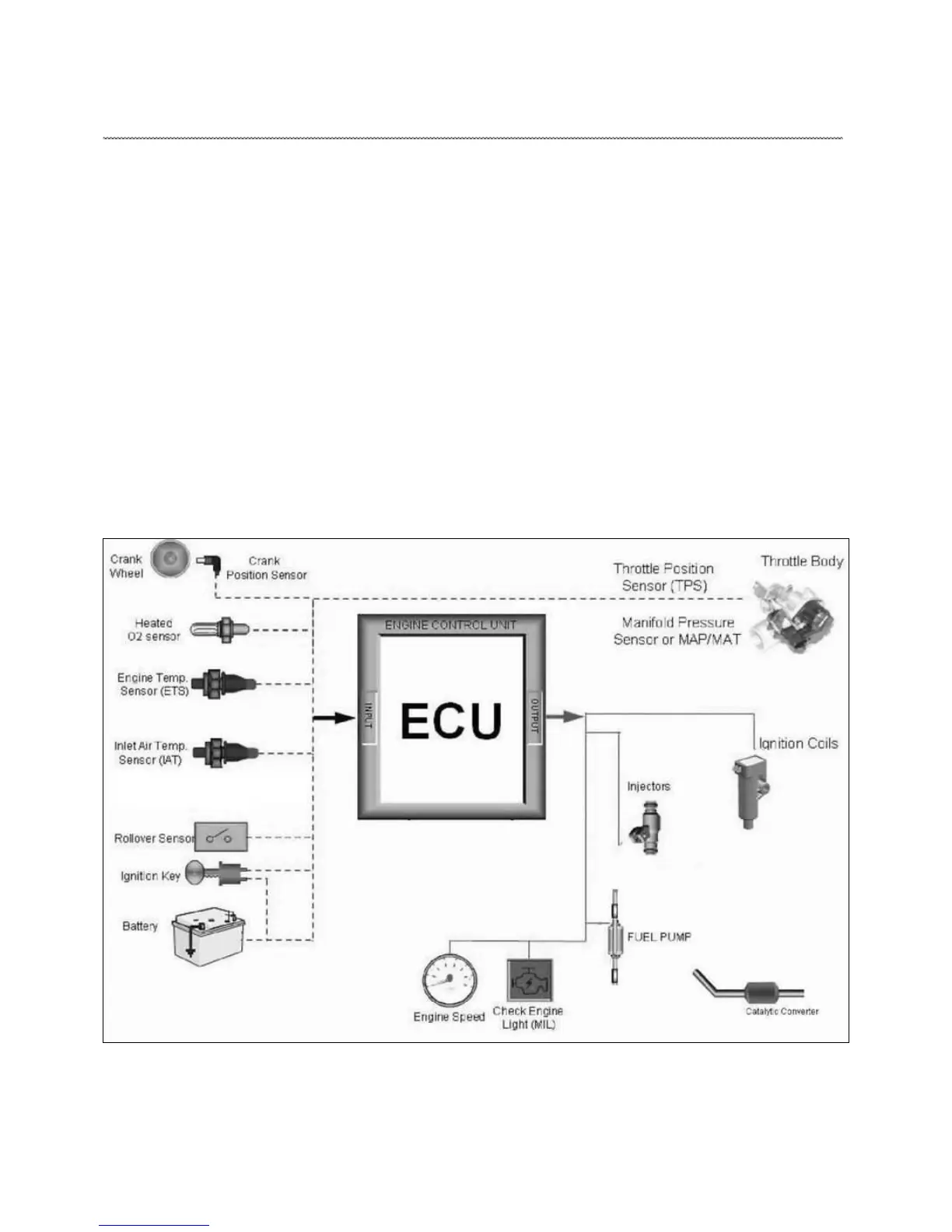

EFI SYSTEM EXPLODED VIEW
1. Electronic Control Unit (ECU)
2. Intake Air Temperature (IAT)
3. Crankshaft Position Sensor (CPS)
4. Fuel Injectors
5. Fuel Pump
6. Fuel Pump Regulator
6. Engine Coolant Sensor (ECT)
7. Throttle Position Sensor (TPS)
8. Throttle Body
9. Ignition Coil
10.Rollover Sensor
11. Idle Air Control Valve
