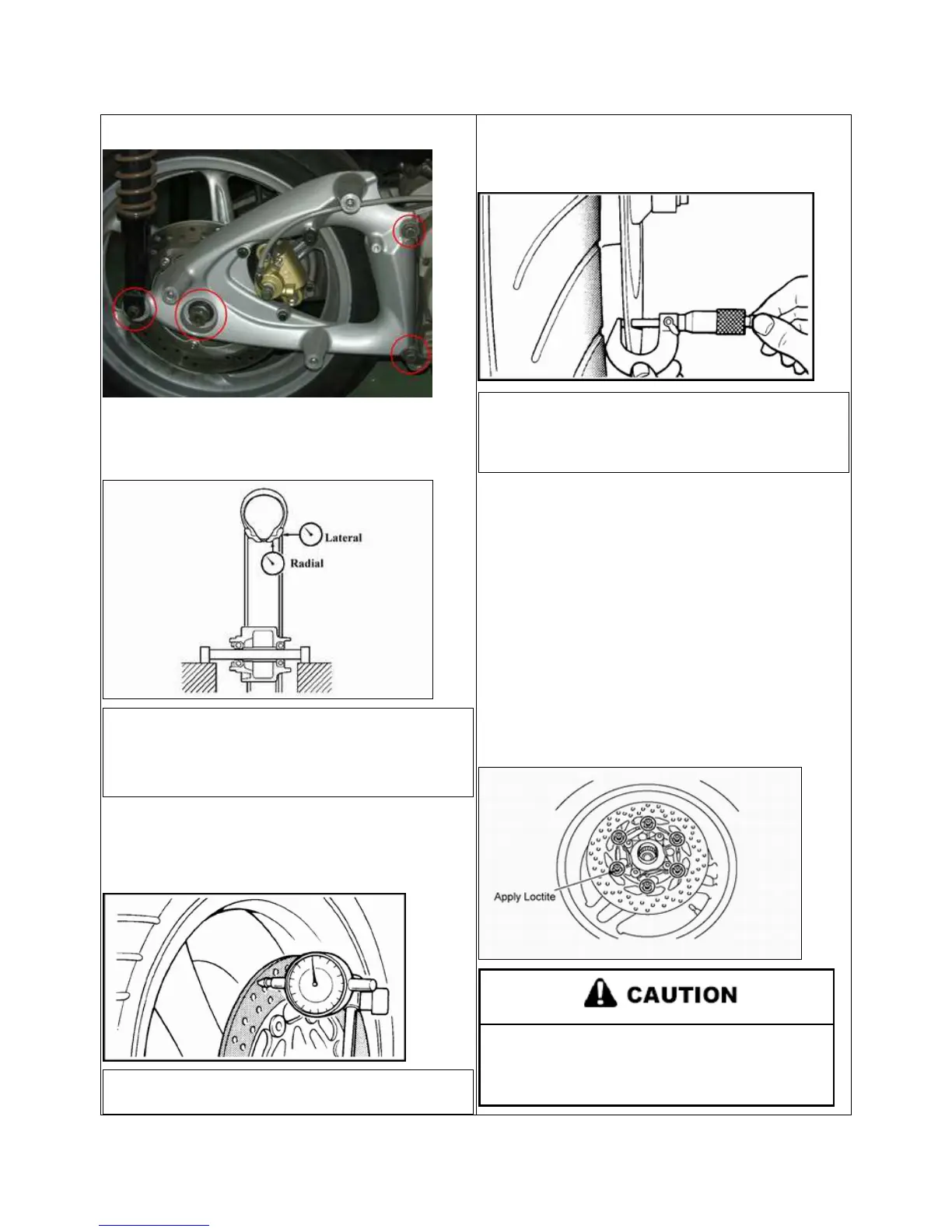

4. Remove rear fork jammed bolts and rear axle nut then
REAR WHEEL INSPECTION
1. Refer page 6.4 to measure rear wheel radial wheel run-out
and lateral wheel run-out
Rear Wheel Lateral Limit:
2.00mm
Rear Wheel Radial Limit:
3.00mm
2. Inspect rear wheel drive hub. Replace it if crack or
damaged.
3. Visually inspect disc for scoring, scratches, or gouges.
Replace the disc if any deep scratches are evident.
Rear Brake disc deflection limit
0.30 mm
4. Use a 0-1” micrometer and measure the disc thickness at
eight different points around the pad contact surface.
Replace disc if worn beyond service limit.
Rear Brake Disc Thickness
New: 5.00 mm
Service Limit: 4.40 mm
Note:
• After replacing the tire, wheel or both, the rear wheel static
balance should be adjusted.
• Adjust the rear wheel static balance with the brake disc and
rear wheel drive hub installed.
Refer to “FRONT WHEEL ADJUSTING AND WHEEL
STATIC BALANCE” on page 6.5 to adjust rear wheel
static balance.
REAR WHEEL INSTALLATION
1. Clean the wheel hub mating surface and install new disc on
wheel hub.
2. Install new bolts and tighten disc bolts
by
crisscross pattern
then torque to 30 Nm.
Always use new brake disc mounting bolts. The
bolts have a pre-applied locking agent, which is
destroyed upon removal.
