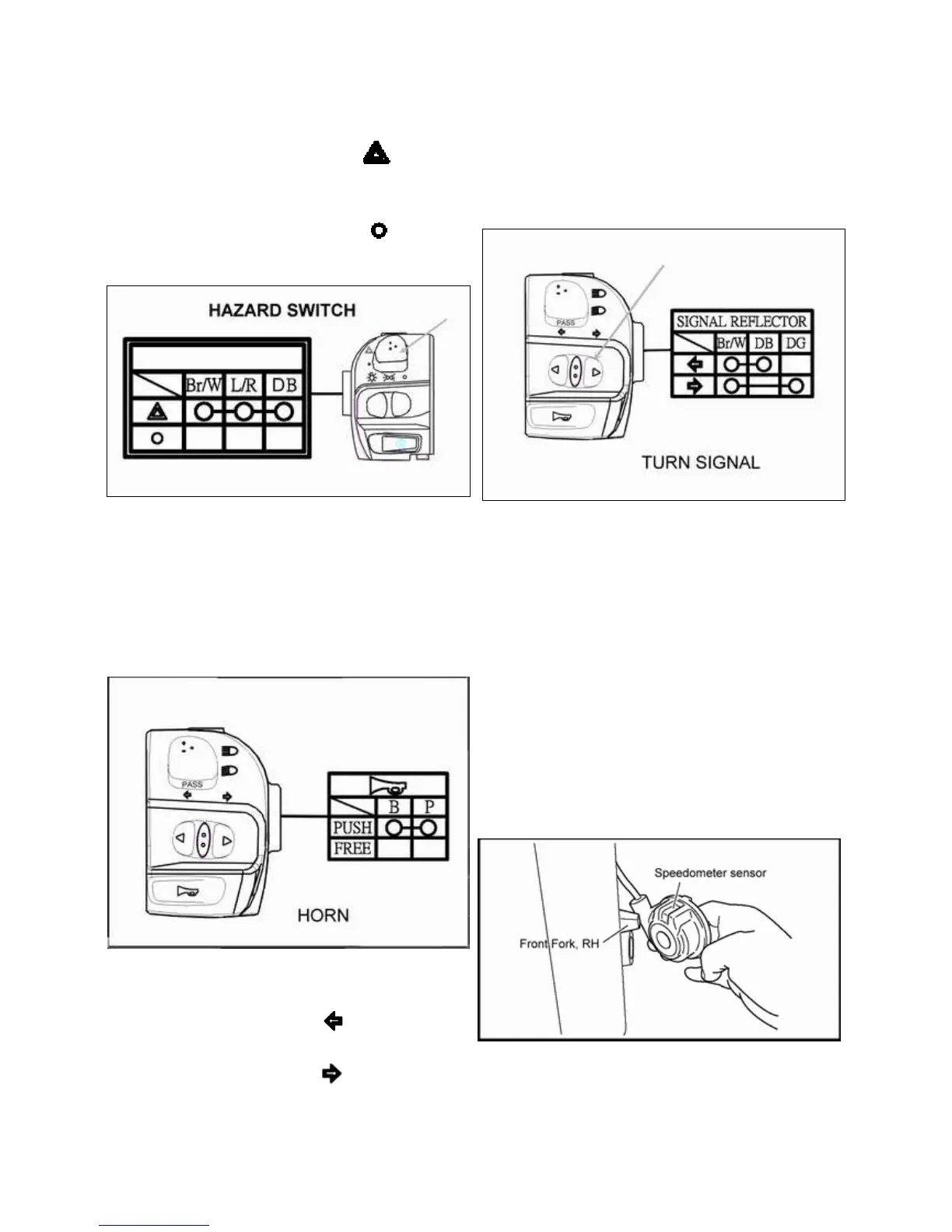

HAZARD SWITCH
1. When the hazard switch is pushed to the “ ” position,
there should be continuity between the (Br/W, L/R & DB)
wires.
2. When the hazard switch is pushed to the “ ” position,
there should no continuity between any of the wires.
HORN
1. When the switch is pushed down, there should be
continuity between the (B & P) wires.”
2. When the switch is loosened to the “FREE
should no continuity between any of the wires.
TURN SIGNAL
1. When the switch is pushed to the “ ” position, there
should be continuity between the (Br/W & DG) wires.
2. When the switch is pushed to the “ ” position, there
should be continuity between the (Br/W & DB) wires.”
NOTE: The turn signal button will not automatically
return to the off position after a turn, the operator
should manually move the button to the center
position upon completing each turn.
SPEEDOMETER / ODOMETER
The speedometer is located on top of the vehicle dash and will read vehicle
speed from 0 to 999.9 km. The gauge will also record the total distance
traveled.
Within the speedometer is a trip odometer that can be set
by depressing the set buttons. This feature is especially
useful in measuring the distance between each charge
cycle.
Speedometer Sensor and Magnet
The sensor and magnet are located on front right wheel.
