CRANKCASE DISASSEMBLY
NOTE: Engine must be removed from the frame to
perform any crankcase or crankshaft removal.
NOTE: The starter, starter drive, flywheel, stator, oil
pump and transmission can be serviced with the
engine in the frame.
CRANKCASE SEPARATION AND CAM
CHAIN REMOVAL
NOTE: Stator housing, flywheel and gears have are
previously removed for this procedure. Use care
during the removal process to avoid damage to the
cam chain.
NOTE: Valve train and cylinder removal must be
performed prior to this procedure.
NOTE: Always replace the pto crankshaft seal after
performing this procedure.

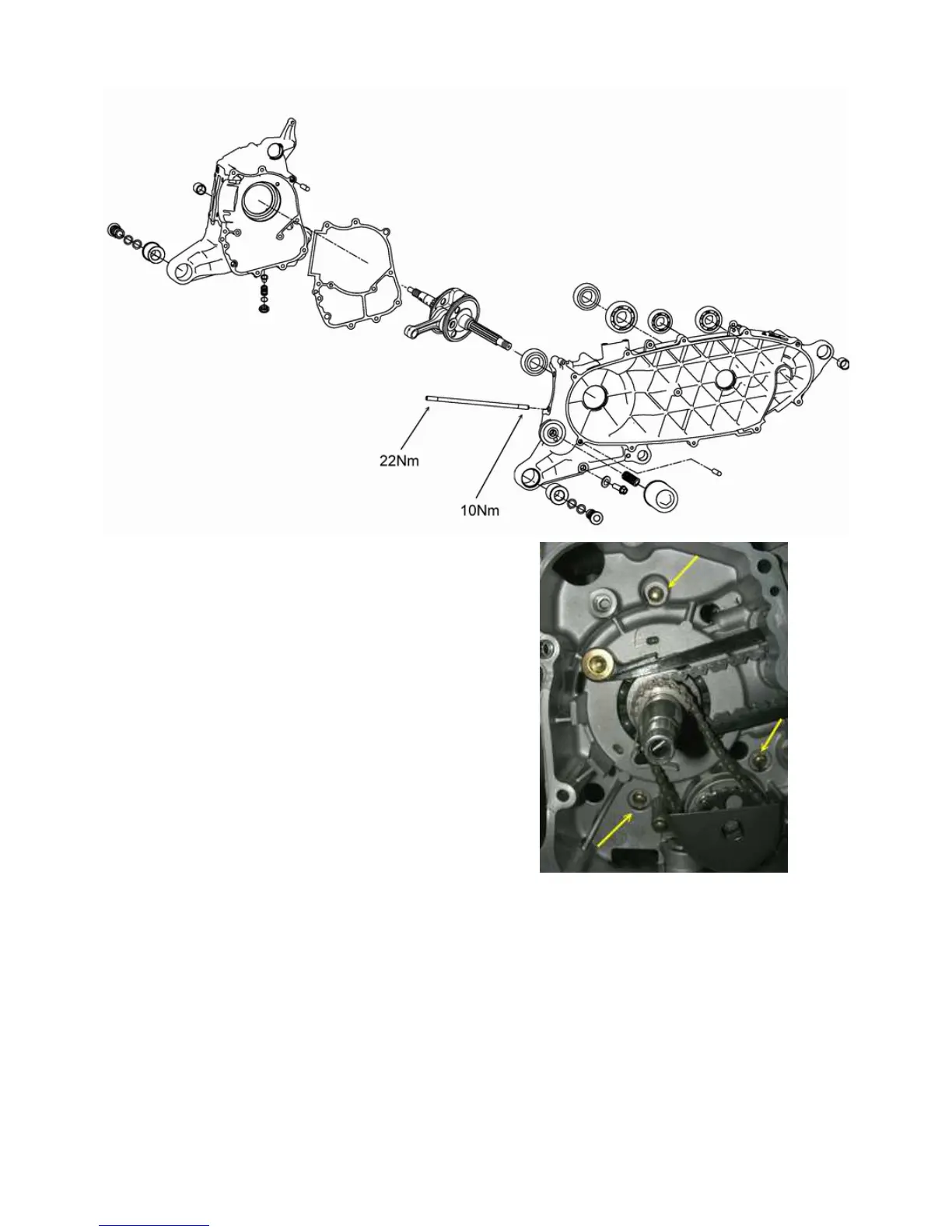

1. Remove 3 flange bolts (yellow arrows) from the right side
crankcase.
2. Separate crankcase using a hydraulic tool or by pressing on
the pto end of the crankshaft using special tool.
NOTE: Tap on one side of the crankcase with a
soft-face hammer. Tap only on reinforced portions of
the crankcase, not on the
To Next Page
