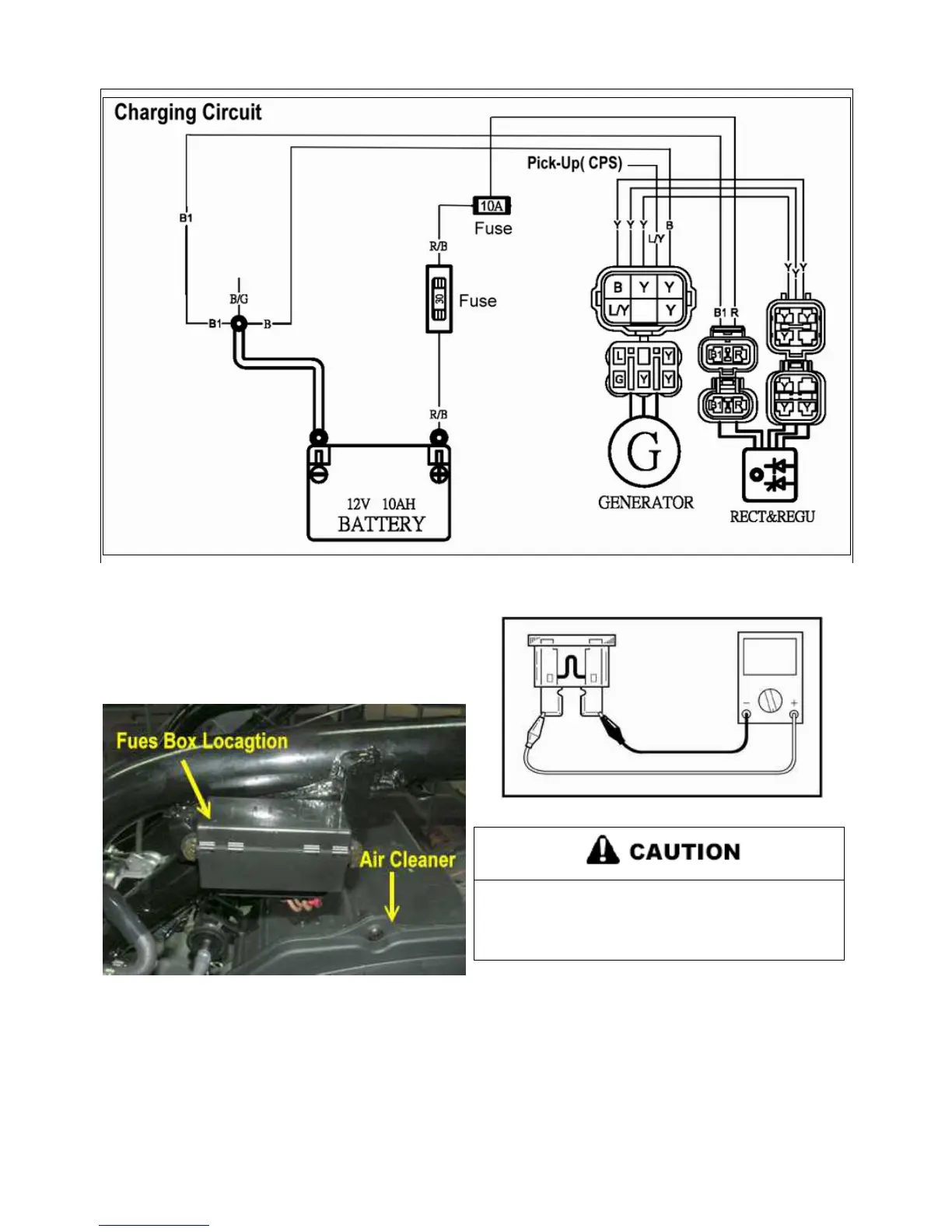

IF THE BATTERY IS NOT CHARGED FOLLOWING
PROCEDURE TO CHECKING.
◎
◎◎
◎ MAIN FUSE
1. The main fuse box is located in left panel and above air
cleaner which be fasten on left frame..
2. A 15 Amp fuse protects the main electrical system, a 30
Amp fuse protects charging system, two 10 Amp fuses
protects the light and EFI system, a 5 Amp fuse protects
ignition system.
3. Refer to “KEY/MAIN SWITCH” at above and ensure fuse
continuity. If broken, replace the fuse.
◎
◎◎
◎ CURRENT DRAW - KEY OFF
Do not connect or disconnect the battery cable or ammeter
with the engine running. Damage will occur to light bulbs and
speed limiter.
Connect an ammeter in series with the negative battery cable.
Check for current draw with the key off.
If the draw is excessive, loads should be disconnected from the
system one by one until the draw is eliminated. Check
component wiring as well as the component for partial shorts to
ground to eliminate the draw.
