Aeon 350cc User Manual

ELECTRONIC FUEL INJECTION
5-118
KWP DIAGNOSTIC TOOL
KWP Diagnostic Tool that transfer ECU diagnosis data to PDA or computer by K-Line. There are 7 majors mode to
monitor engine system failure.
1. Engine data
2. ECU version
3. Malfunction code
4. Malfunction history
5. Malfunction record
6. Freeze frame

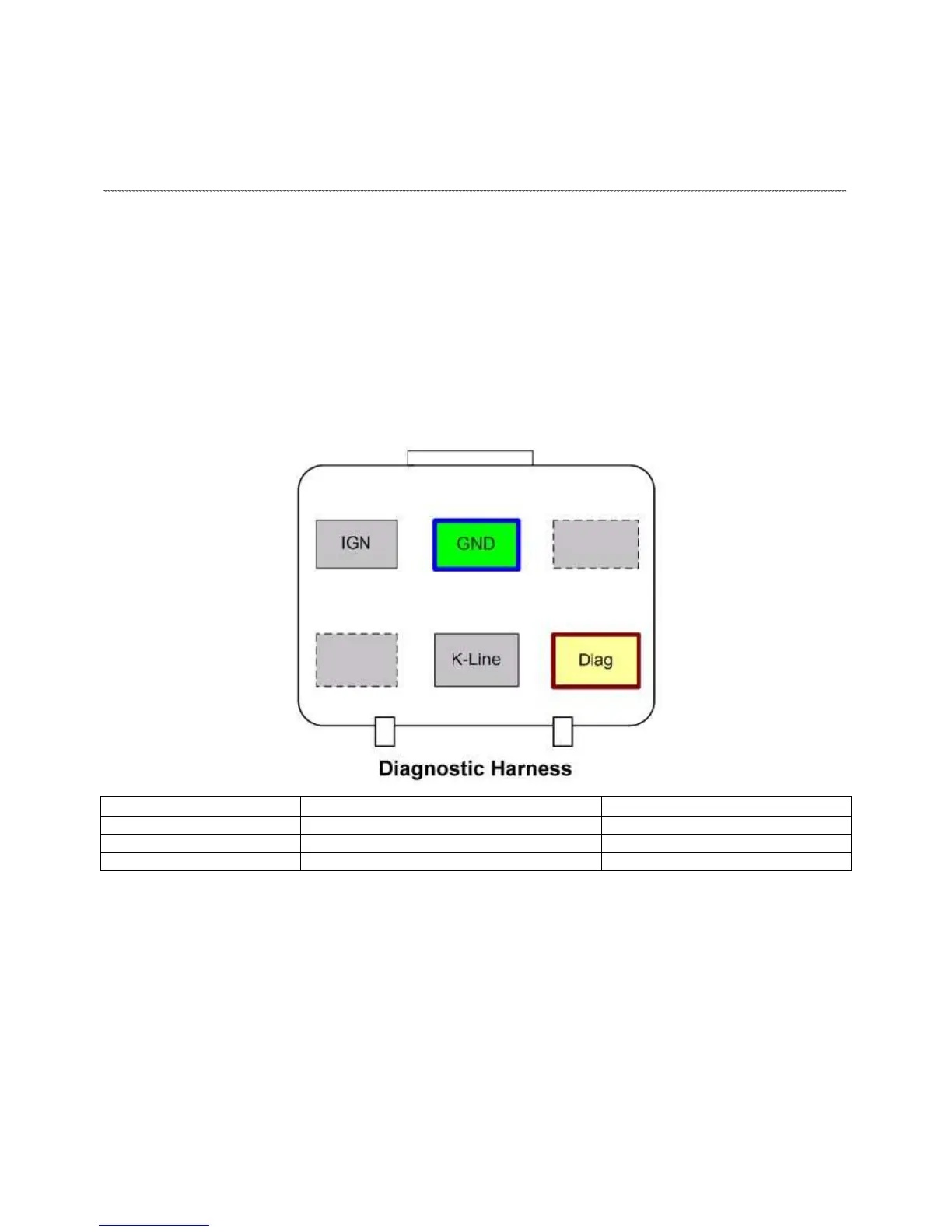

DIAGNOSTIC HARNESS
Terminal
Description
ECU Terminal
IGN Connect with ignition key switch Pin 8
GND Ground Pin 26
K-Line N/A Pin 2
