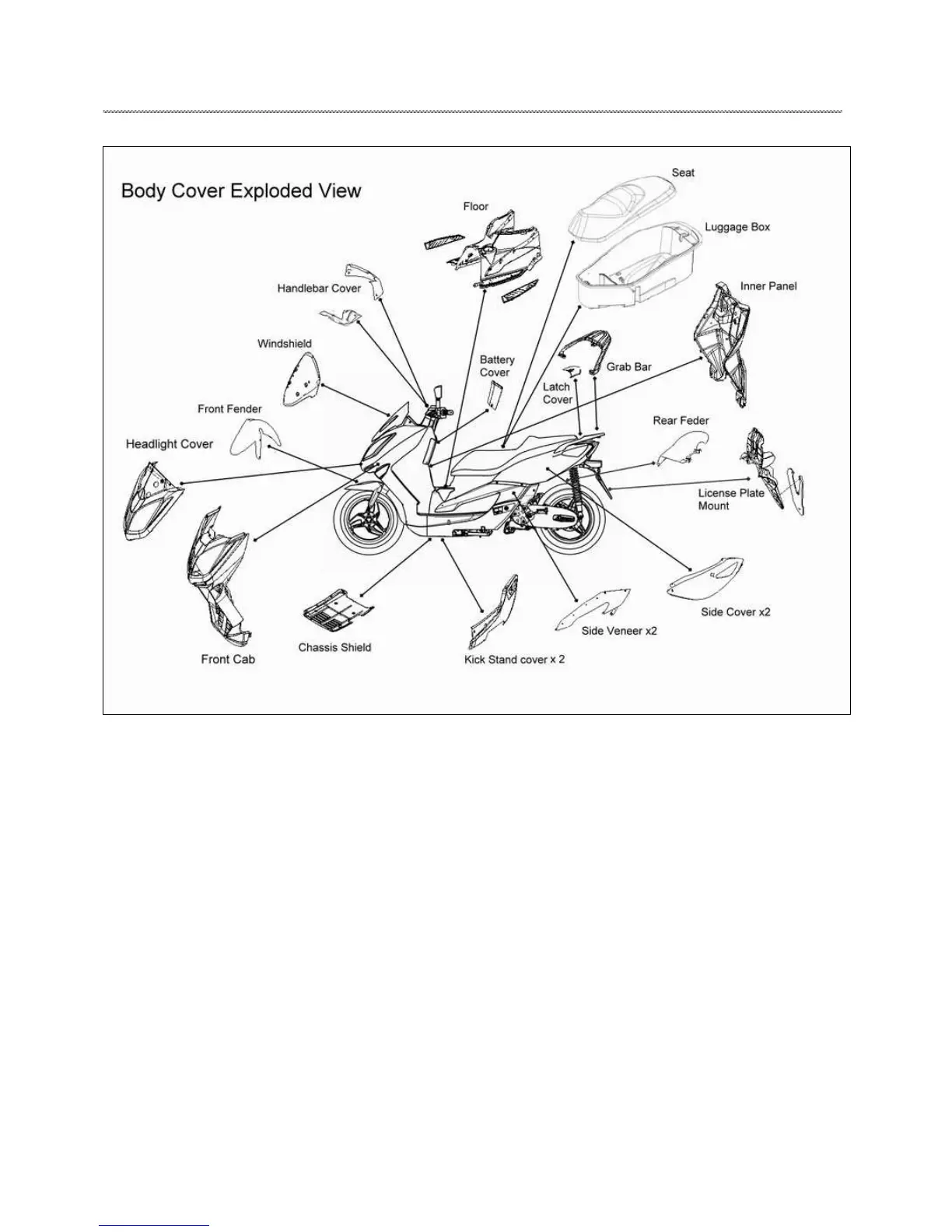

Aeon 350cc - Body Cover Exploded View

BODY FRAME
6-139
BODY COVER
Note:
◎ Be careful do not damage plastic covers while assembly or
disassembly operation.
◎ Never broken tongue or tab while assembly or disassembly
operation.
◎ Align all tongues and grooves of plastic cover first then
fasten screw or nut.
◎ Never compacting or hammer force on the all plastic
covers during assembly.
BODY COVER DISASSEMBLY PROCEDURE
1. Handlebar upper/bottom covers.
2. Windshield.
3. Front fender.
4. Headlight cover.
5. Speedometer cover.
6. Chassis shield.
7. Front cab.
8. Battery cover.
9. Both kickstand covers.
10. Seat and luggage box.
11. Grab bar
12. Latch Cover
13. License plate mount
14. Rear Fender
15. Both side covers.
16. Both side veneers.
17. Floors.
18. Inner panel.
