BRAKE MASTER CYLINDER
MASTER CYLINDER REMOVAL

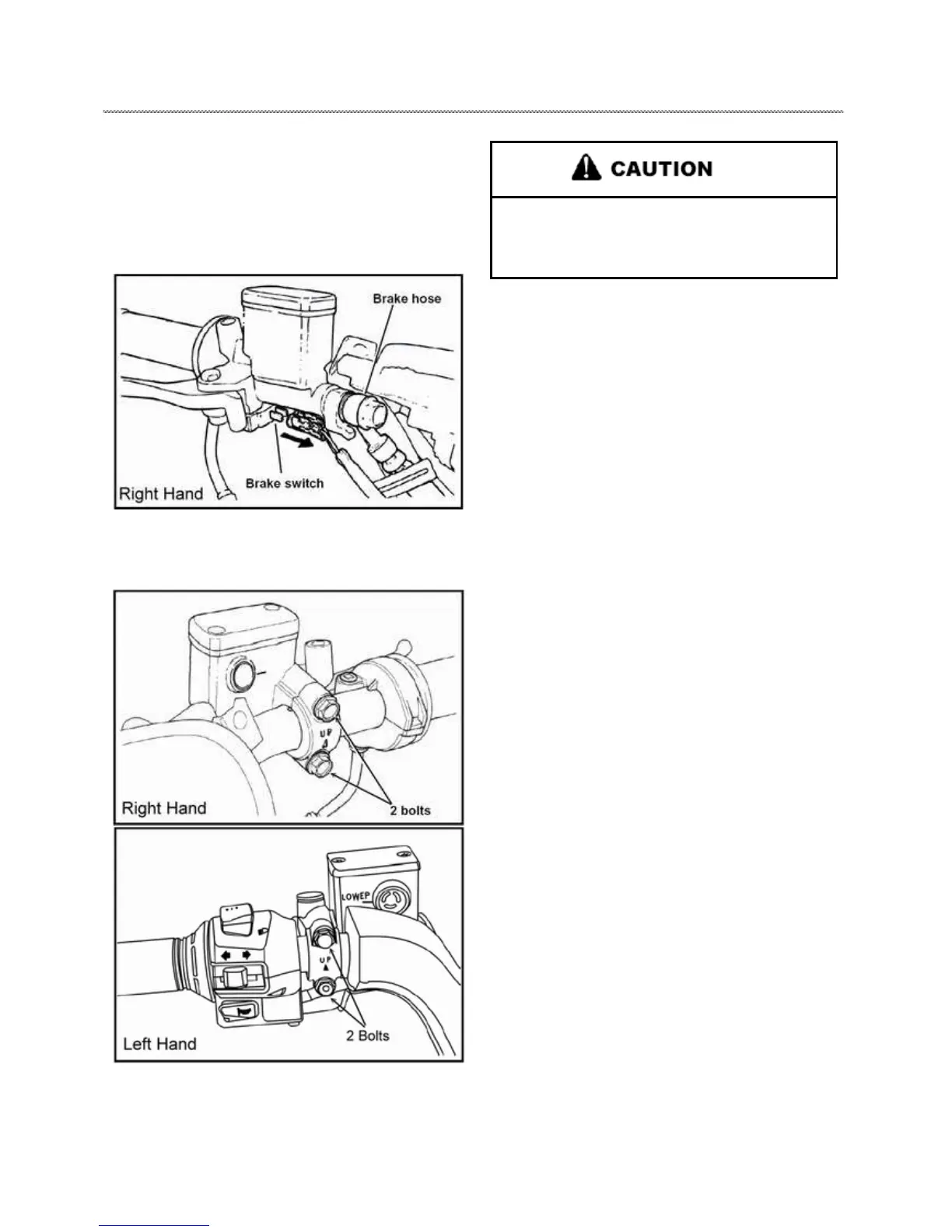

1. Remove the handlebar covers.
2. Disconnect both wires of brake light switch.
3. Place a container to catch brake fluid under the master
cylinder brake line banjo bolts. Drain out the brake fluid.
4. Remove the two mounting fastener bolts that secure the
master cylinder to the frame.
Brake fluid will damage finished surfaces.
Do not allow brake fluid to come in contact with
finished surfaces.
NOTE: Make note of front and rear brake line
locations to master cylinder.
5. Loosen the brake line banjo bolts and allow fluid to drain.
NOTE: Dispose of fluid properly. Do not re-use.
INSTALLATION
1. Reverse Steps 1-5 for master cylinder installation.
Refer to the torque specifications in the illustration.
2. Connect brake hoses with 2 new copper washers.
3. After installing the brake lever check lever free play.
Brake Lever free play should be around .090” (2.286 mm).
