MAINTENANCE
2-28

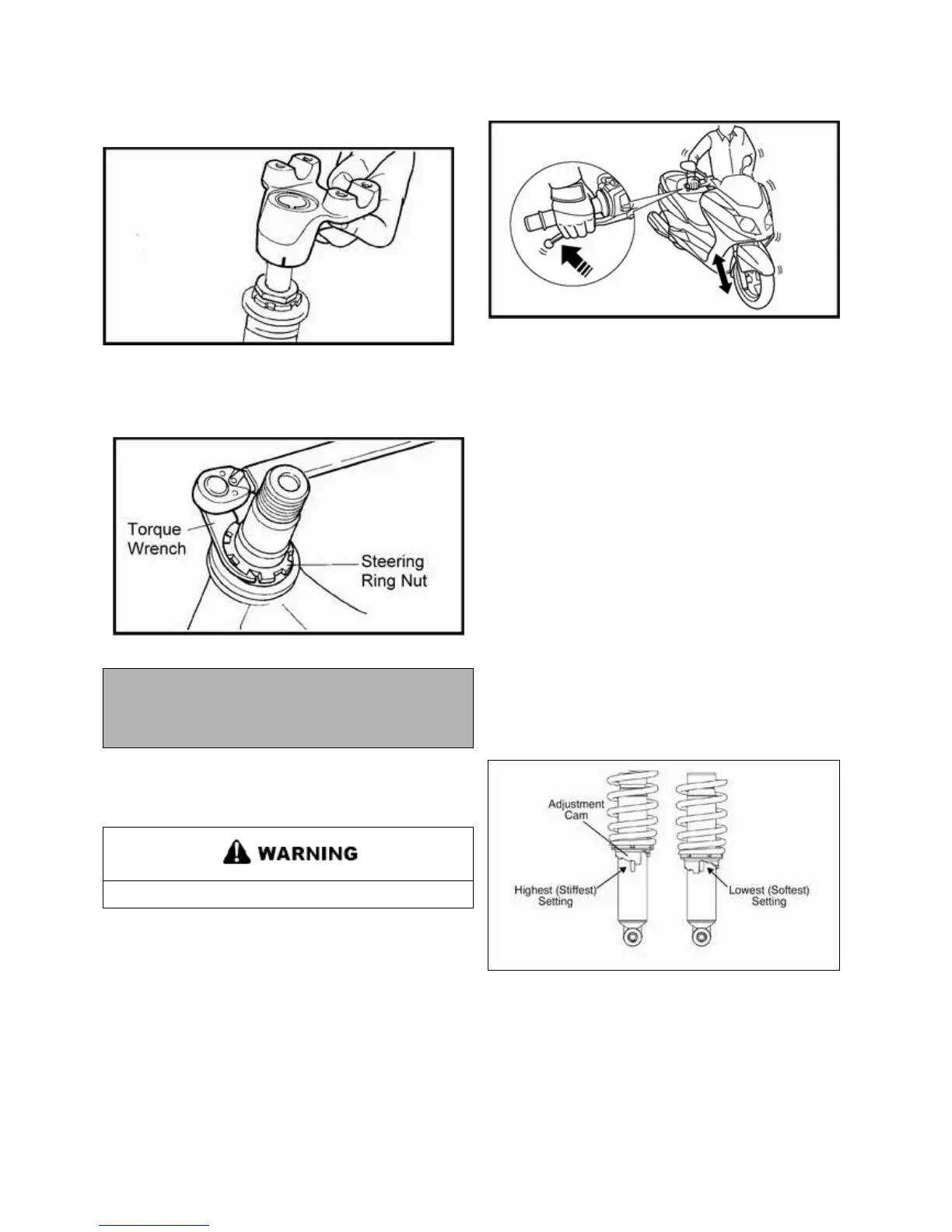

5. Remove handlebar lower clamp away.
6. Remove upper lock ring nut.
7. Loosen the lower steering ring nut and then tighten it to
specification with the steering nut wrench.
Steering Ring nut specification torque:
36 Nm (3.6 m · kg, 25 ft · lb)
Then LOOSEN the lower steering ring nut 1/4 turn.
8. Tighten the upper lock ring nut to 90Nm.
9. Ensure can lightly turn the handlebar left and right to end.
Do not over tighten the lower steering ring nut.
FRONT FORK
1. Stand the scooter on a level surface.
2. Inspect front fork inner tube damage, crack or oil leakage at
oil seal. If necessary, replace it.
3. Hold the scooter upright and apply the front brake.
Push down hard on the handlebar several times and check if
the front fork rebounds smoothly.
4. If front fork rough movement, repair or replace it.
REAR SHOCK PRELOAD ADJUSTMENT
The rear shock absorber springs are adjustable by rotating the
adjustment cam to change spring tension preload.
Suspension Spring Adjustment
1. Position the scooter on a level surface.
2. Stop the engine.
3. Raise and safely support the rear of the scooter off the
ground to allow the suspension to fully extend.
NOTE: The tires should not be touching the ground.
4. To adjust the suspension, use the adjustment cam located
near the bottom of the shock.
5. Rotate the adjustment cam clockwise to increase spring
tension or counter-clockwise to decrease spring tension.
6. Each notch of the adjustment will add 6% - 8% more
preload to the spring over the primary position.
