ELECTRONIC FUEL INJECTION
5-116

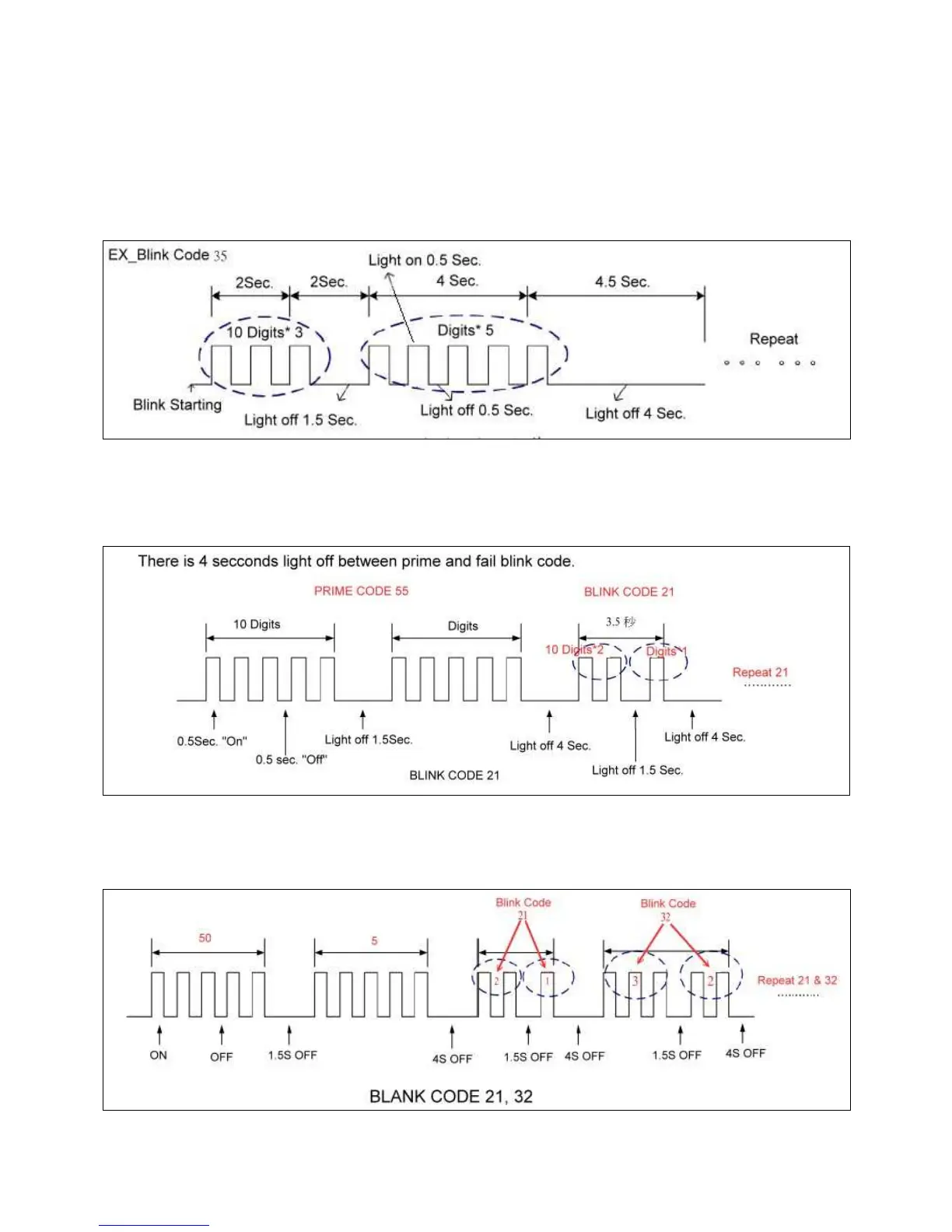

BLINK CODE BREAKOUT DIAGRAMS
BLINK CODE RECOGNITION
The blink code is 10 digits numbers. The blink light location on left of the speedometer display screen as show above.
For example while Blink Code 35. The blink light stat twinkling 3 times then light off for 1.5 seconds and twinkling 5 times.
PRIME CODE
Every diagnostic by blink code there is a prime code showing before fail blink code. The prime code is always “55” which set
in factory. For example if blink code shows as number 21. The blink code should be like below.
MORE THAN 1 FAILS BLINK CODE
If there are two fail blink codes like 21 and 32. The light should twinkle prime code “55” first than “21” and “32”. Cycle repeat
just “21” and “32”. Shows as below.
