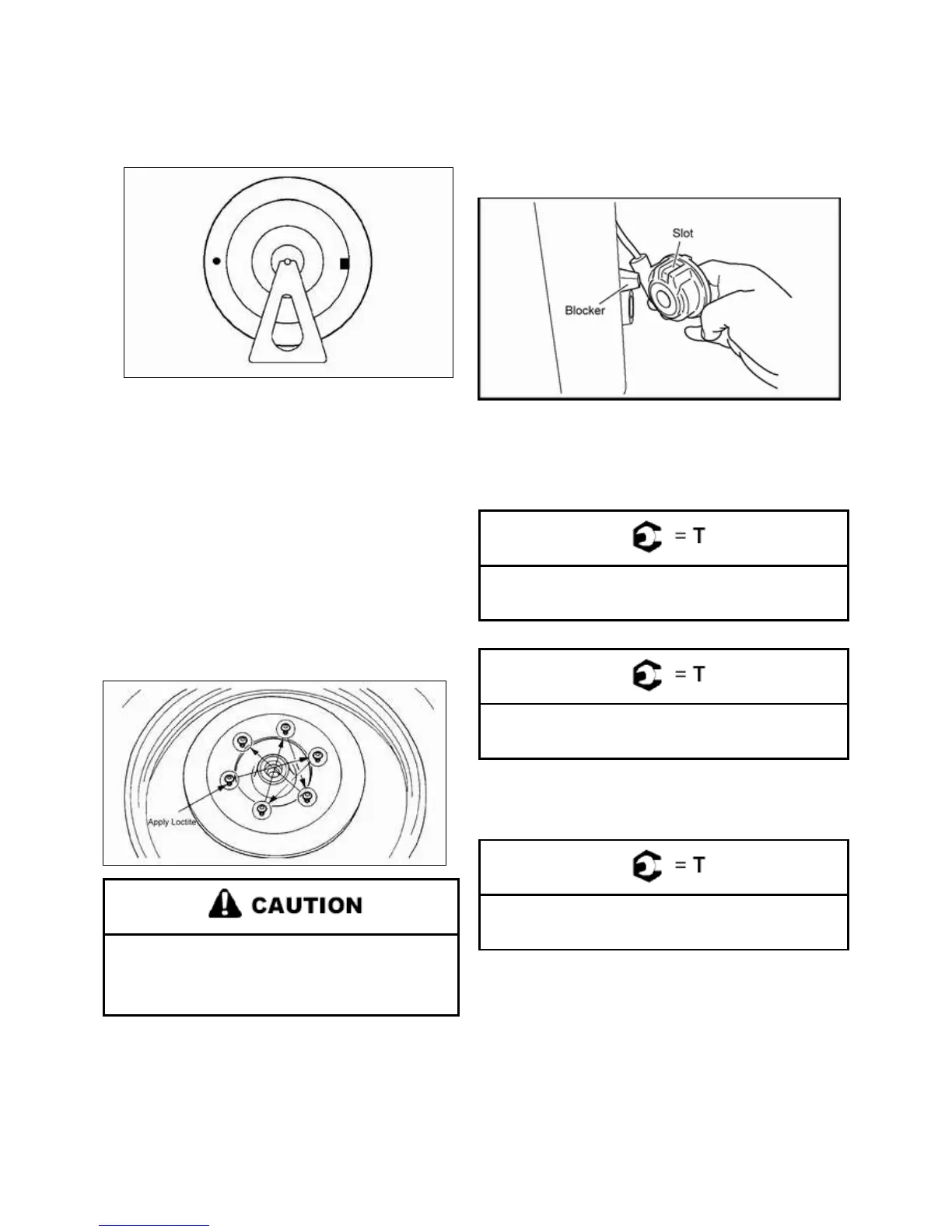

9. Turn the front wheel 90° that the heavy spot is positioned as
shown.
10. Release the front wheel if the heavy spot does not stay in
that position, install a heavier weight.
11. Repeat steps 9 and 10 until the front wheel is balanced.
12. Turn the front wheel and make sure it stays at each position
without any one heavy point.
FRONT WHEEL INSTALLATION
1. Clean the wheel hub mating surface and install new disc on
wheel hub.
2. Install new bolts and tighten disc bolts
by
crisscross pattern
then torque to 30 Nm.
Always use new brake disc mounting bolts. The
bolts have a pre-applied locking agent, which is
destroyed upon removal.
3. Lubricate oil seal lips, speed sensor, spacer and wheel axle
by Lithium-base grease.
4. Install wheel onto front fork.
Note:
Ensure the slot in the speed sensor fits over the
blocker on the outer tube.
5. Before fully tightening the wheel axle, push down hard on
the handlebar several times and check if the front fork
rebounds smoothly.
6. Tighten front wheel axle and front wheel axle pinch bolt
Front Wheel Nut Torque:
55 Nm (40 ft. lbs)
Pinch Bolt Torque:
20 Nm (14.5 ft. lbs.)
7. Install front brake calipers ensure the brake cable is routed
properly.
Front caliper Bolt Torque:
30 Nm (21.7 ft. lbs.)
