RPM LIMITER SPECIFICATIONS
NOTE: The Scooter is limited through the ECU box
located on the right frame under the seat. In
forward, the ECU reads the RPM’s from the stator.
The ECU acts as a limiter when the peak RPM is
met.

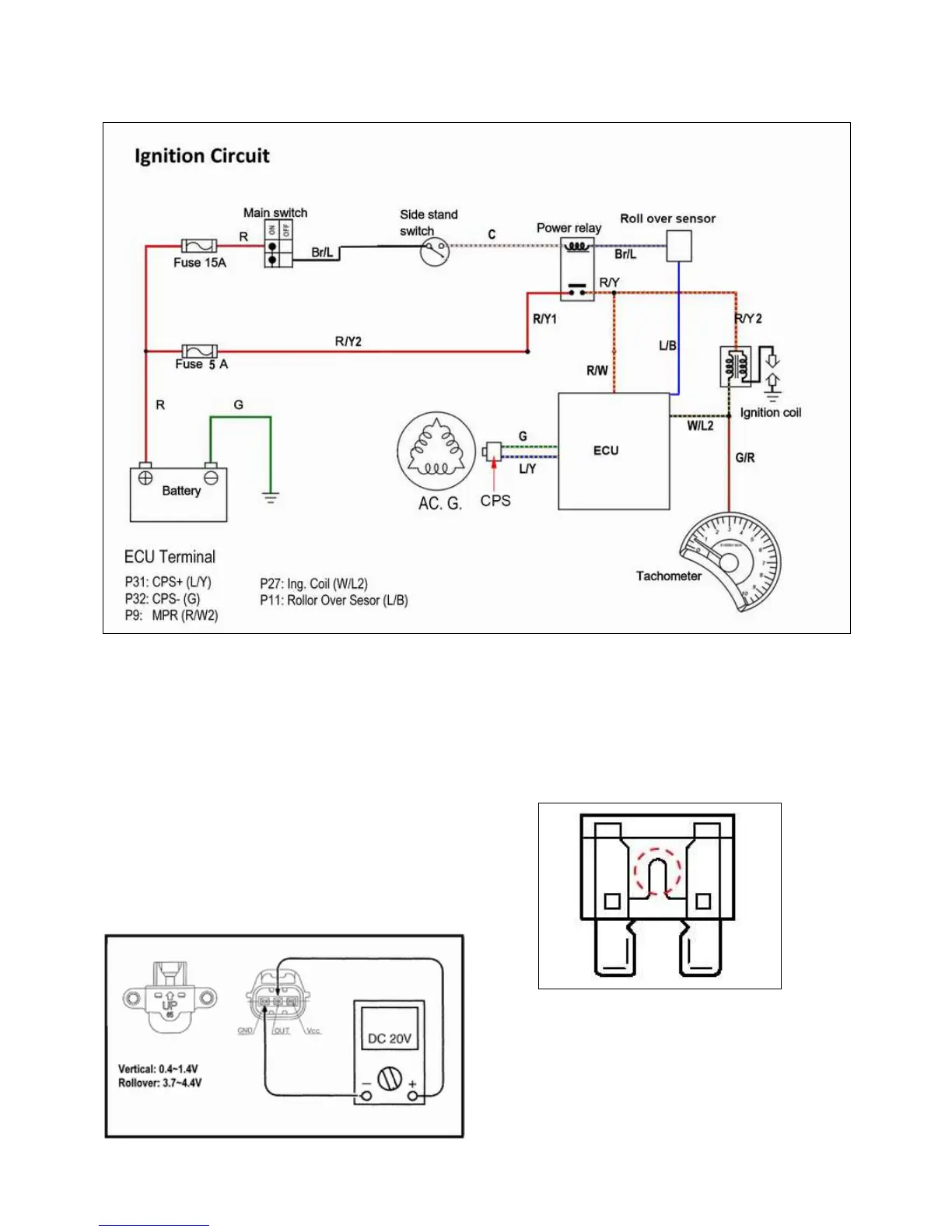

IF THE IGNITION SYSTEM FAILS TO OPERATE (NO
SPARK OR INTERMITTENT SPARK) FOLLOWING
PROCEDURE TO CHECKING.
◎
◎◎
◎ Rollover Switch
Check the rollover switch output voltage. The normal voltage should be
0.4~1.4V. If rollover condition voltage should be reaching 3.7~4.4V.
◎
◎◎
◎ FUSE
Ensure fuse continuity. If broken, replace the fuse.
◎
◎◎
◎ BATTERY
Check the battery condition. The open-circuit voltage should be
12.8 V or more at 20 °C (68 °F).
If battery less than 11.8V inspect regulator and stator, recharge
or replace the battery.
