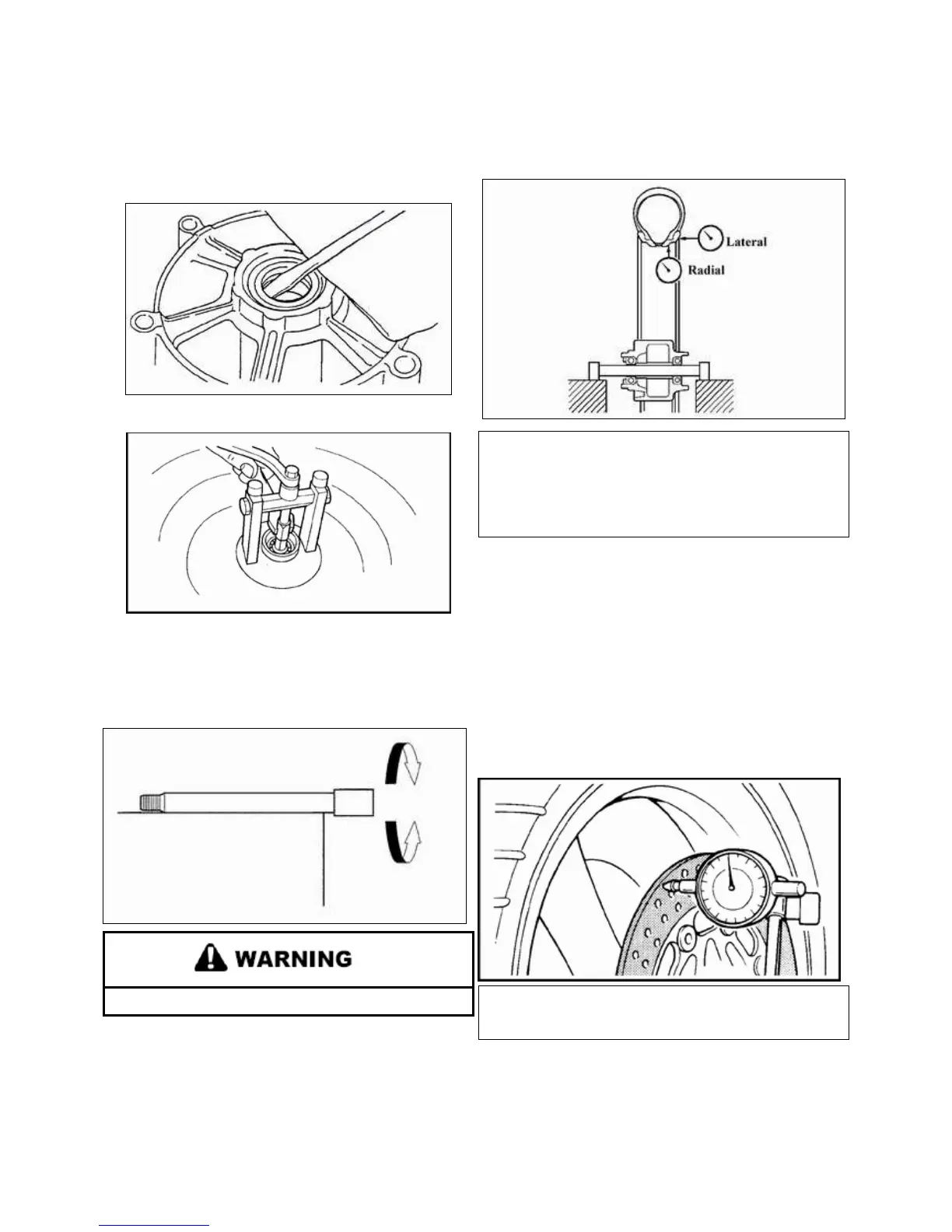

3. Remove the oil seal by a slot screwdriver.
4. To prevent damaging the wheel, place a rag between the
screwdriver and the wheel surface.
4. Remove the wheel bearings with a general bearing puller.
FRONT WHEEL INSPECTION
1. Inspect the wheel axle. Roll the wheel axle on a flat surface.
Replace if worn or rough movement. Discard hardware.
Do not attempt to straighten a bent wheel axle.
2. Inspect front tire and wheel radial or lateral run-out by dial
gauge. Replace if out of specification.
Front Wheel Lateral Limit:
2.00mm
Front Wheel Radial Limit:
3.00mm
FRONT BRAKE DISC INSPECTION
1. Place the wheel with disc on a suitable stage. Or install back
front fork and elevated front end.
2. Hold the dial gauge at a right angle against the brake disc
surface.
3. Mount a dial indicator and measure disc run-out. Slowly
rotate the disc and read total run-out on the dial indicator.
Replace the disc if run-out exceeds specifications.
Front Brake disc deflection limit
0.30 mm
