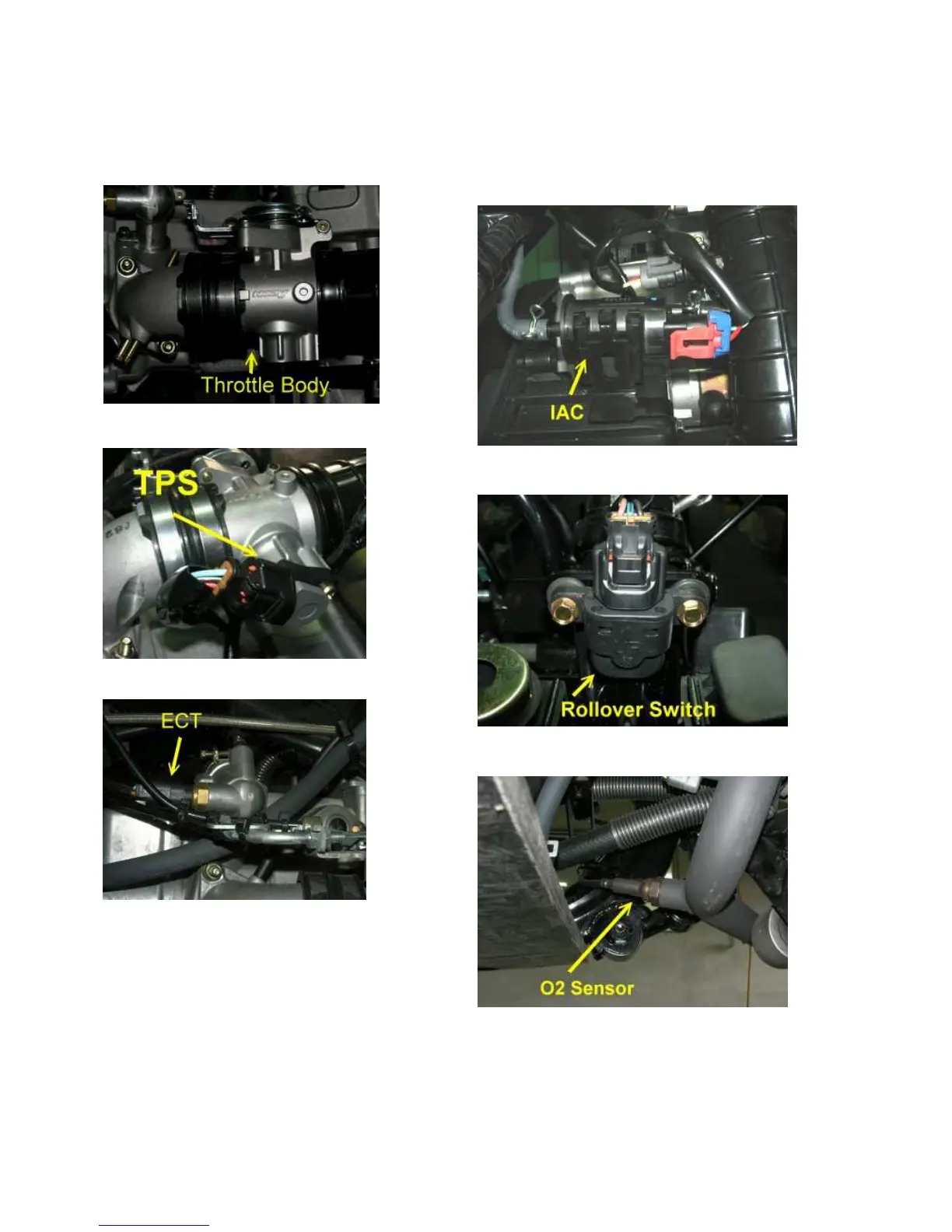

7. Throttle Body
Located between the rubber air box boot and the manifold.
8. Throttle Position Sensor (TPS)
Located on the right-hand side of the throttle body.
9. Engine Coolant Temperature Sensor (ECT)
Located in the cylinder head next to the thermostat housing.
10. Ignition Coil
Located under the storage box and fastened at left of frame.
11. Idle Air Control Valve
Located in the rubber intake boot between the air box and
throttle body.
12.Rollover sensor
Located in front of middle handlebar.
13. O2 Sensor
Located in front exhaust pipe elbow.
