ELECTRONIC FUEL INJECTION
5-101

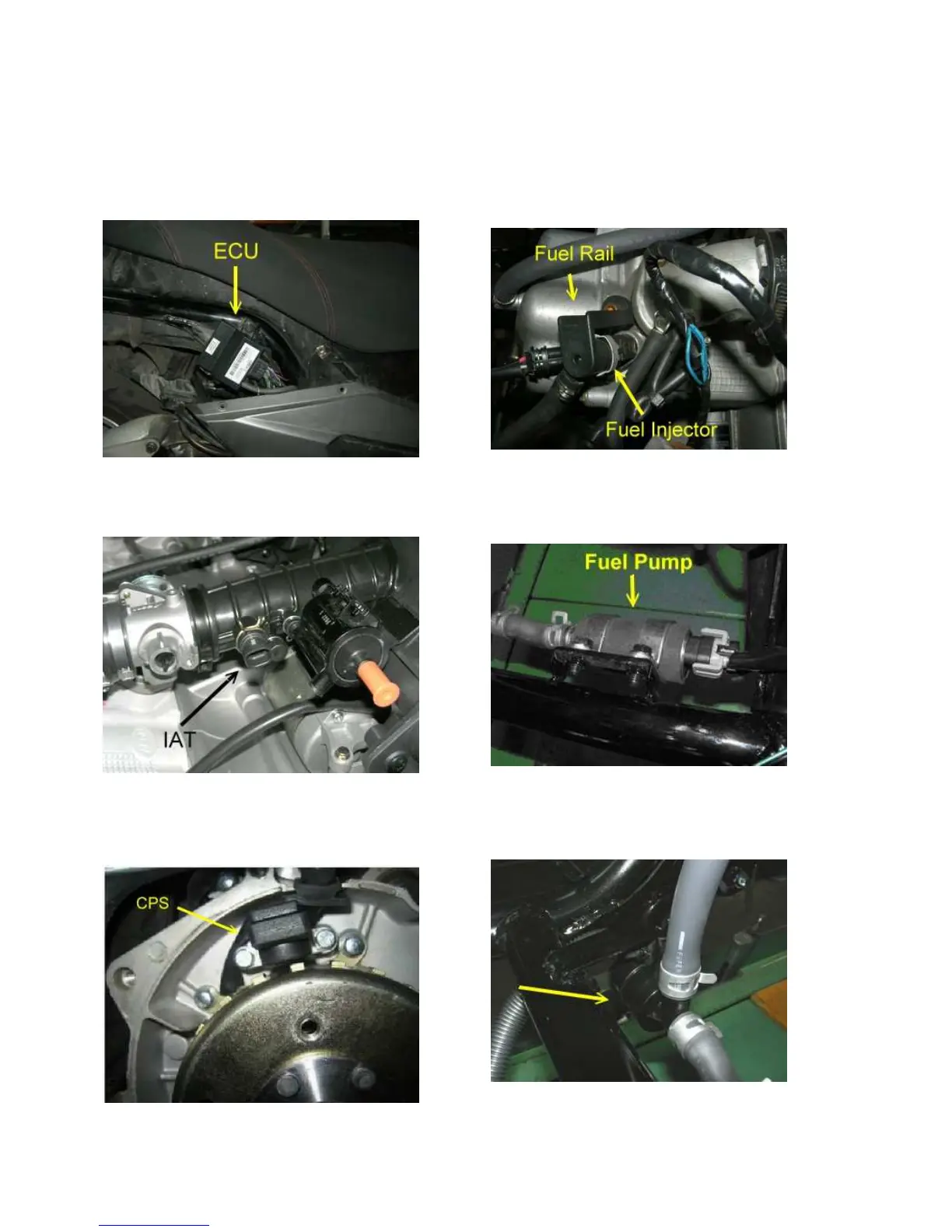

EFI SYSTEM COMPOMENT LOCATIONS
1. Electronic Control Unit (ECU)
Located bottom of the seat right side attaching on mainframe.
2. Intake Air Temperature (IAT)
Located in the rubber intake boot between the air box and
throttle
body.
3. Crankshaft Position Sensor (CPS)
Located in the magneto cover between the engine and
transmission.
4. Fuel Injectors / Fuel Rail
Attached to the fuel rail located in the intake track of the
cylinder head.
5. Fuel Pump
Located bottom of the frame behind the fuel tank and next
the relief valve.
6. Fuel Pump Regulator
Located bottom of the frame behind the fuel tank and next
the fuel pump.
