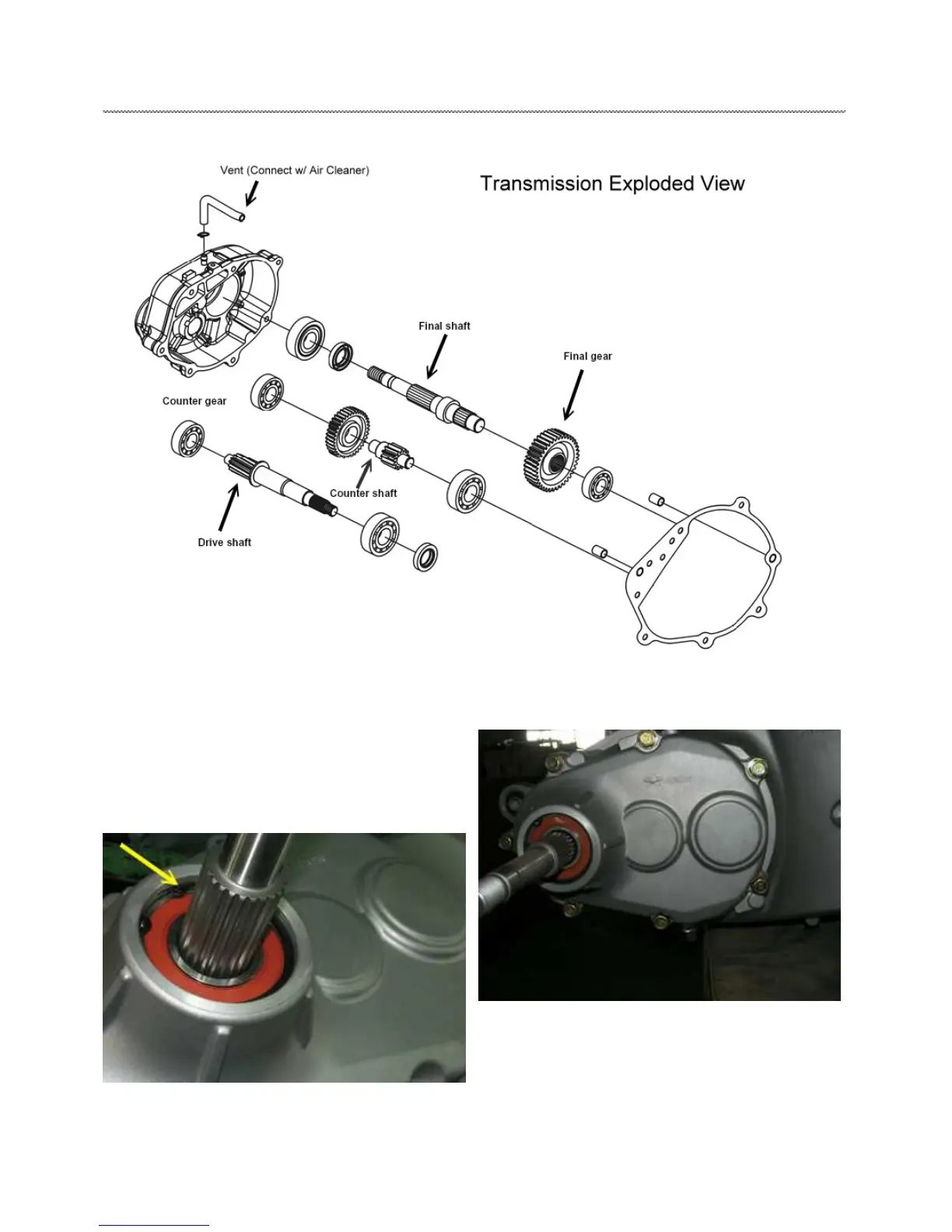

Aeon 350cc - Transmission Disassembly; Transmission Exploded View

ENGINE
4-93
TRANSMISSION
TRANSMISSION DISASSEMBLY
NOTE: Engine removal is not required to service
1. Remove the rear wheel.
2. Drain out gear oil from gearbox.
3. Remove cir-clip of gearbox cover.
4. Loosen 7 bolts and remove gearbox cover.
