This refers to the digitized value according changes of engine temperature. The value will be 0 the sensor or its circuitry is
short to ground, and will be 255 if open or short to power.
BLMCellNum (BLM CELL NUMBER)
This refers to the memory address of engine under various rpm and throttle position.

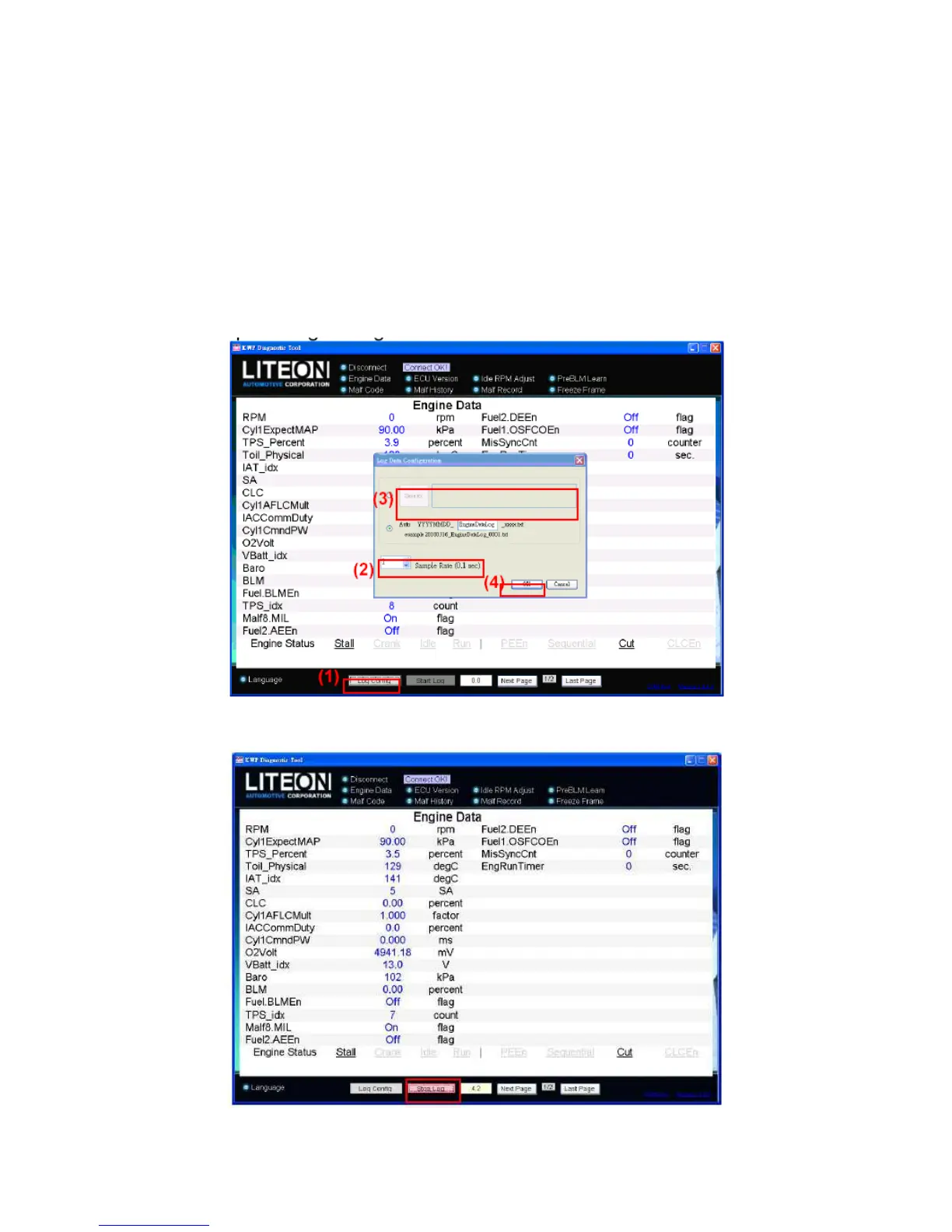

RECORDING OF ENGINE OPERATION PARAMETERS
The procedure of the engine operation parameters are : (1) press “Log Config”; (2) Choose “Sampling Rate”(Period); (3)
set up “Save to” and the default will be C:\Program Files\KWP TOOLS\ DiagTool\Log) if no route being set; (4) press
“OK” to complete Log-Config.
System will start logging engine parameters and display recording timer. Press“Stop Log” after the completion of
recording.
