ENGINE
4-55
12. Remove the following parts as required.
◎ Storage box.
◎ Left and Right Side Covers.
◎ Rear shocks.
13. Remove exhaust pipe; there are 3 bolt on swing arm and 2
bolts on cylinder.
14. Lift up the rear tire before remove engine mount
.

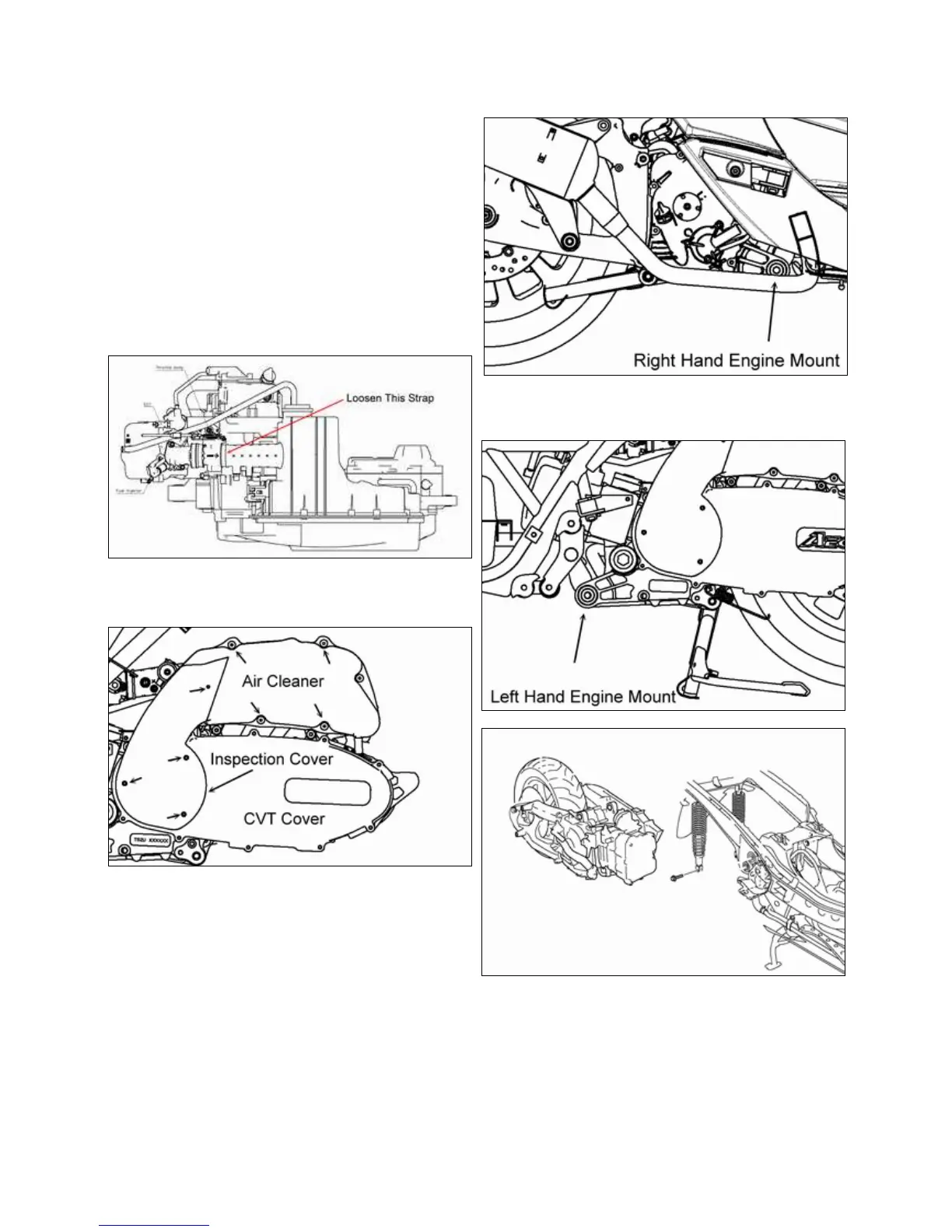

15. Loosen the strap, which between throttle body and air
cleaner intake boot. Insert a clean shop towel into the
carburetor flange to prevent dirt from entering the intake port.
16. Remove transmission inspection cover and air box.
17. Remove Starter motor ground cable. Note ground cable
location. Mark positive (+) cable mounting location.
18. Remove engine to chassis ground cable.
19. Remove all engine mount nuts and shafts.
20. Remove engine with rear wheel as an assembly toward rear
side of frame.
RIGHT HAND ENGINE MOUNT
To Next Page
