MAINTENANCE
2-21
TRANSMISSION CASES

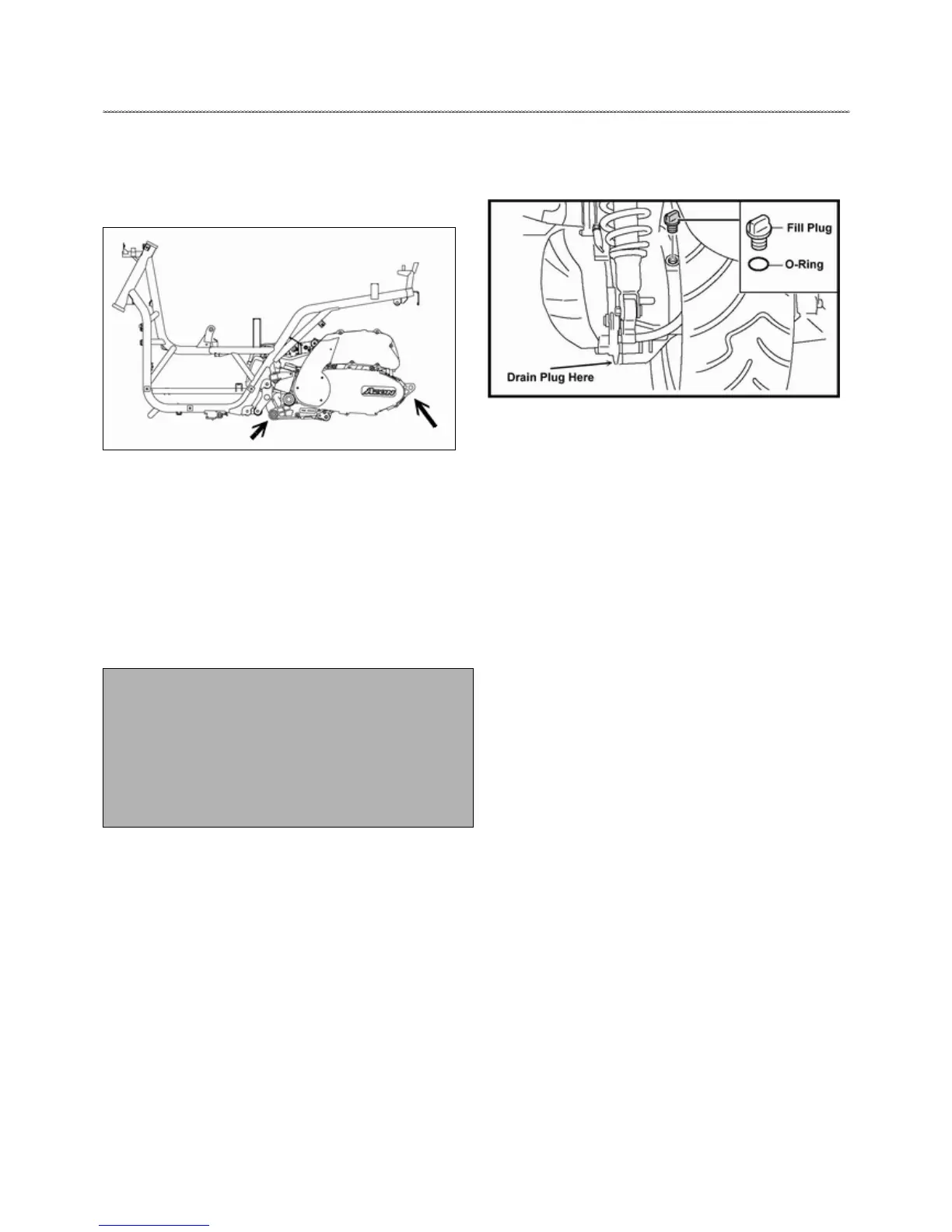

ENGINE MOUNT LOCATIONS
Periodically inspect engine and transmission mounts for cracks
or damage.
TRANSMISSION LUBRICATION
NOTE: It is important to follow the transmission and
gear case maintenance intervals described in the
Periodic Maintenance Chart. Regular fluid level
inspections on these components should be
performed as well.
Transmission Specifications
Specified Lubricant:
Gear case Lubricant: SAE 80W-90
Approximate Capacity at Change: 200ml
Drain Plug Torque: 60 Nm (44 ft. lbs.)
Fill Plug Torque: 5 Nm (45 in. lbs.)
The transmission lubricant levels should be checked and
changed in accordance with the maintenance schedule.
1. Be sure vehicle is positioned on a level surface when
checking or changing fluid.
2. Check vent hose to be sure it is routed properly and
unobstructed.
TRANSMISSION LUBRICANT CHANGE：
：：
：
1. Remove the fill plug.
2. Place a drain pan under the main drain plug.
3. Remove the drain plug and allow draining completely.
4. Clean the drain plug.
5. Reinstall the drain plug with a new o-ring and torque to
60 Nm (44 ft. lbs.).
6. Add the recommended fluid through the fill plughole.
Maintain the fluid level at the bottom of the fill plughole when
filling the gear oil. Do not overfill.
7. Reinstall the fill plug and torque to 5 Nm (45 in-lbs.).
8. Check for leaks. Discard the used lubricant properly.
9. Reinstall the filler.
10. Start the engine. Allow it to idle for one to two minutes.
11. Stop the engine and inspect for leaks.
