ELECTRONIC FUEL INJECTION
5-120

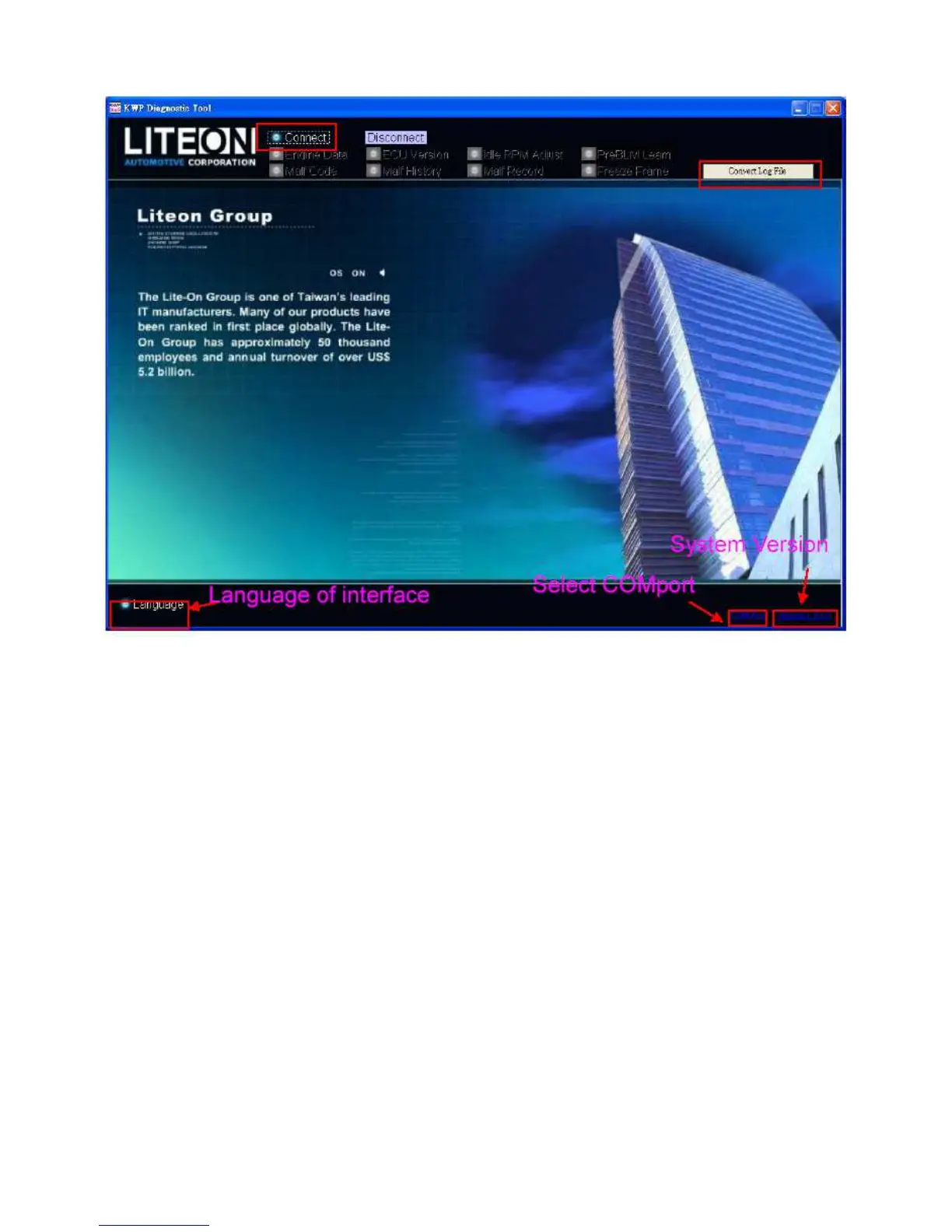

2 Eight options includin
g
“
Engi
ne Data
”
,
“
ECU Version
”
,
“
Idle RPM Adjust
”
,
“
PreBLM
Learn
”
,
“
Malf Code
”
,
“
Malf Hi
story
”
,
“
Malf Reco
rd
”
and
“
Freeze Frame
”
wil
l be shown
after pressing
“
Start Con
nection
”
119
121
